01550430ZXU
| Manufacturer | |
| Description | Fuse Holders ATO INLINE UNASSMBLD ACS INLINE FUSEHLDR UNASSEMBLED FUSE HLDR BLADE 32V 30A PNL MNT FUSE HOLDER, IN LINE Fuse Holder ATO INLINE UNASSMBLD |
| Category |
Business
| MOQ | 1 | Product | Fuse Holders |
| Unit Pack | 0 | Part # Aliases | 155430U |
| Product Category | Fuse Holders | Standard Package | 2,000 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369085 |
Electrical
| Voltage | 32V | Voltage Rating | 32 V |
| Number of Poles | 1 | Voltage - Rated AC | :32V |
| Current Rating (Max) | 30 A | Contact Voltage (Max) | :32V |
| Load Side Connections Per Pole | :Wire Leaded | ||
Mechanical
| Color | Black | Weight | 0 |
| Packaging | Bulk | Mounting Type | Panel Mount |
| Contact Finish | Tin | Mounting Style | In-Line |
| Fuseholder Type | Holder | Contact Material | Brass |
| Termination Style | Wire Leads | ||
Product Info
| Series | 155 | Fuse Size | 0.75" L x 0.2" W x 0.74" H (19.1mm x 5.1mm x 18.8mm) |
| Fuse Type | Blade | Illumination | No |
| Number of Circuits | 1 | Number of Batteries Included | :1 |
| For Use With/Related Products | ATC, ATO | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
Documents & Media
Similar Parts
0257001.PXPV
Littelfuse
Fuses 32V 1A Fuse Blade Fast Acting 1A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 1A 32V ATO FAST Fuse;Automotive;FastActing;1A;Supplemental;Dims0.75x0.2x0.73";Blade;32VDC Automotive fuse ATO 1 A 32 VDC black, 0257001.PXPV, Littelfuse
0257020.PXPV
Littelfuse
Fuses 32V 20A Fuse Blade Fast Acting 20A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 20A 32V ATO FAST-ACT FUSE, ATO, 20A Fuse;Automotive;FastActing;20A;Supplemental;Dims0.75x0.2x0.73";Blade;32VDC Automotive fuse ATO 20 A 32 VDC yellow, 0257020.PXPV, Littelfuse
0257015.PXPV
Littelfuse
Fuses 32V 15A FUSE BLADE 15A 32V ATO FAST-ACT FUSE, ATO, 15A 15A32VATOFUSEW/VISION Automotive fuse ATO 15 A 32 VDC blue, 0257015.PXPV, Littelfuse
0257005.PXPV
Littelfuse
Fuses 32V 5A Fuse Blade Fast Acting 5A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 5A 32V ATO FAST-ACT FUSE, ATO, 5A, 32V, FAST ACTING 5A32VATOFUSEW/VISION Automotive fuse ATO 5 A 32 VDC beige, 0257005.PXPV, Littelfuse

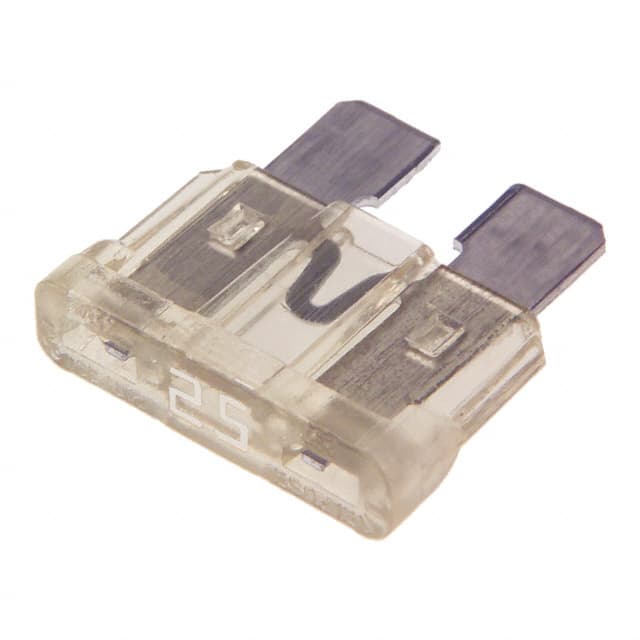

0257025.PXPV
Littelfuse
Fuses 32V 25A Fuse Blade Fast Acting 25A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 25A 32V ATO FAST-ACT FUSE, ATO, 25A 25A32VATOFUSEW/VISIONAUTO-LCD Automotive fuse ATO 25 A 32 VDC clear, 0257025.PXPV, Littelfuse
0257004.PXPV
Littelfuse
Fuses 32V 4A Fuse Blade Fast Acting 4A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 4A 32V ATO FAST-ACT FUSE, BLADE, 4A, 32V 4A32VATOFUSEW/VISIONAUTO-LCD Automotive fuse ATO 4 A 32 VDC pink, 0257004.PXPV, Littelfuse
0257003.PXPV
Littelfuse
Fuses 32V 3A 3A 32V AUTO ATO violet FUSE BLADE 3A 32V ATO FAST-ACT 3A32VATOFUSEW/VISION Automotive fuse ATO 3 A 32 VDC violet, 0257003.PXPV, Littelfuse
0257002.PXPV
Littelfuse
Fuses 32V 2A Fuse Blade Fast Acting 2A 32V Socket 19.05 X 5.08 X 12.19mm FUSE BLADE 2A 32V ATO FAST FUSE, ATO, 2A 2A32VATOFUSEW/VISION Automotive fuse ATO 2 A 32 VDC grey, 0257002.PXPV, Littelfuse

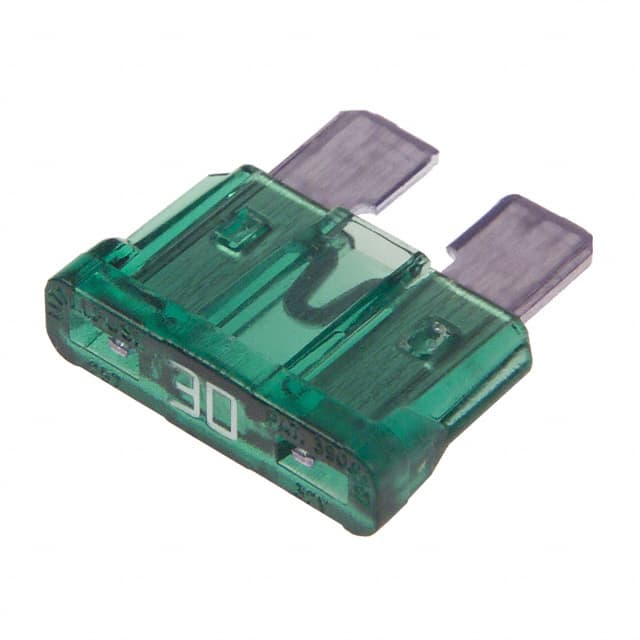

0257030.PXPV
