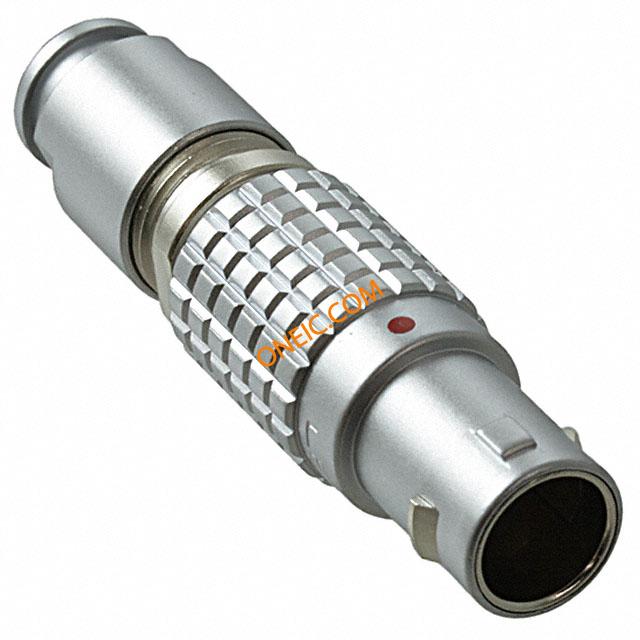

FGG.1B.308.CLAD62Z
| Manufacturer | |
| Description | Circular Push Pull Connectors STRAIGHT PLUG MALE W. CABLE COLLET CONN INLINE PLUG 8PIN SLD CUP 8 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, 1B, 8WAY 8POLEIBSTRAIGHTPLUG Plug; Connector: circular; 1B; male; PIN:8; 5A; 1.15kV; for cable Lemo 1B 系列 8路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Circular |
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage - Test | 1.15kV | Voltage Rating | :600V |
| Contact Resistance | :5.6mohm | Dielectric Strength | :19V/m |
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.016 | Packaging | Bulk |
| Shell Size | 1 | Orientation | G |
| Shell Style | Plug | Termination | Solder Cup |
| Weight (g): | 44.00000 | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Chrome | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Plating - Body | :Nickel |
| Shell Material | Metal | Insertion Angle | :- |
| Material - Body | :Brass | Contact Material | Brass |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | Male | Number of Contacts | 8 |
| Contact Termination | :Solder | Number of Positions | 8 |
| Shell Size - Insert | 308 | Shell Material, Finish | Brass, Chrome Plated |
| Contact Material - Mating | :Bronze | 1st Connector Mounting Type | :Cable |
| Contact Finish - Post (Mating) | :Gold | ||
Product Info
| Gender | Male | Series | B |
| Features | Shielded | Product Type | Connectors |
| Adapter Series | 1B | Number of Units | 1 |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
Similar Parts

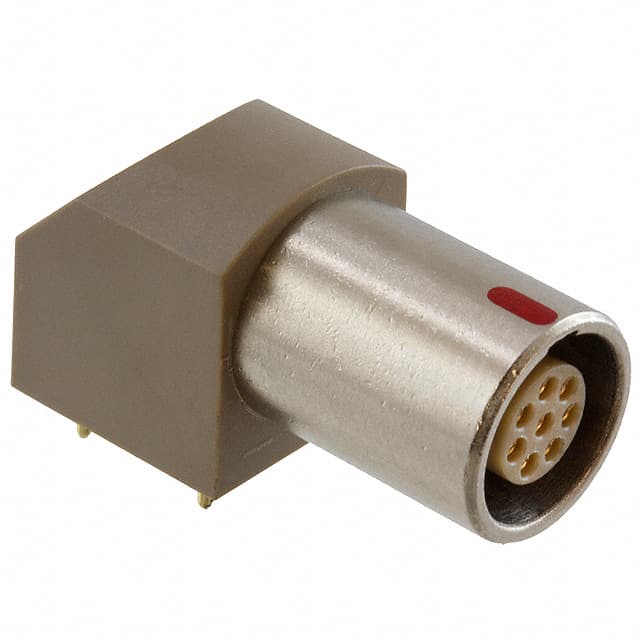

EPG.1B.308.HLN
LEMO
Circular Push Pull Connectors RECPT 900F.PCB 8 CTS CONN R/A PCB RCPT 8SKT SOCKET, R/A, PCB, 1B, 8WAY

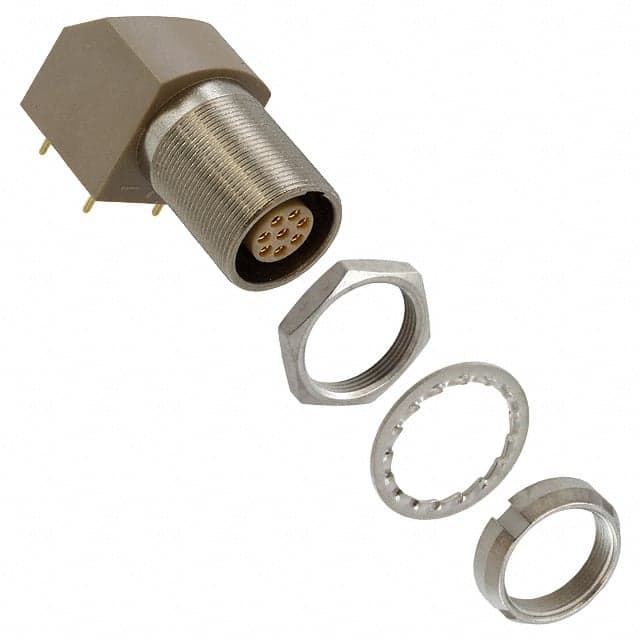

EXG.1B.308.HLN
