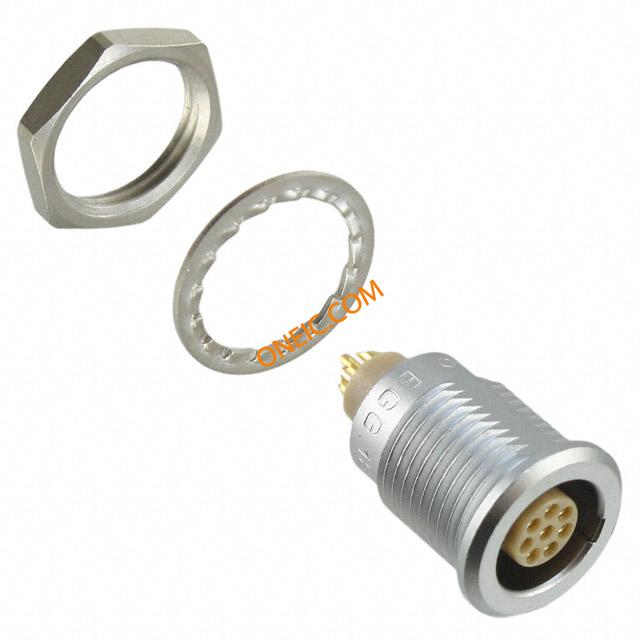

EGG.1B.308.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 1 8-PIN FEMALE SLDR CONN PNL MNT RCPT 8SKT SLD CUP 8 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, PANEL MOUNT, 1B, 8WAY 8POLE1BPANELMOUNTSKT Device socket, B-series 8-pin Poles=8, EGG.1B.308.CLL, Lemo Lemo 1B 系列 8路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | :600V | Contact Resistance | :5.3mohm |
| Dielectric Strength | :19V/m | Current Rating (Max) | 5A |
Mechanical
| Weight | 0.009 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Weight (g): | 52.80000 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Plating - Body | :Nickel |
| Insertion Angle | :308 | Material - Body | :Brass |
| Contact Material | :Bronze | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 8 |
| Contact Termination | :Solder | Number of Positions | 8 |
| Shell Size - Insert | 308 | Shell Material, Finish | Brass, Chrome Plated |
| Contact Material - Mating | :Bronze | 1st Connector Mounting Type | :Panel |
| Contact Finish - Post (Mating) | :Gold | ||
Product Info
| Gender | Female | Series | B |
| Features | Shielded | Product Type | Connectors |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
