FFA.1S.275.CTAC32Z
| Manufacturer | |
| Description | Circular Push Pull Connectors STRAIGHT PLUG CABLE COLLET CONN COAX PLUG STR 75 OHM SOLDER PLUG, S1, COAX, 75OHM |
| Category |
Business
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| VSWR | :1.02 | Impedance | 75 Ohm |
| Voltage - Test | :2.4kV | Voltage - Working | :0.8kV |
| Current Rating (Max) | :10A | Impedance - Unbalanced/Balanced | :RG179, RG187, RG58, RG142, RG302, RG400, RG59, RG223 |
Mechanical
| Weight | 0.019 | Packaging | Bulk |
| Cable Type | :- | Shell Size | 1 |
| Body Finish | Chrome | Shell Style | Plug |
| Termination | :Solder | Weight (g): | 35.20000 |
| Body Material | Brass | Core Diameter | :1.3mm |
| Housing Color | Silver | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Chrome | Connector Type | Plug, Male Pin |
| Contact Finish | :- | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Metal |
| Connector Style | Coax | Contact Material | :- |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 1 |
| Shield Termination | Clamp | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | :Straight Plug |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Series | S | Product Type | Connectors |
Environmental
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
Similar Parts
GMA.1B.045.DN
LEMO
Circular Push Pull Connectors 4.0mm to 4.4mm dia. BLK BND RLF 1B CABLE BEND RELIEF 4.5MM BLACK 1B plug&skt strain relief boot,4.5-4.9mm STRAIN RELIEF, 5MM, BLACK STRAINRELIEF4.5-4.9MM Break protection nozzle black 4.5...4.9 mm, GMA.1B.045.DN, Lemo Lemo 应力消除套管, 使用于1S 系列

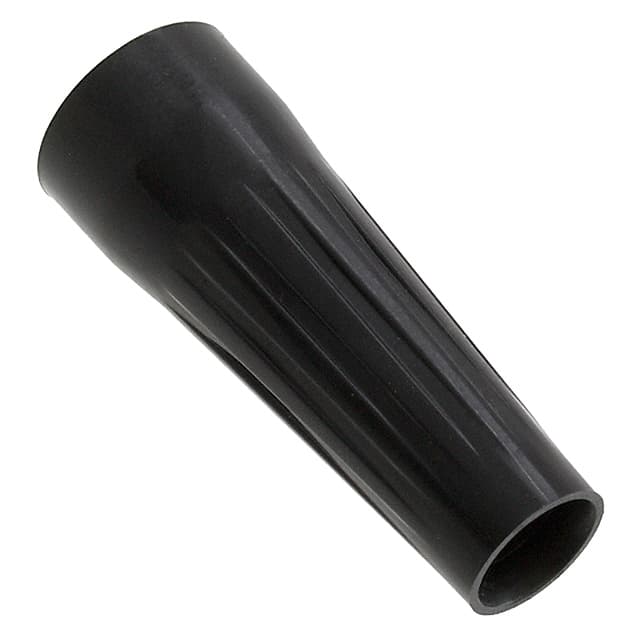

GMA.1B.054.DN
