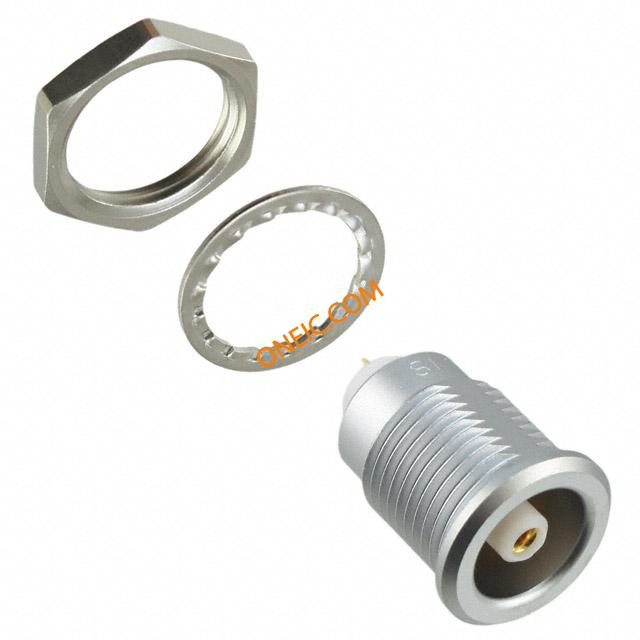

ERA.1S.250.CTL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECEPT COAX (50B) CONN COAX JACK STR 50 OHM SOLDER SOCKET, S1, PANEL, 50, GRP1/2/3/4 |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| VSWR | :1.01 | Impedance | 50 Ohm |
| Voltage - Test | :3.0kV | Voltage Rating | 3000 VAC, 4200 VDC |
| Voltage - Working | :1.0kV | Current Rating (Max) | 12 A |
| Impedance - Unbalanced/Balanced | :RG179, RG196, RG188, RG316, RG174, RG122 | ||
Mechanical
| Weight | 0.008 | Packaging | Bulk |
| Cable Type | :- | Body Finish | Chrome |
| Shell Style | Receptacle | Termination | :Solder |
| Body Material | Brass | Core Diameter | :1.6mm |
| Housing Color | Silver | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chrome | Connector Type | Jack, Female Socket |
| Contact Finish | :- | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Metal |
| Connector Style | Coax | Contact Material | :- |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 1 | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | :Straight Jack | 1st Connector Mounting Type | :Cable |
Product Info
| Series | S | Product Type | Connectors |
Environmental
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
