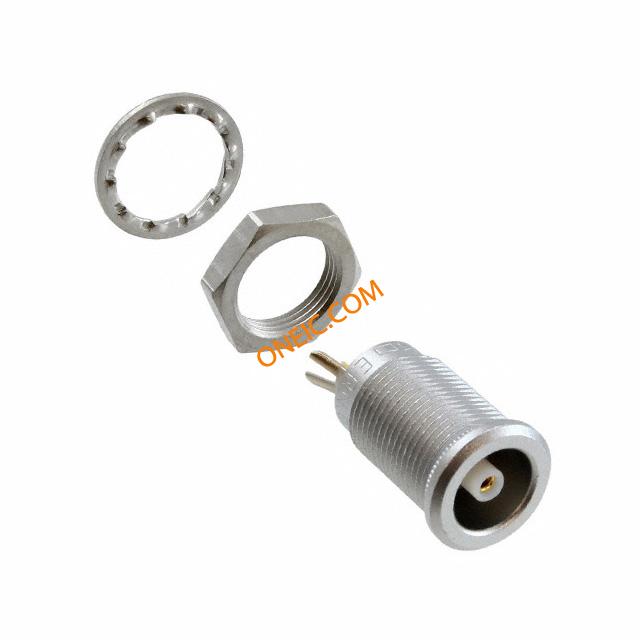

ERN.00.250.CTL
| Manufacturer | |
| Description | Circular Push Pull Connectors COAX SLDR GRMND TAG FEMALE PANL RECEPT CONN JACK STR 50 OHM SOLDER 1 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, 00, PANEL, 50OHM Socket; coaxial; female; Zwave:50Ω; RG174,RG179,RG188; soldering HF-device socket, NIM-CAMAC 50 Ohm, ERN.00.250.CTL, Lemo Lemo 00 S 系列 1路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
| Factory Pack Quantity | 150 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| VSWR | :1.09 | Impedance | 50 Ohm |
| Voltage - Test | 2.1kV | Voltage Rating | 700V |
| Voltage - Working | :0.7kV | Contact Resistance | :5.6mohm |
| Current Rating (Max) | 4A | Insulation Resistance | :1012ohm |
| Impedance - Unbalanced/Balanced | :RG174,RG179,RG188 | ||
Mechanical
| Weight | 0.003 | Material | :Brass (UNS C 38500) |
| Packaging | Bulk | Cable Type | :RG174/U, RG179/U, RG188/U, RG316/U |
| Body Finish | Chrome | Shell Style | Receptacle |
| Termination | Solder | Weight (g): | 8.80000 |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome |
| Connector Type | Jack, Female Socket | Contact Finish | Copper, Nickel, Gold |
| Fastening Type | Push-Pull | Mounting Style | for panel mounting |
| Plating - Body | :Chrome | Connector Style | NIM-CAMAC CD/N 549 |
| Contact Material | :- | Package Quantity | 5 |
| Connector - Cable | socket | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 1 |
| Shield Termination | Solder | Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Bronze | Supplier Device Package | :Straight Jack |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Spg | 5 | Gender | Female |
| Series | 00 | Product Type | Connectors |
| Number of Units | 1 | ||
Environmental
| Mating Cycles | :1000 | Operating Temperature | -55°C ~ 260°C |
