点击放大查看

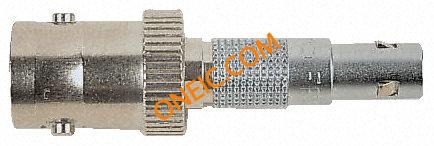

ABF.00.250.CTA
| Manufacturer | |
| Description | RF Adapters - Between Series BNC ADAPTER 50 OHM ADPT 00.250. PLUG - BNC RCPT SER00/BNC ADAPTOR ADAPTER, BNC JACK, LEMO PLUG, 50OHM CONN ADAPT PLUG TO BNC JACK Adapter LEMO male/BNC female 50 Ohm, ABF.00.250.CTA, Lemo Lemo镀铬 直 50Ω 射频适配器 , BNC 插头 到 NIM-CAMAC CD/N 549 插座 |
| Category |
Business
| Lead Time | 98 Days | Subcategory | Connector RF |
| Product Category | RF Adapters - Between Series | Standard Package | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Impedance | 50 Ohm | Conversion Type | Between Series |
Mechanical
| Length | 36mm | Weight | 0.009 |
| Packaging | Bulk | Body Finish | Chrome |
| Weight (g): | 8.80000 | Body Material | Brass |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Chrome |
| Connector Type | Lemo 00 BNC | Contact Finish | Gold over Nickel |
| Contact Material | Brass, Bronze | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| 1st Connector Gender | Plug (Male) | 2nd Connector Gender | Jack (Female) |
| Center Contact Plating | Gold | Center Contact Material | Brass; Bronze |
| 1st Connector Mounting Type | Normal | 1st Connector Mounting Feature | :Plug |
Product Info
| Style | Straight | Gender | Plug |
| Series | 00 | RF Type | BNC |
| Adapter Type | Plug to Jack | Center Gender | Female to Male |
| Adapter Series | BNC to NIM-CAMAC CD/N 549 | Convert To (Adapter End) | BNC Jack, Female Socket |
| Convert From (Adapter End) | NIM-CAMAC CD/N 549 Plug, Male Pin | Number of Positions (Convert From) | :1 |
Environmental
| Ingress Protection | IP50 - Dust Protected | ||
