L-793GD
| Manufacturer | |

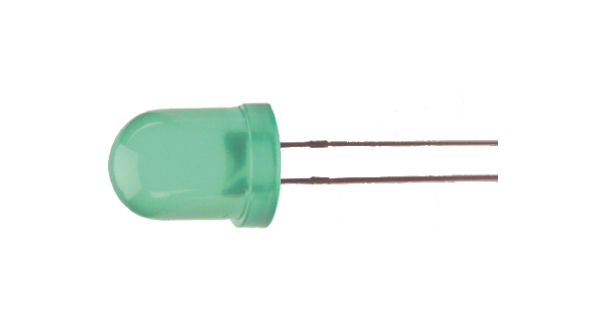

| Description | Green diffused LED,L793GD 25mA LED, 8MM, GREEN 8MMLEDGREENDIFFUSED LED; 8mm; green; 20-70mcd; 60° LED 8 mm (T21/2) green, L-793GD, Kingbright Kingbright 绿色 (568 nm 主波长) LED , 2.5 V, 60 mcd, 60 °视角 8 mm 通孔 |
| Category |
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85414010 | ||
Electrical
| Lamp Type | :8mm | Wavelength | 565nm |
| Luminous Flux | 20-70mcd | Viewing Angle | 60 ° |
| Voltage - Supply | :2.5V | Wavelength - Peak | :565nm |
| LED Forward Current | :Through Hole | LED Forward Voltage | 2.5 V |
| Wavelength - Dominant | 568 nm | Current - Dark (Id) (Max) | :20mA |
| Voltage - Peak Reverse (Max) | :5V | Current - Peak Pulse (8/20us) | :30mA |
| Current - DC Forward (If) (Max) | :20mA | ||
Mechanical
| Length | :11mm | Weight | 0.0007 |
| Material | :GaP | LED Color | Green |
| Lens Style | Circular | Lead Spacing | :2.54mm |
| Pin Diameter | :0.5mm | Lens Material | diffused, green |
| Mounting Type | PCB Through Hole | Inner Diameter | :0.5mm |
| Number of Pins | 2 | Optic Diameter | 8mm |
| Optic Material | :Radial Leaded | Material - Core | GaP |
| Package Quantity | 8mm | Size / Dimension | :8mm |
| Diameter - Outside | :8mm | Length - Lead Wire | :25.5mm |
| Diameter - Inside, Expanded | :0.5mm | ||
Product Info
| Spg | 200 | Type | :Standard |
| Diode Type | LED | Number of LEDs | 1 |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | :85°C | Luminous Flux @ Current/Temperature | 60 mcd |
