TLC5921DAPG4
| Manufacturer | |
| Description | LED DRVR 5V 32-Pin HTSSOP EP Tube LED Lighting Drivers LED Driver IC LED DRIVER LINEAR 32HTSSOP TLC5921DAPG4, LED Driver, 5V, 32-Pin HTSSOP EP IC, LED DRIVER, 16 BIT, HTSSOP-32 16-Channel LED Driver |
| Category |
Business
| Product Category | LED Lighting Drivers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 46 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85411000 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Dimming | :(Not Available) | Frequency | 20MHz |
| Input Signal | Serial | Power - Rated | 3.9 W |
| Voltage Rating | 4.5 V to 5.5 V | Data Rate (Max) | 20 |
| Current - Output | 50000 mA | Current - Supply | 50 mA |
| Voltage - Supply | 4.5 to 5.5 V | Number of Outputs | 16 |
| LED Forward Voltage | 17 | Current Rating (Max) | Catalog |
| Frequency - Switching | :20MHz | Voltage - Input (Min) | 17V |
| Voltage - Supply (Min) | 4.5 V | Power Dissipation (Max) | 3900 mW |
| Current - Output / Channel | 80 | Current - Output High, Low | -1000 uA |
| Constant Current Load - Max | Yes | Channel-to-Channel Matching (DeltaRon) | 1 |
| Voltage - Continuous Operating (Max) (MCOV) | :7V | ||
Mechanical
| Width | 6.2mm | Height | 1.15mm |
| Length | 11mm | Weight | 0.006388 oz |
| Packaging | Tube | Case Color | :HTSSOP |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 32HTSSOP EP | Package Cooled | HTSSOP EP |
| Material Finish | :MSL 3 - 168 hours | Package Quantity | 46 | TUBE |
| Size / Dimension | 11 x 6.2 x 1.15mm | Number of Positions | 32 |
| Supplier Device Package | 32-HTSSOP | ||
Product Info
| Type | LED Lighting Display, Signage, Automotive | Series | TLC5921 |
| DELETED | Compliant | Features | Fault Reporting LED Open Detection Power Good/Error Flag Thermal Shutdown |
| Software | SLLS390 | Topology | Linear (LDO), High Side |
| Utilized IC / Part | View | Internal Connection | Yes |
| Channels per Circuit | 16 | ||
Environmental
| Temperature - Test | -20 to 85 | Operating Temperature | + 85 C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
RE933-07
Roth Elektronik

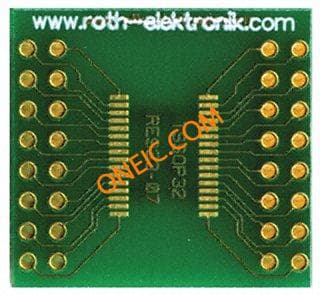

RE933-07, Surface Mount (SMT) Board TSSOP Epoxy Glass Double-Sided 25.5 x 23.5 x 1.5mm FR4 ADAPTOR, SMD, TSSOP-32, 0.65MM Board: universal; multiadapter; W:58.9mm; L:120.1mm; TSSOP32 Laboratory card FR4 Epoxide + chem. Ni/Au TSSOP32 Adapter, RE933-07, Roth Elektronik
