PHR-7
| Manufacturer | |
| Description | CONN HOUSING PH 7POS 2MM WHITE Housing,PH,2.0mm pitch,7way Crimp housing 2 mm Poles 7 PH, PHR-7, JST JST PHR 系列 1 行 2mm 节距 7 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 800 | Voltage Rating | 100 |
| Number of Poles | 7 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 2 A | Insulation Resistance | 1000 MOhm |
Mechanical
| Color | Natural | Depth | 6.85mm |
| Pitch | 0.079" (2.00mm) | Width | 4.5mm |
| Length | 15.8mm | Packaging | Bulk |
| Body Color | 12 | Orientation | 直 |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Detent Lock |
| Number of Rows | 1 | Contact Material | Tin-plated phosphor bronze |
| Housing Material | Nylon | Number of Contacts | 7 |
| Contact Termination | Crimp | Number of Positions | 7 |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | PH | Amplifier Type | 9 |
| Connection Method | Wire-Board | For Use With/Related Products | Removable crimp connector |
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
Similar Parts
SPH-002T-P0.5L
JST Sales America Inc
CONN TERMINAL 28-24AWG TIN SPH-002T-P0.5L
SPH-004T-P0.5S
JST Sales America Inc
CONN TERM CRIMP PH 28-32AWG TIN
SPH-002T-P0.5S
JST Sales America Inc
CONN TERM CRIMP PH 24-30AWG Contact SKT Crimp ST Cable Mount Embossed T/R Crimp contact Female 30...24 AWG, SPH-002T-P0.5S, JST JST PH 系列 母 压接接线端子, 压接, 镀锡触点
SPH-002GW-P0.5L
JST Sales America Inc
CONN TERM CRIMP PH GOLD 24-28AWG

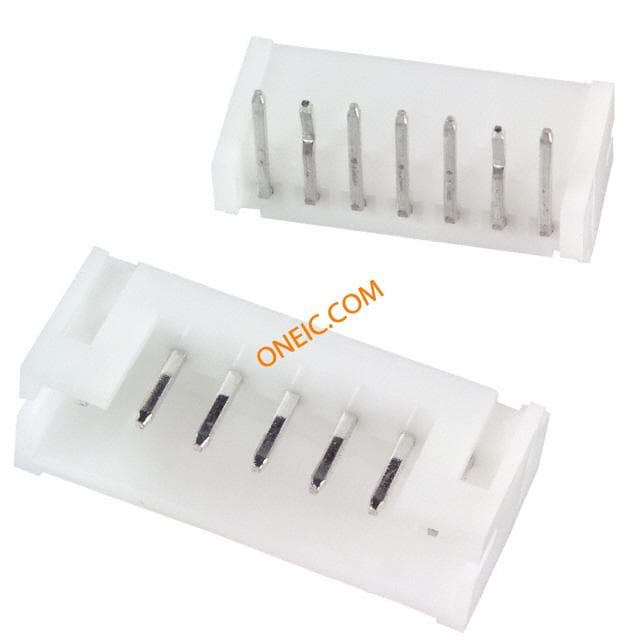

S7B-PH-K-S(LF)(SN)
JST Sales America Inc
CONN HEADER PH SIDE 7POS 2MM JST PH Series 2mm Pitch 7 Way 1 Row Right Angle PCB Header, Solder Termination, 2A JST PH 系列 7路 2mm节距 (1排) 直角 PCB 针座 , 焊接端接, 2A, 通孔

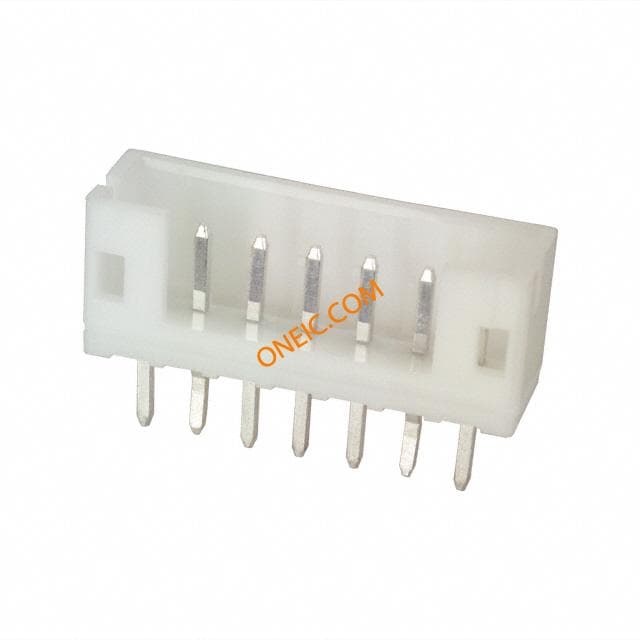

B7B-PH-K-S(LF)(SN)
JST Sales America Inc
CONN HEADER PH TOP 7POS 2MM JST PH Series 2mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 2A JST PH 系列 2mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔

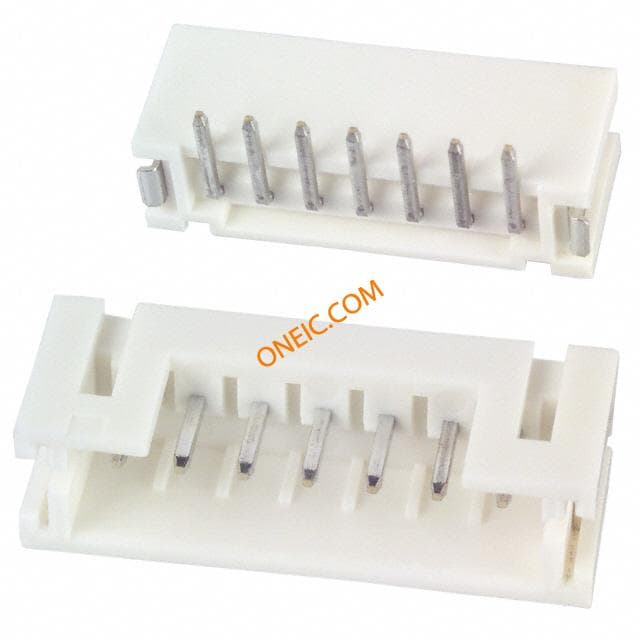

B7B-PH-SM4-TB(LF)(SN)
JST Sales America Inc
CONN HEADER PH TOP 7POS 2MM SMD JST PH Series 2mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 2A JST PH 系列 2mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 2A , 表面安装

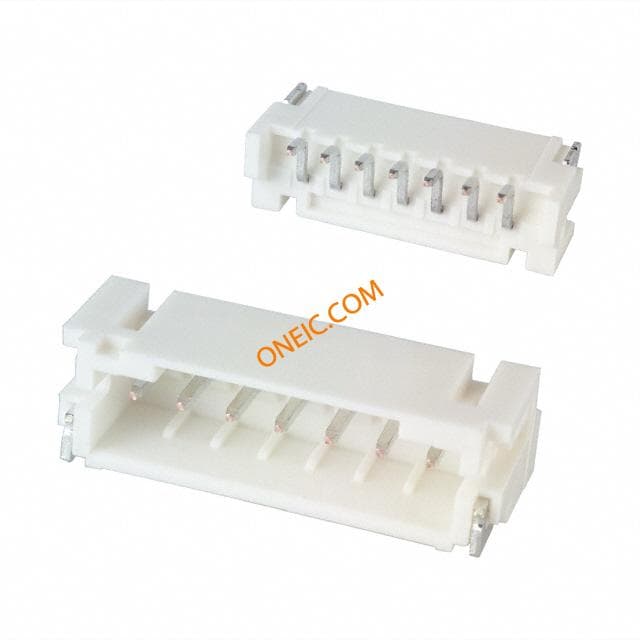

S7B-PH-SM4-TB(LF)(SN)
