B7B-PH-K-S
| Manufacturer | |
| Description | CONN HEADER PH TOP 7POS 2MM Pin header, single-row straight 7-pin 2 mm Poles 7 PH, B7B-PH-K-S, JST |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 455-1276 | Standard Package | 500 |
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 800 | Voltage Rating | 100 |
| Number of Poles | 7 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 2 A | Insulation Resistance | 1000 MOhm |
Mechanical
| Color | Natural | Pitch | 0.079" (2.00mm) |
| Packaging | Bulk | Body Color | 15.9 |
| Termination | Press-Fit | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin-Lead | Number of Rows | 1 |
| Contact Material | Tin-plated phosphor bronze | Housing Material | Polyamide (PA 66) |
| Number of Positions | 7 | 1st Connector Gender | Male |
Product Info
| Series | PH | Amplifier Type | 12 |
| Connection Method | Wire-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
PDF Document
Similar Parts
PHR-7
JST Sales America Inc
CONN HOUSING PH 7POS 2MM WHITE Housing,PH,2.0mm pitch,7way Crimp housing 2 mm Poles 7 PH, PHR-7, JST JST PHR 系列 1 行 2mm 节距 7 路 直 母 电缆安装 PCB 连接器外壳
$0.1279
Details

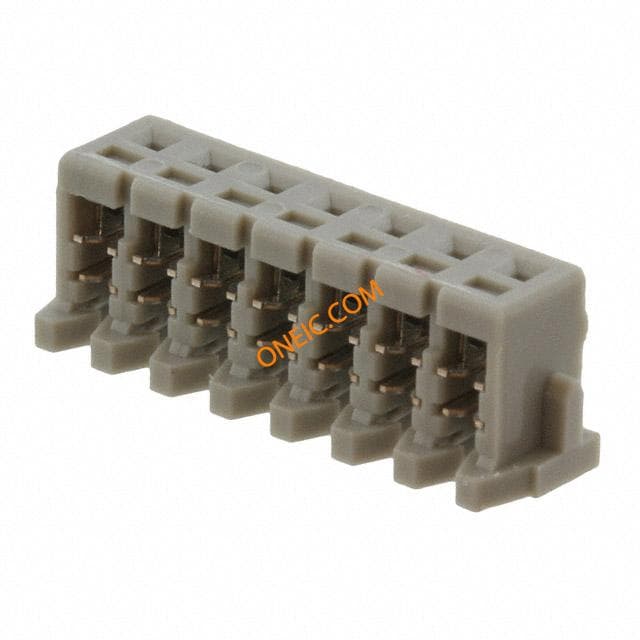

07KR-6H-P
JST Sales America Inc
CONN SOCKET 7POS 2MM IDC
$0.6276
Details

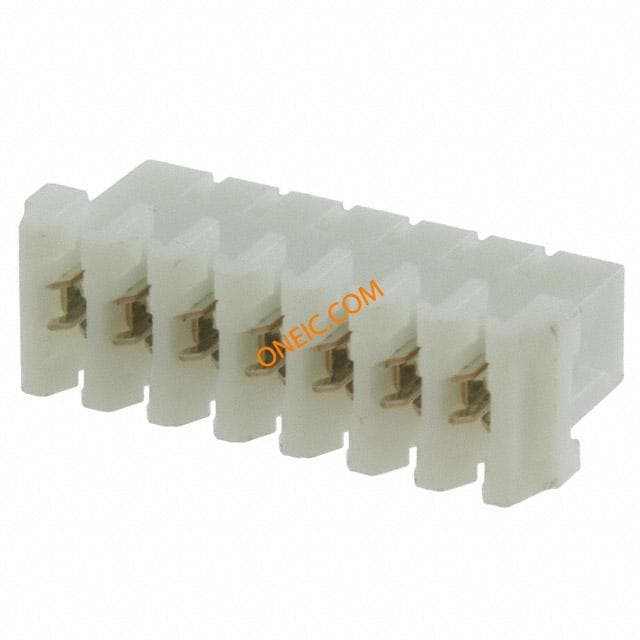

07KR-D6S-P
