PHR-3
| Manufacturer | |
| Description | CONN HOUSING PH 3POS 2.0MM Housing,PH,2.0mm pitch,3way Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount Box Plug; wire-board; female; PIN:3; w/o terminals; 2mm; for cable; PH Crimp housing 2 mm Poles 3 PH, PHR-3, JST JST PHR 系列 1 行 2mm 节距 3 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 800 | Voltage Rating | 100V |
| Number of Poles | 3 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 2 A | Insulation Resistance | 1000 MOhm |
| Voltage - Supply (Min) | 100VDC/100VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 6.85mm |
| Pitch | 0.079" (2.00mm) | Width | 4.5mm |
| Height | 4.5 mm | Length | 7.8mm |
| Weight | 0.23 g | Packaging | Bulk |
| Body Color | 6 | Wire Gauge | 24-30 AWG |
| Orientation | 直 | Contact Type | Female Socket |
| Pitch - Post | 2mm | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Detent Lock | Mounting Style | for cable |
| Number of Rows | 1 | Contact Material | Tin-plated phosphor bronze |
| Housing Material | Nylon | Length - Overall | 7.8 mm |
| Package Quantity | 500 | Connector - Cable | plug |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | 1st Connector Mounting Feature | 1x3 |
Product Info
| Spg | 500 | Note | Contacts Not Provided |
| Type | Housing | Gender | Female |
| Series | PH | Adapter Series | PH |
| Amplifier Type | 3 | Number of Units | 1 |
| Connection Method | Wire-Board | For Use With/Related Products | Removable crimp connector |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
Similar Parts
SPH-002T-P0.5L
JST Sales America Inc
CONN TERMINAL 28-24AWG TIN SPH-002T-P0.5L
SPH-004T-P0.5S
JST Sales America Inc
CONN TERM CRIMP PH 28-32AWG TIN
SPH-002T-P0.5S
JST Sales America Inc
CONN TERM CRIMP PH 24-30AWG Contact SKT Crimp ST Cable Mount Embossed T/R Crimp contact Female 30...24 AWG, SPH-002T-P0.5S, JST JST PH 系列 母 压接接线端子, 压接, 镀锡触点
SPH-002GW-P0.5L
JST Sales America Inc
CONN TERM CRIMP PH GOLD 24-28AWG

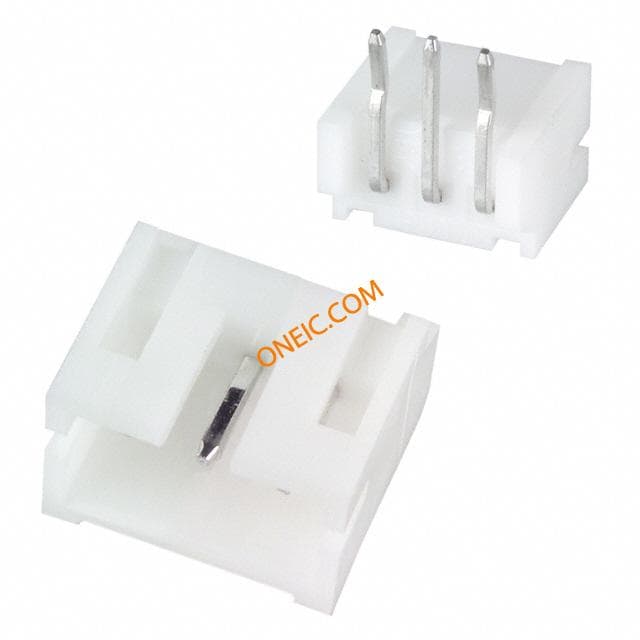

S3B-PH-K-S(LF)(SN)
JST Sales America Inc
CONN HEADER PH SIDE 3POS 2MM JST PH Series 2mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 2A JST PH 系列 3路 2mm节距 (1排) 直角 PCB 针座 , 焊接端接, 2A, 通孔

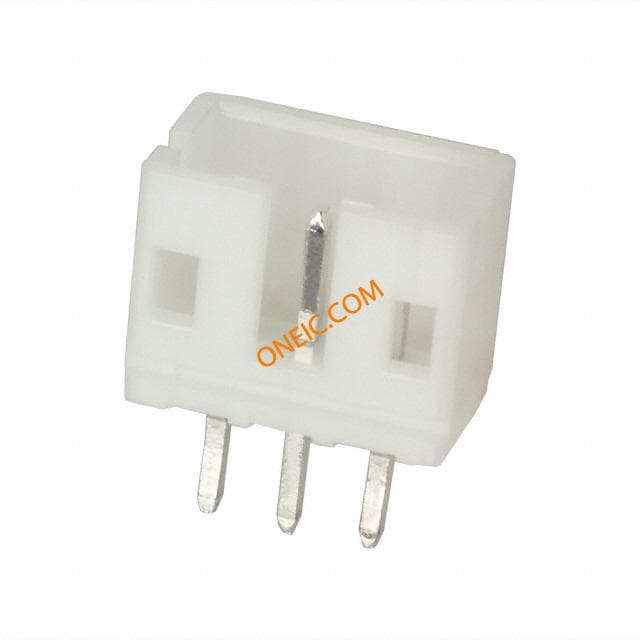

B3B-PH-K-S(LF)(SN)
JST Sales America Inc
CONN HEADER PH TOP 3POS 2MM JST PH Series 2mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 2A Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Box JST PH 系列 2mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔

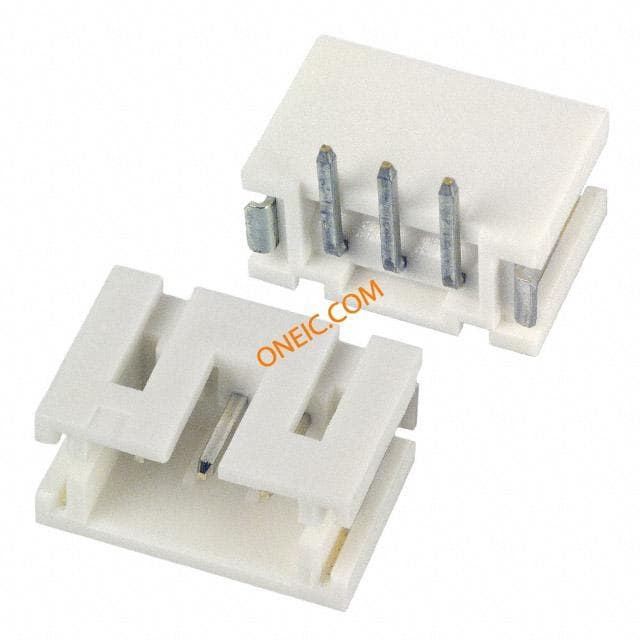

B3B-PH-SM4-TB(LF)(SN)
JST Sales America Inc
CONN HEADER PH TOP 3POS 2MM SMD JST PH Series 2mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 2A PCB pin header Pitch2 mm Poles 3 Single row / straight / with shroud PH, B3B-PH-SM4-TB (LF)(SN), JST JST PH 系列 2mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 2A , 表面安装
B3B-PH-SM4-TB(LF)(SN)(P)
JST Sales America Inc
CONN HEADER PH TOP 3POS 2MM SMD

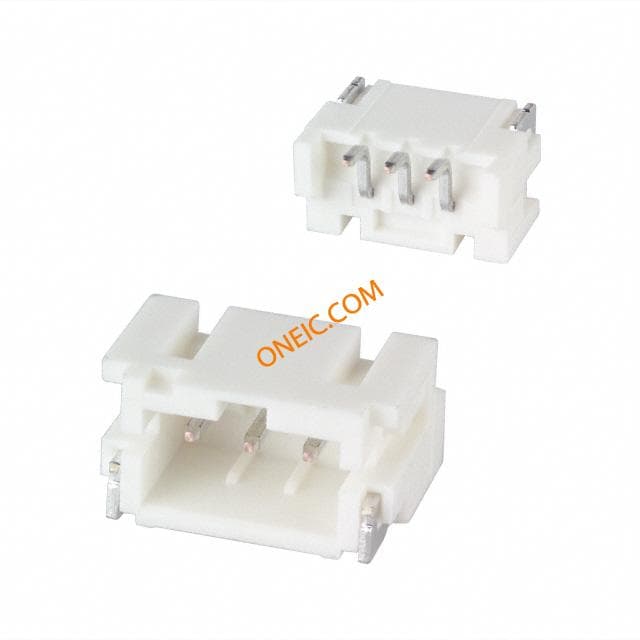

S3B-PH-SM4-TB(LF)(SN)
JST Sales America Inc
CONN HEADER PH SIDE 3POS 2MM SMD JST PH Series 2mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 2A PCB pin header Pitch2 mm Poles 3 Single row / 90° / with shroud PH, S3B-PH-SM4-TB (LF)(SN), JST JST PH 系列 2mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装
S3B-PH-K-S-GW
JST Sales America Inc
CONN SHRD HDR 3 POS TH RED
BH3B-PH(LF)(SN)
JST Sales America Inc
HDR 3 POS WHT HIGH TOP
B3B-PH-SM4-TBT(LF)(SN)
JST Sales America Inc
CONN HEADER PH TOP 3POS SMD
S3B-PH-K-S
JST Sales America Inc
CONN HEADER PH SIDE 3POS 2MM Pin header, single-row 90° 3-pin 2 mm Poles 3 PH, S3B-PH-K-S, JST
B3B-PH-K-S
JST Sales America Inc
CONN HEADER PH TOP 3POS 2MM Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Box Pin header, single-row straight 3-pin 2 mm Poles 3 PH, B3B-PH-K-S, JST
S3B-PH-SM3-TB
JST Sales America Inc
CONN HEADER PH SIDE 3POS 2MM SMD

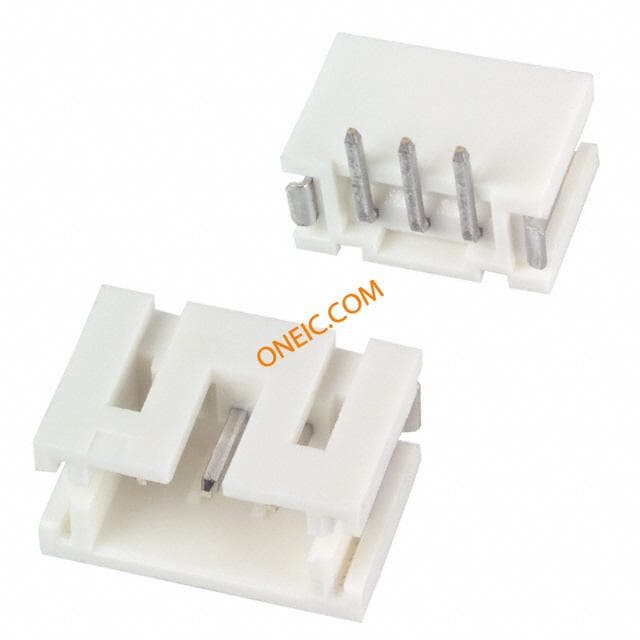

B3B-PH-SM3-TB
