B3B-PH-K-S(LF)(SN)
| Manufacturer | |
| Description | CONN HEADER PH TOP 3POS 2MM JST PH Series 2mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 2A Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Box JST PH 系列 2mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100 V ac/dc | Contact Resistance | 20 mohm |
| Current Rating (Max) | 2A | Voltage - Supply (Min) | 100VDC/100VAC |
Mechanical
| Color | Natural | Depth | 4.5 mm |
| Pitch | 0.079" (2.00mm) | Height | 6 mm |
| Packaging | Bulk | Orientation | 直 |
| Termination | Press-Fit | Contact Type | Male Pin |
| Housing Color | White | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyamide 66 |
| Length - Overall | 7.9 mm | Termination Rows | 焊接 |
| Number of Contacts | 3 | Number of Positions | 3 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | PH | Coverage | 覆盖 |
| Base Product Number | B3B | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
PDF Document
Similar Parts
PHR-3
JST Sales America Inc
CONN HOUSING PH 3POS 2.0MM Housing,PH,2.0mm pitch,3way Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount Box Plug; wire-board; female; PIN:3; w/o terminals; 2mm; for cable; PH Crimp housing 2 mm Poles 3 PH, PHR-3, JST JST PHR 系列 1 行 2mm 节距 3 路 直 母 电缆安装 PCB 连接器外壳
$0.0694
Details

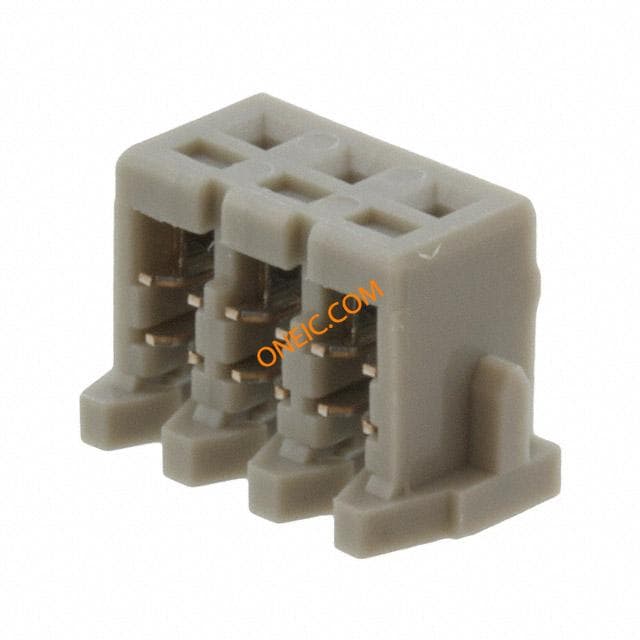

03KR-6H-P
JST Sales America Inc
CONN SOCKET 3POS 2MM IDC
$0.9806
Details

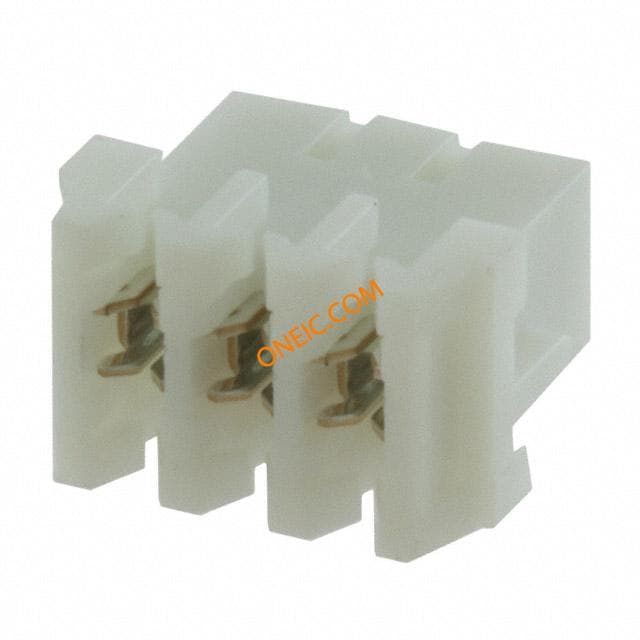

03KR-D6S-P
