SF9W006S4AR1200
| Manufacturer | |

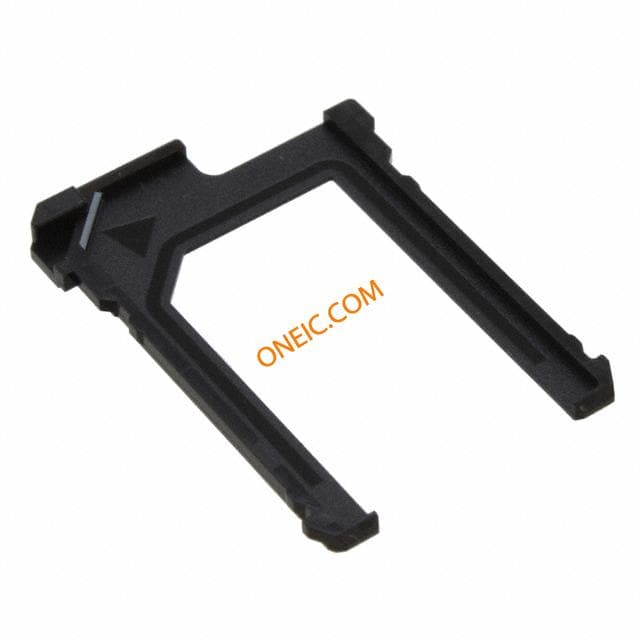

| Description | メモリカード コネクタ 1.8MM SIMM CARD USE W/ SF9-STS1-A CONN SIM CARD 6POS SMD GOLD Memory Card Connectors 1.8MM SIMM CARD USE W/ SF9-STS1-A Conn;Data;SIM;6Cnts;SMD/SMT;SF9Series;1A;500V;forCardTraySIM 06P PLUG IN SIMCARD GOLD |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Card Connectors | Other Names | 670-1519-2 |
| Product Category | Memory Card Connectors | Standard Package | 1,200 |
| Factory Pack Quantity | 1200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 1 A |
Mechanical
| Height | 1.8 mm | Packaging | Tape & Reel (TR) |
| Pitch - Post | FEMALE | Mounting Type | Surface Mount, Right Angle |
| Connector Type | Connector | Contact Finish | Gold |
| Number of Rows | 01 | Contact Material | Copper Alloy |
| Mounting Feature | Normal, Standard - Top | Termination Style | SMD |
| Height Above Board | 0.071" (1.80mm) | Number of Contacts | 6 |
| Number of Positions | 6 | Insertion, Removal Method | Push In, Pull Out |
Product Info
| Card Type | SIM, SAM Card | ||
Environmental
| Mating Cycles | 5000 | ||
