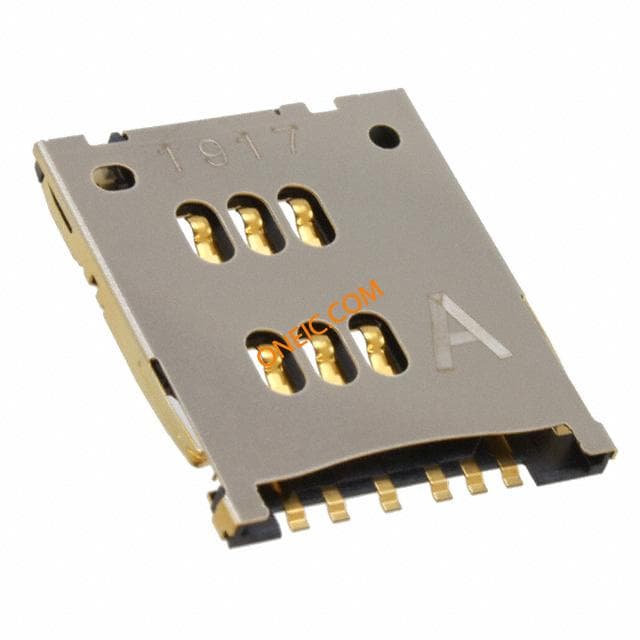

SF9-STS1-A
| Manufacturer | |
| Description | メモリカード コネクタ Tray for 1.8mm SF9 A SIMM CONN SIM CARD 6POS TRAY Memory Card Connectors Tray for 1.8mm SF9 A SIMM Tray;Accessory;SF9Series;for1.8mm,SIMConnector 06P PLUG IN SIMCARD GSM 11.11 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Card Connectors | Product Category | Memory Card Connectors |
| Standard Package | 50 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 1 A |
Mechanical
| Pitch | 2.54 mm | Height | 1.8 mm |
| Length | 18.9 mm | Packaging | Tray |
| Orientation | Horizontal | Mounting Type | Snap-In |
| Connector Type | Ejector | Number of Rows | 2 |
| Contact Material | Copper Alloy | Termination Style | SMD |
| Number of Contacts | 6 | Insertion, Removal Method | Push In, Pull Out |
| Contact Material - Plating | N/A | ||
Product Info
| Series | SF9 | Card Type | SIM Card |
| Terminstyle | OTHER | RF Family/Standard | SIM |
Environmental
| Mating Cycles | 5 k | ||
