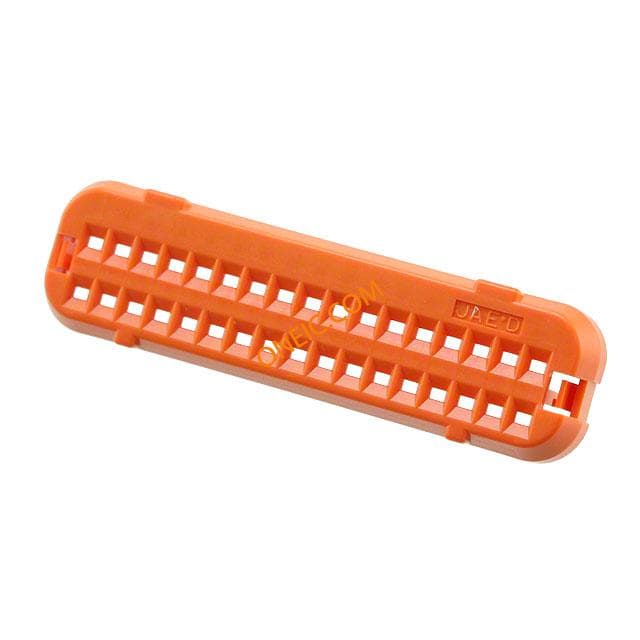

MX23A34SF1

Manufacturer	Japan Aviation Electronics Industry, Ltd.
Description	Automotive Connectors 34P Socket Housing CONN SOCKET HOUSING 34POS CBL Conn;Rect;CableSocket;34Cnts;MX23ASeries;2.5mmSpng;22-16AWG;Black;3A 34P 90° SOCKET HOUSING BLACK
Category	Connector SolutionsRectangular ConnectorsFPC/FFC Rectangular Connectors

对参数有疑问？问 AI 助手

Business

Product	Housings	Other Names	670-1792
Product Category	Automotive Connectors	Standard Package	200
Factory Pack Quantity	200

Compliance

RoHS	RoHS Compliant	Automotive	CERTIFICAT
Leadfree Defin	RoHS-conform

Electrical

Current Rating (Max)

3 A

Insulation Resistance

100 MOhms

Mechanical

Color	Black	Pitch	0.098" (2.50mm)
Length	56.6 mm	Material	Polybutylene Terephthalate (PBT)
Packaging	Bulk	Row Spacing	0.173" (4.40mm)
Contact Type	Female Socket	Pitch - Post	2.50 mm
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Contact Finish	Tin	Fastening Type	Latch Lock
Mounting Style	Wire	Number of Rows	2
Contact Material	Copper Alloy	Termination Style	Crimp
Diameter - Outside	1.6 mm to 2.2 mm	Number of Contacts	34
Contact Termination	Crimp	Number of Positions	34
Wire Gauge or Range - AWG	22-16	Contact Material - Plating	N/A

Product Info

Note	Contacts Not Provided	Gender	Female
Series	MX23A	Features	Waterproof
Function	Connector can be used for wide range water proof equipment including automobiles, motorcycles	Terminstyle	CRIMP
RF Family/Standard	WTB

Environmental

Operating Temperature

- 40 C to + 125 C

Documents & Media

PDF Document

MX23A Series

PDF Document

Transportation

Similar Parts

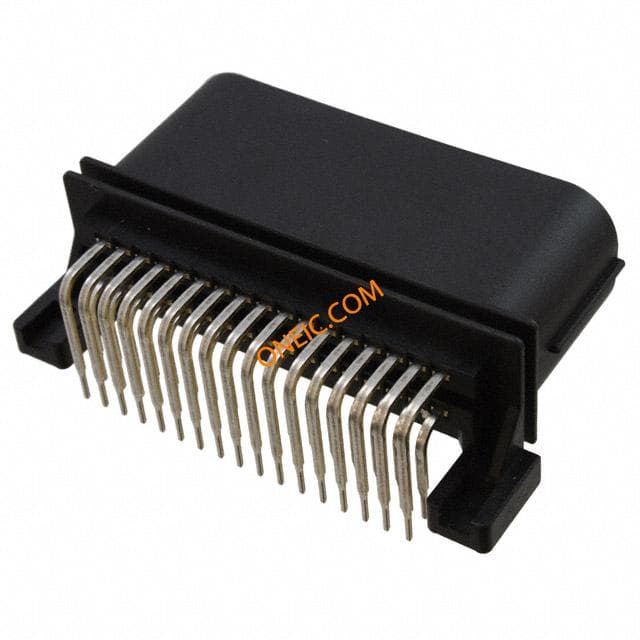

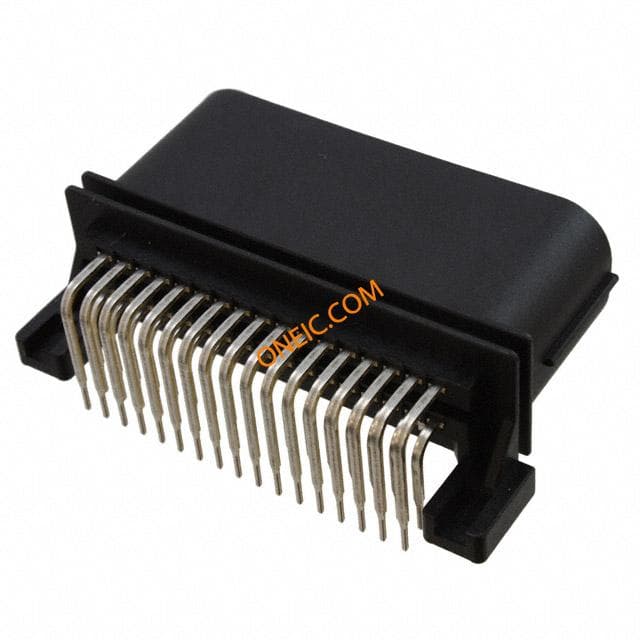

MX23A34NF1
