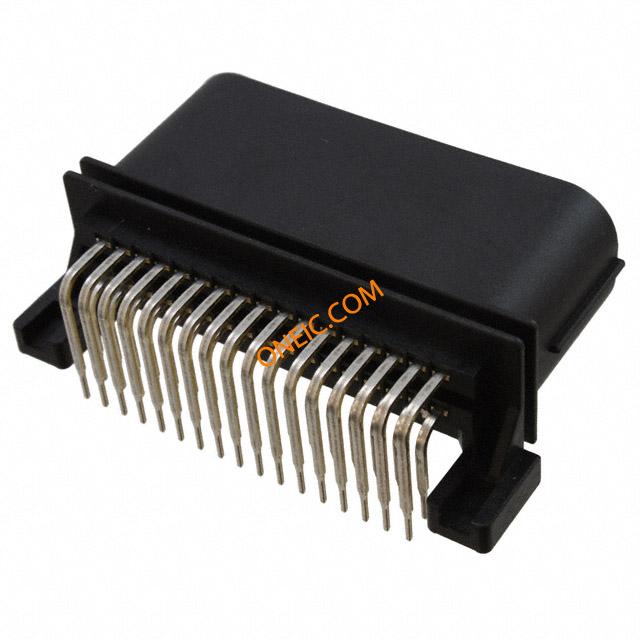

MX23A34NF2
| Manufacturer | |
| Description | Automotive Connectors 34P Reverse Pin Header CONN HEADER 34PS R/A REVERSE PIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Other Names | 670-1789 |
| Product Category | Automotive Connectors | Standard Package | 120 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 100 MOhms |
Mechanical
| Color | Black | Pitch | 0.098" (2.50mm) |
| Length | 54 mm | Material | Polybutylene Terephthalate (PBT) |
| Packaging | Tray | Row Spacing | 0.173" (4.40mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Termination Style | Solder Pin | Diameter - Outside | 1.6 mm to 2.2 mm |
| Number of Positions | 34 | Wire Gauge or Range - AWG | 22-16 |
Product Info
| Gender | Male | Series | MX23A |
| Features | Board Guide, Waterproof | Function | Connector can be used for wide range water proof equipment including automoblies, motorcyles |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
