MX23A26SF1
| Manufacturer | |
| Description | Automotive Connectors 26P Socket Housing CONN SOCKET HOUSING 26POS MX23A WATERPROOFBOARDTOCABLE,MX23ASERIES26POSITIONSOCKETHOUSING 26P FEMALE HOUSING BLACK |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Housings | Other Names | 670-1687 |
| Product Category | Automotive Connectors | Standard Package | 250 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | CERTIFICAT |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 100 MOhms |
Mechanical
| Color | Black | Pitch | 0.098" (2.50mm) |
| Length | 46.6 mm | Material | Polybutylene Terephthalate (PBT) |
| Packaging | Bulk | Row Spacing | 0.173" (4.40mm) |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Termination Style | Crimp | Diameter - Outside | 1.6 mm to 2.2 mm |
| Number of Contacts | 26 | Contact Termination | Crimp |
| Number of Positions | 26 | Wire Gauge or Range - AWG | 22-16 |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | MX23A | Features | Waterproof |
| Function | Connector can be used for wide range water proof equipment including automobiles, motorcycles | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

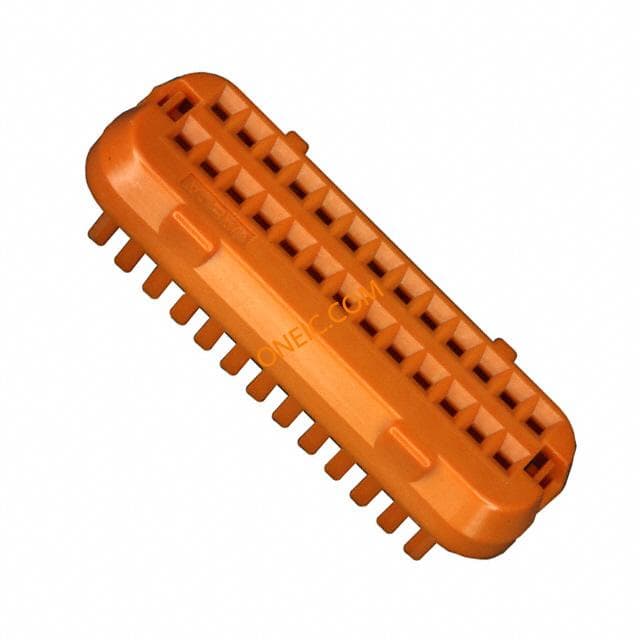

MX23A26XF1
JAE Electronics
Automotive Connectors 26P Front Cap CONN FRONT CAP 26POS SKT HOUSING WATERPROOFBOARDTOCABLE,MX23SERIESFRONTCAP 26P 90° PINHEADER THT ORANGE
$13.6000
Details

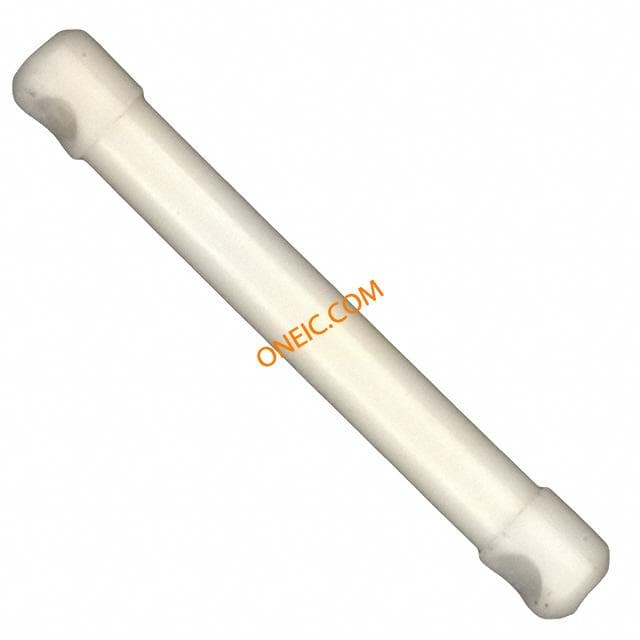

M120-55780
JAE Electronics
Automotive Connectors Dummy Plug CONN DUMMYPIN FOR MX23A SERIES Conn;Rect;Plug,Dummy;MX23ASeries;2.5mmSpng;3A DUMMY PIN WHITE FOR MX23
$0.6188
Details

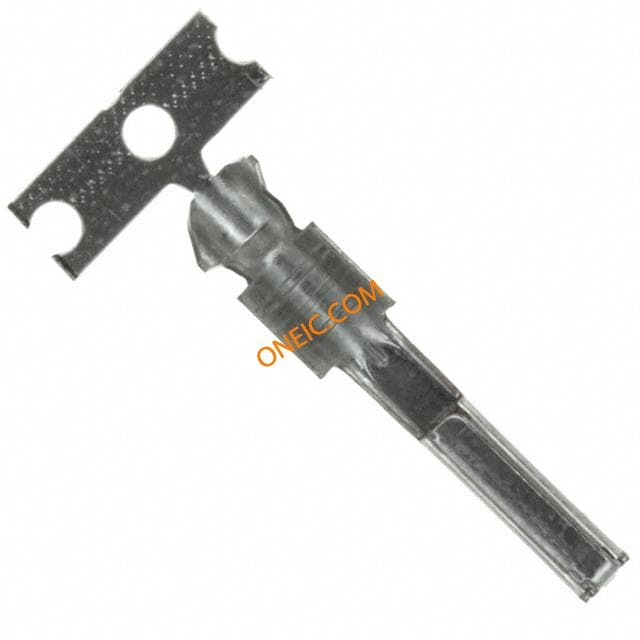

M23S05K351
JAE Electronics
Automotive Connectors Crimp Socket Contact CONN SOCKET 16-22AWG CRIMP MX23A Contact;Socket;Crimp;20-16AWG;CopperAlloy CRIMP FEMALE CONTACT AWG 16-20
$0.3575
Details

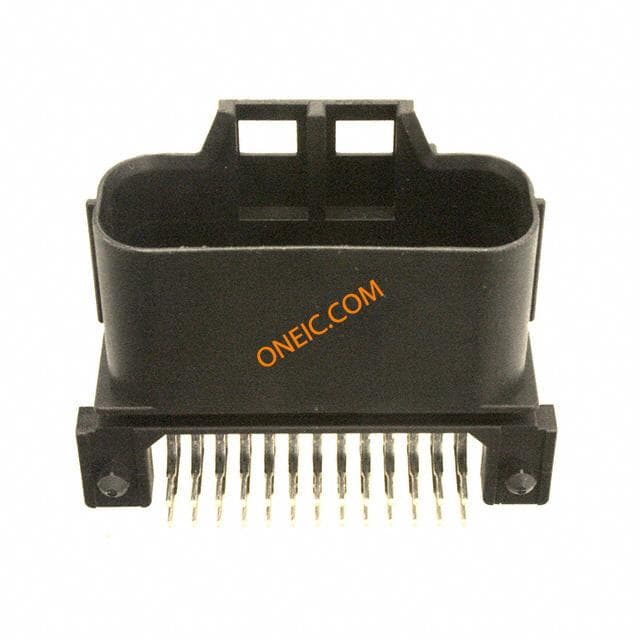

MX23A26NF1
