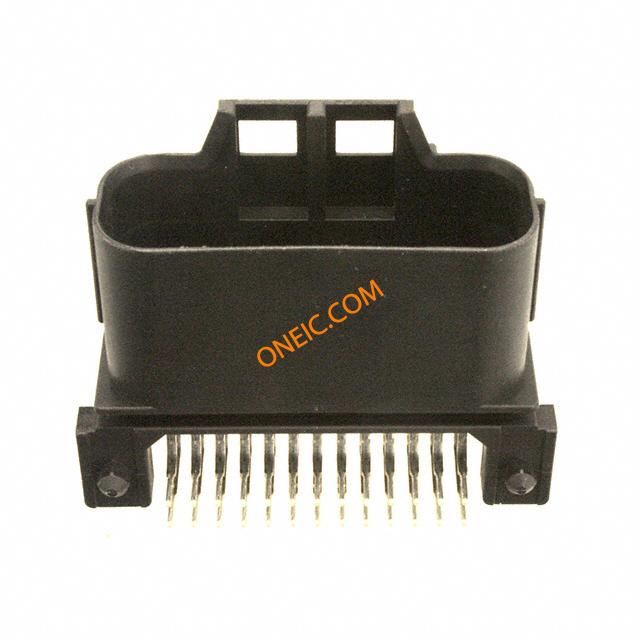

MX23A26NF1
| Manufacturer | |
| Description | Automotive Connectors 26P Std Pin Header CONN HEADER 26POS R/A MX23A TIN WATERPROOFBOARDTOCABLE,MX23ASERIES26POSITIONPINHEADER 26P 90° PIN HEADER 2 ROWS THT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Other Names | 670-1686 |
| Product Category | Automotive Connectors | Standard Package | 160 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | CERTIFICAT |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 100 MOhms |
Mechanical
| Color | Black | Pitch | 0.098" (2.50mm) |
| Length | 44 mm | Material | Polybutylene Terephthalate (PBT) |
| Packaging | Bulk | Row Spacing | 0.173" (4.40mm) |
| Termination | Solder | Contact Form | Male Pin |
| Contact Type | Male Pin | Lead Spacing | 0.173" (4.40mm) |
| Pitch - Post | 2.50 mm | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Termination Style | Solder Pin |
| Diameter - Outside | 1.6 mm to 2.2 mm | Number of Contacts | 26 |
| Number of Positions | 26 | Wire Gauge or Range - AWG | 22-16 |
| Contact Material - Plating | TIN | Number of Positions/Bay/Row | All |
Product Info
| Gender | Male | Series | MX23A |
| Features | Board Guide, Waterproof | Function | Connector can be used for wide range water proof equipment including automobiles, motorcycles |
| Terminstyle | THT | Main Purpose | Board Guide, Waterproof |
| RF Family/Standard | WTB | Output Configuration | Through Hole, Right Angle |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
