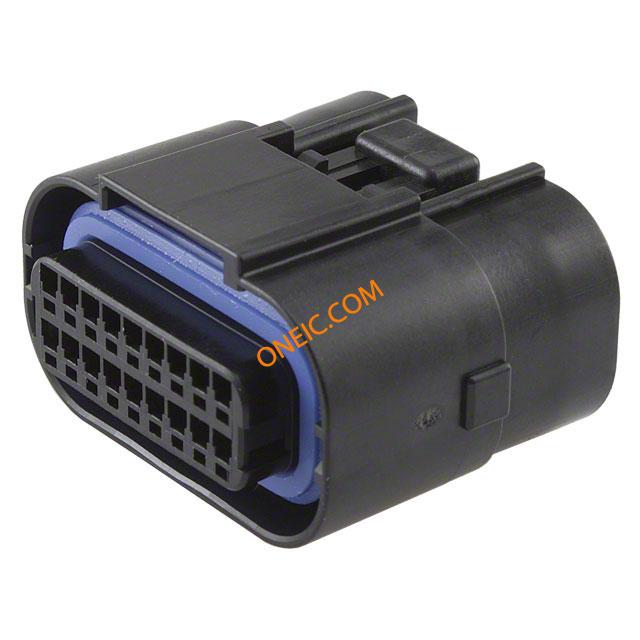

MX23A18SF1

Manufacturer	Japan Aviation Electronics Industry, Ltd.
Description	Automotive Connectors 18P Socket Housing CONN SOCKET HOUSING 18POS 18P FEMALE HOUSING BLACK
Category	Connector SolutionsRectangular ConnectorsHigh-Reliability Rectangular Connectors

对参数有疑问？问 AI 助手

Business

Product	Housings	Product Category	Automotive Connectors
Standard Package	300	Factory Pack Quantity	300

RoHS	RoHS Compliant	Automotive	CERTIFICAT
Leadfree Defin	RoHS-conform

Current Rating (Max)

3 A

Insulation Resistance

100 MOhms

Color	Black	Pitch	0.098" (2.50mm)
Length	36.6 mm	Material	Polybutylene Terephthalate (PBT)
Packaging	Tray	Row Spacing	0.173" (4.40mm)
Contact Type	Female Socket	Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle	Contact Finish	Tin
Fastening Type	Latch Lock	Mounting Style	Wire
Number of Rows	2	Contact Material	Copper Alloy
Termination Style	Crimp	Diameter - Outside	1.6 mm to 2.2 mm
Number of Contacts	18	Contact Termination	Crimp
Number of Positions	18	Wire Gauge or Range - AWG	22-16

Note	Contacts Not Provided	Gender	Female
Series	MX23A	Features	Waterproof
Function	Connector can be used for wide range water proof equipment including automobiles, motorcycles
