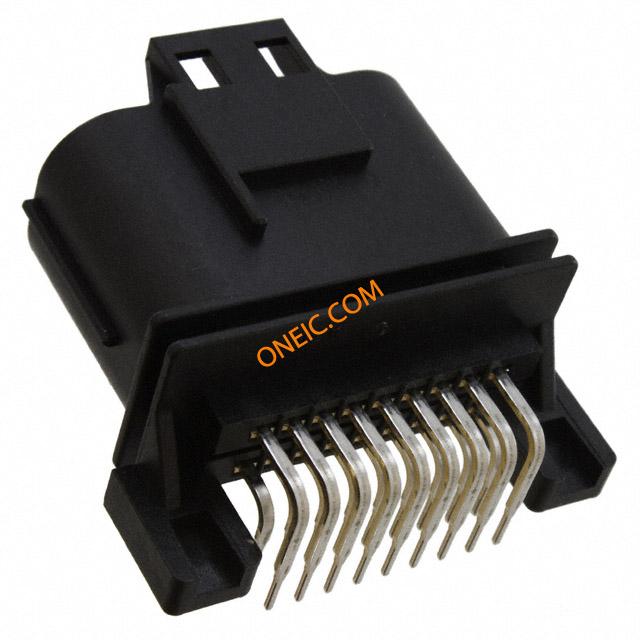

MX23A18NF1
| Manufacturer | |
| Description | Automotive Connectors 18P Std Pin Header CONN HEADER PIN 18POS R/A TIN 18P 90° PIN HEADER 2 ROWS THT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Product Category | Automotive Connectors |
| Standard Package | 160 | Factory Pack Quantity | 160 |
Compliance
| RoHS | RoHS Compliant | Automotive | CERTIFICAT |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 100 MOhms |
Mechanical
| Color | Black | Pitch | 2.5 mm |
| Length | 34 mm | Material | Polybutylene Terephthalate, Glass Filled |
| Packaging | Bulk | Row Spacing | 0.173" (4.40mm) |
| Termination | Solder | Contact Type | Male Pin |
| Pitch - Post | 2.50 mm | Mounting Type | Right |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Termination Style | Solder Pin |
| Diameter - Outside | 1.6 mm to 2.2 mm | Number of Contacts | 18 |
| Number of Positions | 18 | Wire Gauge or Range - AWG | 22-16 |
| Contact Material - Plating | TIN | ||
Product Info
| Gender | Male | Series | MX23A |
| Features | Compact type low-profiled waterproof connector | Function | Connector can be used for wide range water proof equipment including automobiles, motorcycles |
| Terminstyle | THT | RF Family/Standard | WTB |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
