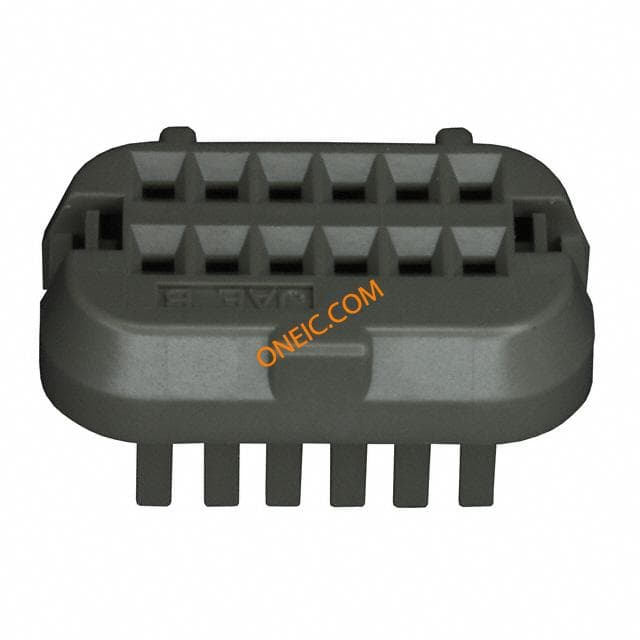

MX23A12SF1
| Manufacturer | |
| Description | Automotive Connectors 12P Socket Housing CONN SOCKET HOUSING 12POS MX23A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Housings | Other Names | 670-1684 |
| Product Category | Automotive Connectors | Standard Package | 400 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 100 MOhms |
Mechanical
| Color | Black | Pitch | 0.098" (2.50mm) |
| Length | 29.1 mm | Material | Polybutylene Terephthalate (PBT) |
| Packaging | Bulk | Row Spacing | 0.173" (4.40mm) |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Termination Style | Crimp | Diameter - Outside | 1.6 mm to 2.2 mm |
| Contact Termination | Crimp | Number of Positions | 12 |
| Wire Gauge or Range - AWG | 22-16 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | MX23A | Features | Waterproof |
| Function | Connector can be used for wide range water proof equipment including automoblies, motorcyles | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
PDF Document
PDF Document
