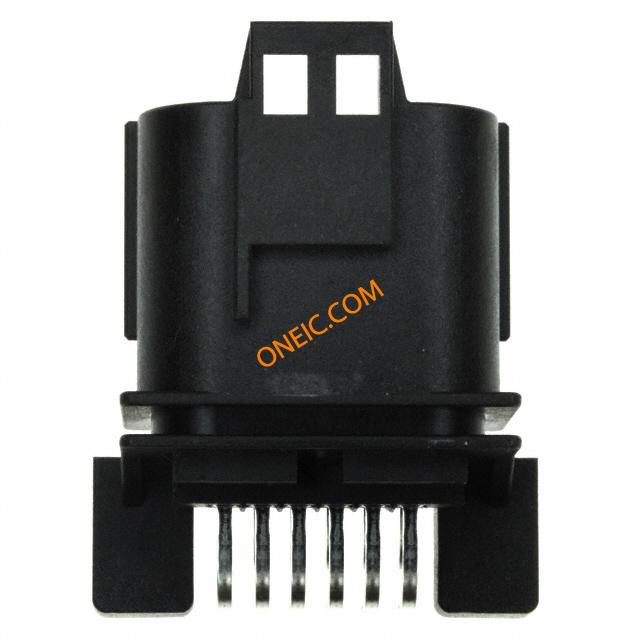

MX23A12NF1
| Manufacturer | |
| Description | Automotive Connectors 12P Std Pin Header CONN HEADER 12POS R/A MX23A TIN 12P 90° PIN HEADER 2 ROWS THT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Other Names | 670-1683 |
| Product Category | Automotive Connectors | Standard Package | 200 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | CERTIFICAT |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 100 MOhms |
Mechanical
| Color | Black | Pitch | 2.5 mm |
| Length | 26.5 mm | Material | Polybutylene Terephthalate, Glass Filled |
| Packaging | Bulk | Row Spacing | 0.173" (4.40mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Right | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Termination Style | Solder Pin | Diameter - Outside | 1.6 mm to 2.2 mm |
| Number of Contacts | 12 | Number of Positions | 12 |
| Wire Gauge or Range - AWG | 22-16 | ||
Product Info
| Gender | Male | Series | MX23A |
| Features | Compact type low-profiled waterproof connector | Function | Connector can be used for wide range water proof equipment including automoblies, motorcyles |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
