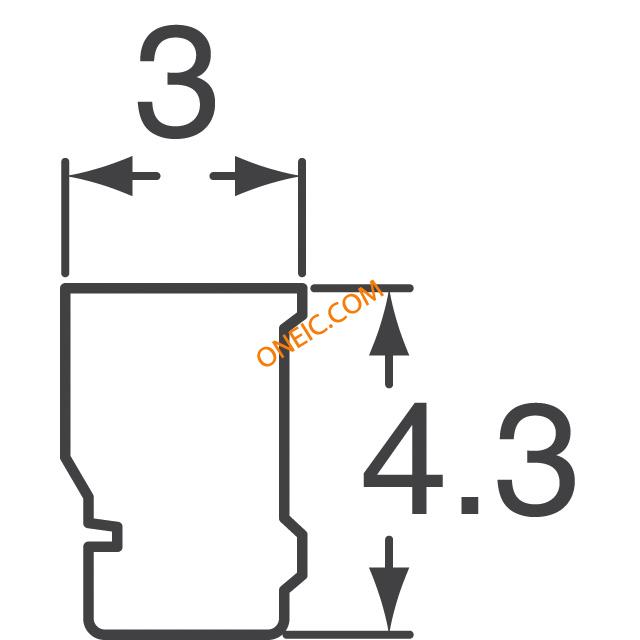

IL-Z-2S-S125C3
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 2P Socket Housing 1.25mm Crimp CONN RCPT 1.25MM 2POS CBL MNT PCBTOCABLE(SOCKETHOUSING)-SINGLEROWCRIMPSTYLE,1.25MMPITCH,2CONTACTS |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | RoHS Compliant Part | ||
Mechanical
| Pitch | 0.049" (1.25mm) | Packaging | Bulk |
| Cable Exit | LowProfile | Wire Gauge | 32-28 |
| Termination | SMT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Receptacle | Number of Rows | 1 |
| Length - Overall | 3.95mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1.25mm | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
Product Info
| Note | Contacts Not Provided | Type | CableSocket |
| Manufacturer | IL-ZSeries | ||
Environmental
| Operating Temperature | -40to+70°C | ||
Documents & Media
PDF Document
PDF Document
