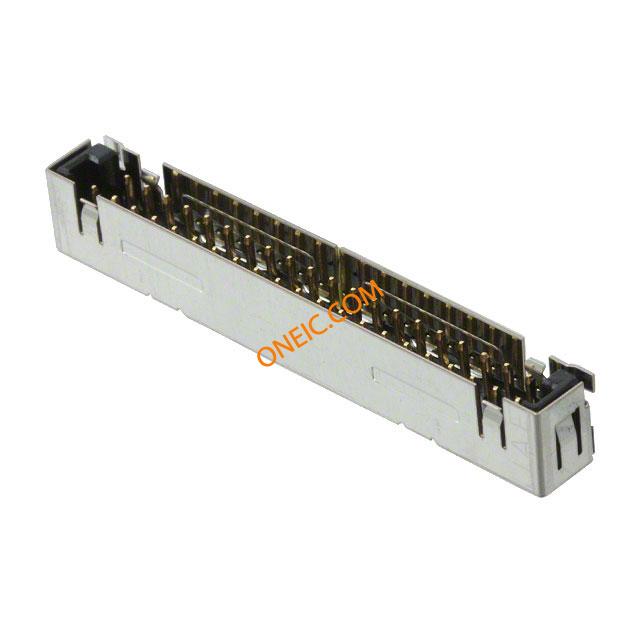

FI-WE41P-HFE
| Manufacturer | |
| Description | FFCおよびFPC コネクタ 41P RT ANGLE RECEPT DOUBLE ROW CONN RCPT 1.25MM 41POS SMD R/A FFC & FPC Connectors 41P RT ANGLE RECEPT DOUBLE ROW PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,41CONTACTS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 39 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage Rating | 200VAC/VDC | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Wire Gauge | 32-28 | Row Spacing | 0.055" (1.40mm) |
| Termination | Solder | Contact Type | Male Pin |
| Length - Pin | 2.4mm | Mounting Type | Surface Mount, Right Angle |
| Angle of Throw | Right | Connector Type | Header, Shrouded |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | CopperAlloy | Housing Material | PPS |
| Length - Overall | 29.1mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1.25mm | Termination Style | SMD |
| Number of Contacts | 41 | Number of Positions | 41 |
| Contact Length - Mating | 0.094" (2.40mm) | ||
Product Info
| Type | CableSocket | Series | FI |
| Features | Cage,LCDCompatible | Manufacturer | FISeries |
| Product Type | Board Mount | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40to+80°C | ||
