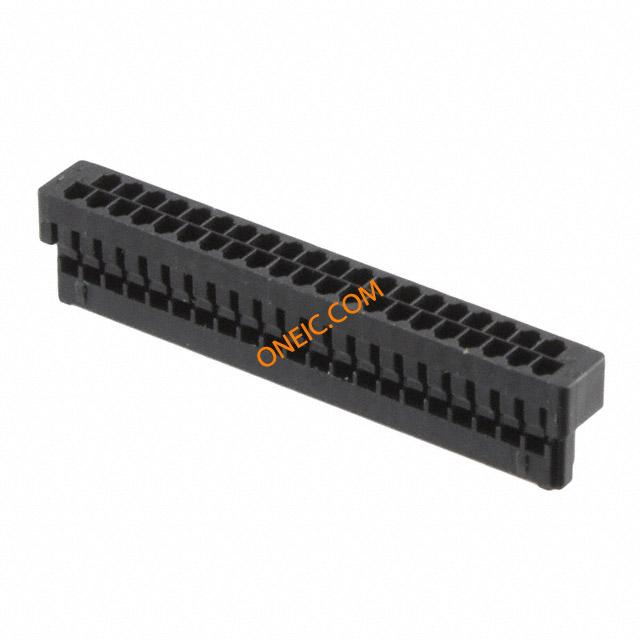

FI-W41S
| Manufacturer | |
| Description | FFC & FPC Connectors 1.25MM PCB-FLEX/WIRE CONN PLUG 1.25MM 41POS CBL MNT PCB TO CABLE PLUG - LCD COMPATIBLE; 1.25MM PITCH; 41 CONTACTS PCBTOCABLEPLUG-LCDCOMPATIBLE,1.25MMPITCH,41CONTACTS |
| Category |
Business
| Product Category | FFC & FPC Connectors | Standard Package | 254 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Termination | Screw | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Plug | Number of Rows | 2 |
| Housing Material | Nylon | Length - Overall | 28.5mm |
| Primary Material | BoardtoCable | Pin Hole Diameter | 1.25mm |
| Termination Style | SMD | Number of Contacts | 41 |
| Contact Termination | Crimp | Number of Positions | 41 |
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Series | FI | Features | LCDCompatible,Shielded |
| Manufacturer | FISeries | Product Type | Free Hanging |
Environmental
| Operating Temperature | -40to+80°C | ||
Documents & Media
Similar Parts

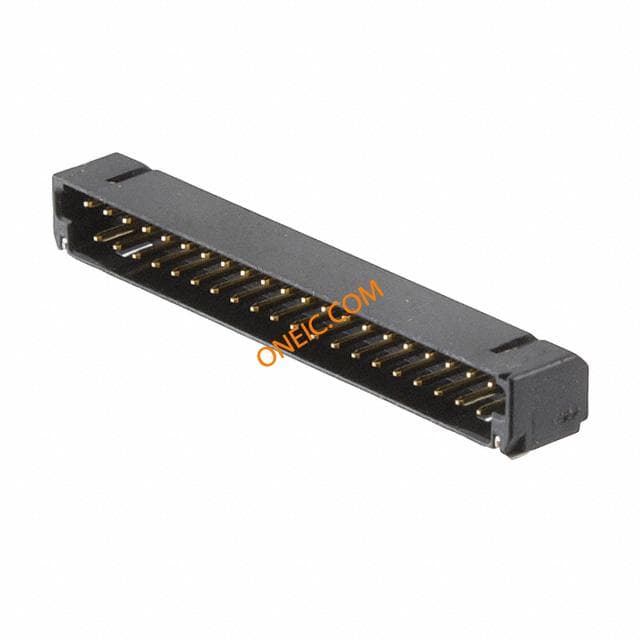

FI-W41P-HFE
JAE Electronics
FFCおよびFPC コネクタ 1.25MM 41P RECEPT RT ANGLE CONN RCPT 1.25MM 41POS SMD R/A PCB TO CABLE RECEPTACLE - LCD COMPATIBLE; 1.25MM PITCH; 41 CONTACTS FFC & FPC Connectors 1.25MM 41P RECEPT RT ANGLE PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,41CONTACTS
FI-W41P-HFE-E1500
JAE Electronics
FFCおよびFPC コネクタ 41p Recep RA SMT LCD Compatible CONN RCPT 1.25MM 41POS SMD R/A FFC & FPC Connectors 41p Recep RA SMT LCD Compatible
FI-C3-A1-15000
JAE Electronics
FFC & FPC Connectors Cable Side Contact FI Series Crimp CONN SOCKET CRIMP 28-32AWG GOLD Contact;CableSide;PCBtoCable;FISeries;GoldoverNickel PCBtoCable-CableSideContacts(Stripof1000) PCBtoCable-FISeriesCableSideContact(SoldinReelof15,000) FEMALE CRIMP CONTACTS AWG 28-32

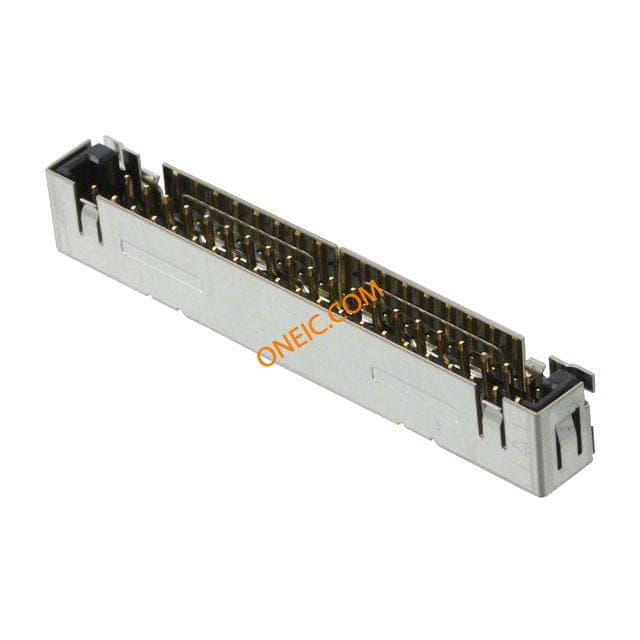

FI-WE41P-HFE
