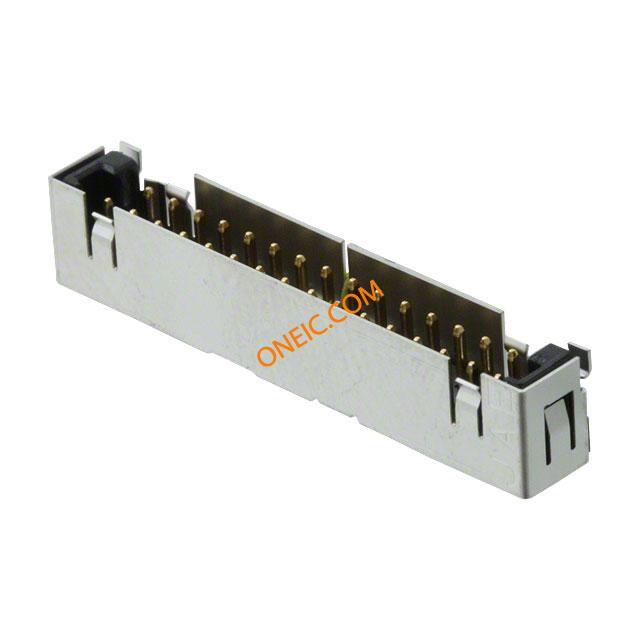

FI-WE31P-HFE
| Manufacturer | |
| Description | FFCおよびFPC コネクタ 31P RECEPTACLE DOUBLE ROW CONN RCPT 1.25MM 31POS SMD R/A FFC & FPC Connectors 31P RECEPTACLE DOUBLE ROW PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,31CONTACTS 31 WAY FFC CONNECTOR 1.25 SMT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 42 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Wire Gauge | 32-28 | Row Spacing | 0.055" (1.40mm) |
| Termination | Solder | Contact Type | Male Pin |
| Length - Pin | 1.45mm | Pitch - Post | FEMALE |
| Mounting Type | Surface Mount, Right Angle | Angle of Throw | Right |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | CopperAlloy |
| Housing Material | PPS | Length - Overall | 22.8mm |
| Primary Material | BoardtoCable | Pin Hole Diameter | 1.25mm |
| Termination Style | SMD | Number of Contacts | 31 |
| Number of Positions | 31 | Contact Length - Mating | 0.094" (2.40mm) |
| Contact Material - Plating | R/A | ||
Product Info
| Type | CableSocket | Series | FI |
| Features | LCDCompatible,Shielded | Terminstyle | SMT |
| Manufacturer | FISeries | Product Type | Board Mount |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40to+80°C | ||
