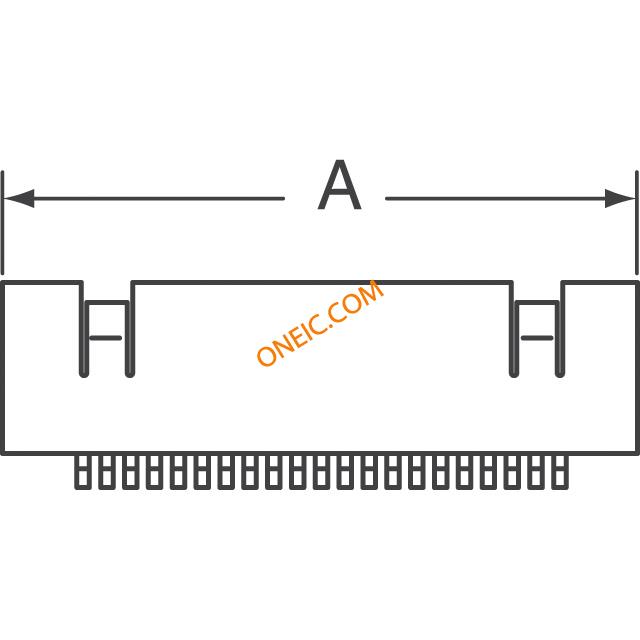

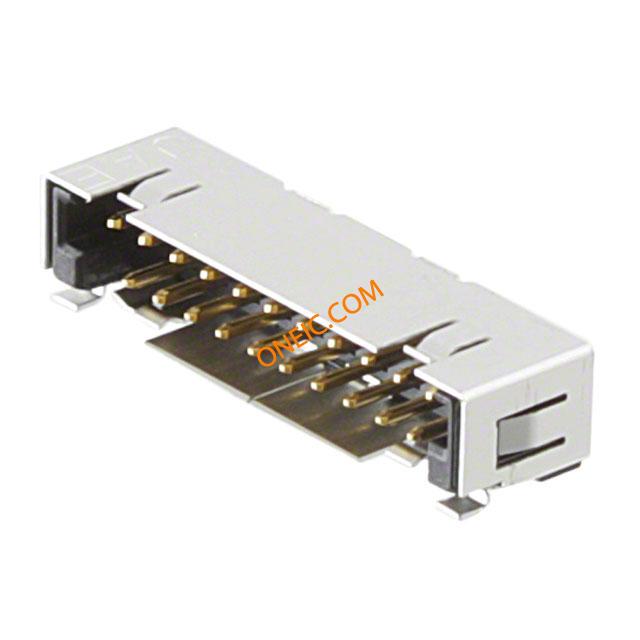

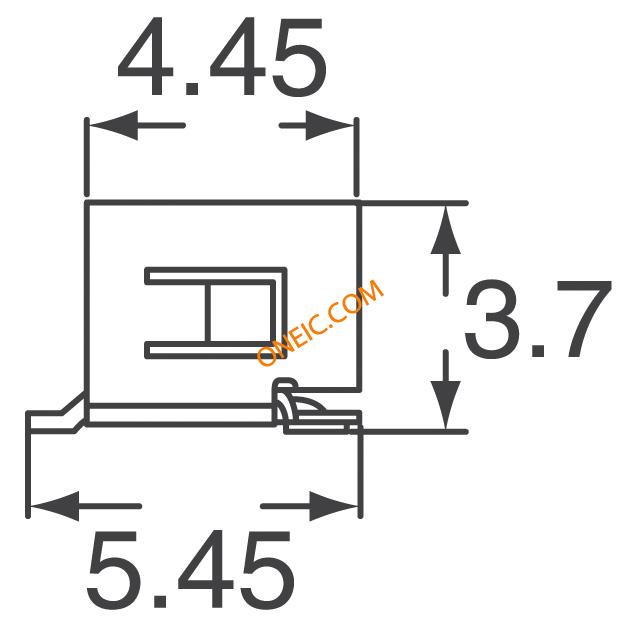

FI-WE21P-HFE
| Manufacturer | |
| Description | FFC & FPC Connectors 21P RECEPTACLE DOUBLE ROW CONN RCPT 1.25MM 21POS SMD R/A PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,21CONTACTS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 48 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Wire Gauge | 32-28 | Row Spacing | 0.055" (1.40mm) |
| Termination | Solder | Contact Type | Male Pin |
| Length - Pin | 1.45mm | Mounting Type | Surface Mount, Right Angle |
| Angle of Throw | Right | Connector Type | Header, Shrouded |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | CopperAlloy | Housing Material | PPS |
| Length - Overall | 16.55mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1.25mm | Termination Style | SMD |
| Number of Contacts | 21 | Number of Positions | 21 |
| Contact Length - Mating | 0.094" (2.40mm) | ||
Product Info
| Type | CableSocket | Series | FI |
| Features | LCDCompatible,Shielded | Manufacturer | FISeries |
| Product Type | Board Mount | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40to+80°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
FI-W21S
JAE Electronics
FFC & FPC Connectors 1.25MM PCB-FLEX/WIRE CONN PLUG 1.25MM 21POS CBL MNT PCBTOCABLEPLUG-LCDCOMPATIBLE,1.25MMPITCH,21CONTACTS
$5.2156
Details

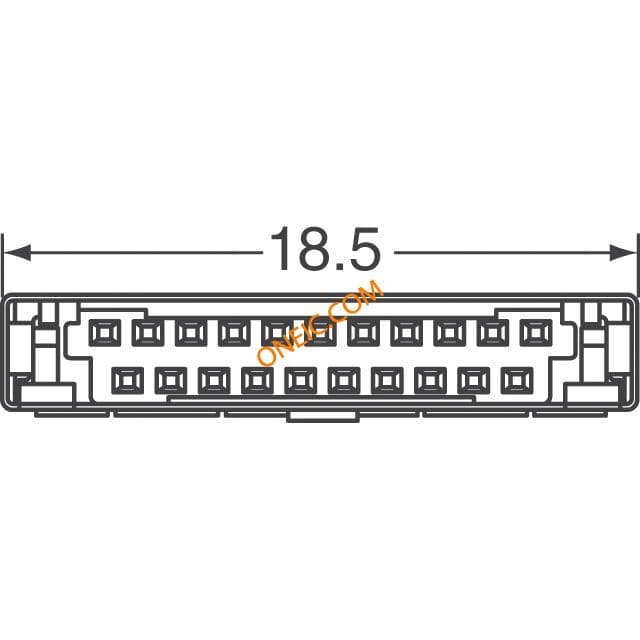

FI-WE21MA1
