FI-W21S
| Manufacturer | |
| Description | FFC & FPC Connectors 1.25MM PCB-FLEX/WIRE CONN PLUG 1.25MM 21POS CBL MNT PCBTOCABLEPLUG-LCDCOMPATIBLE,1.25MMPITCH,21CONTACTS |
| Category |
Business
| Product Category | FFC & FPC Connectors | Standard Package | 319 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 1.25 mm |
| Packaging | Tray | Cable Exit | LowProfile |
| Termination | Screw | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Plug | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Housing Material | Nylon |
| Length - Overall | 16mm | Primary Material | BoardtoCable |
| Pin Hole Diameter | 1.25mm | Termination Style | SMD |
| Number of Contacts | 21 | Contact Termination | Crimp |
| Number of Positions | 21 | ||
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Series | FI | Features | LCDCompatible,Shielded |
| Manufacturer | FISeries | Product Type | Free Hanging |
Environmental
| Operating Temperature | -40to+80°C | ||
Documents & Media
Similar Parts
FI-TWE21P-VF-E1400
JAE Electronics
FFC & FPC Connectors 21P Vertical Recept 1.25MM PCB-FLEX/WIRE CONN RCPT 1.25MM 21POS SMD GOLD PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,21CONTACTS

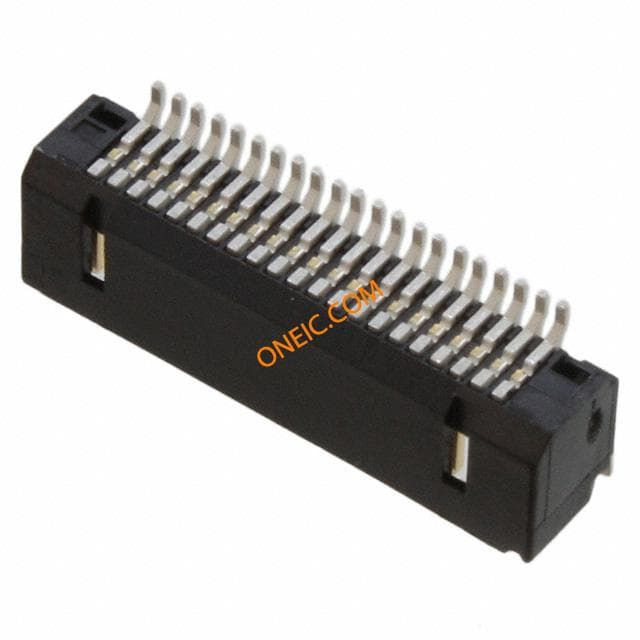

FI-W21P-HFE
JAE Electronics
FFC & FPC Connectors 21p Recep RA SMT LCD Compatible CONN RCPT 1.25MM 21POS SMD R/A PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,21CONTACTS

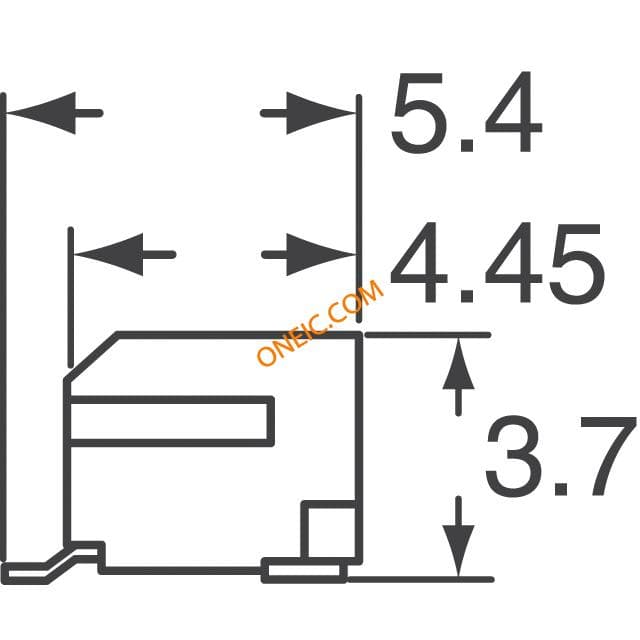

FI-W21P-HFE-E1500
JAE Electronics
FFCおよびFPC コネクタ 21p Recep RA SMT LCD Compatible CONN RCPT 1.25MM 21POS SMD R/A FFC & FPC Connectors 21p Recep RA SMT LCD Compatible
FI-WE21P-HFE
JAE Electronics
FFC & FPC Connectors 21P RECEPTACLE DOUBLE ROW CONN RCPT 1.25MM 21POS SMD R/A PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,21CONTACTS

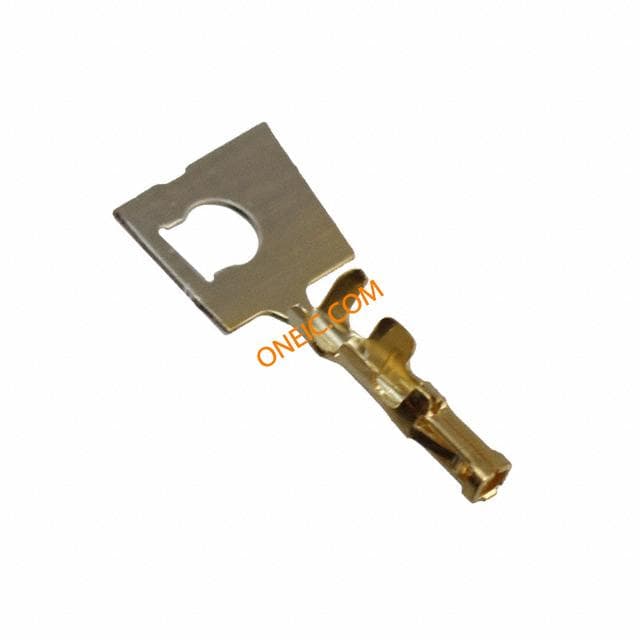

FI-C3-A1-15000
