FI-W15S
| Manufacturer | |
| Description | FFCおよびFPC コネクタ 15P 1.25MM DUAL RW CONN PLUG 1.25MM 15POS CBL MNT PCB TO CABLE PLUG - LCD COMPATIBLE; 1.25MM PITCH; 15 CONTACTS FFC & FPC Connectors 15P 1.25MM DUAL RW PCBTOCABLEPLUG-LCDCOMPATIBLE,1.25MMPITCH,15CONTACTS 15P CRIMP HOUSING 1.25MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 430 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Black | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Termination | Screw | Contact Type | Female Socket |
| Pitch - Post | FEMALE | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Plug |
| Contact Finish | Tin | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polyphenylene Sulfide (PPS) | Length - Overall | 12.25mm |
| Primary Material | BoardtoCable | Pin Hole Diameter | 1.25mm |
| Termination Style | Crimp | Number of Contacts | 15 |
| Contact Termination | Crimp | Number of Positions | 15 |
Product Info
| Note | Contacts Not Provided | Type | CablePlug |
| Series | FI | Features | LCDCompatible,Shielded |
| Manufacturer | FISeries | Product Type | Free Hanging |
Environmental
| Operating Temperature | -40to+80°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Similar Parts

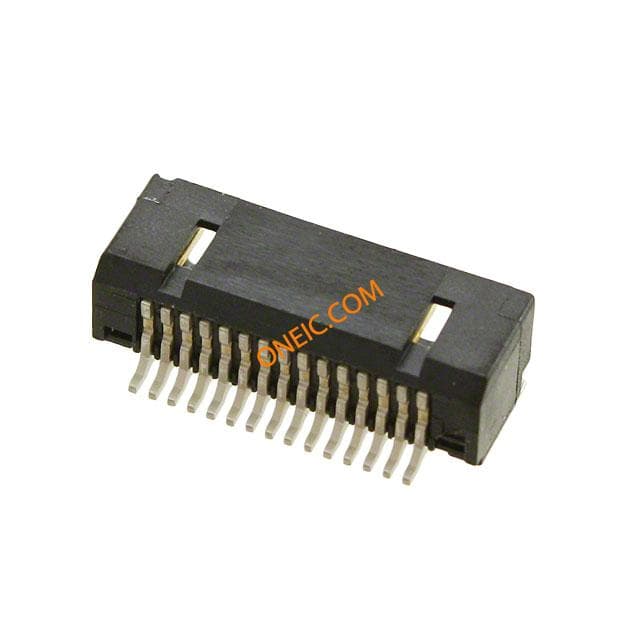

FI-W15P-HFE-E1500
