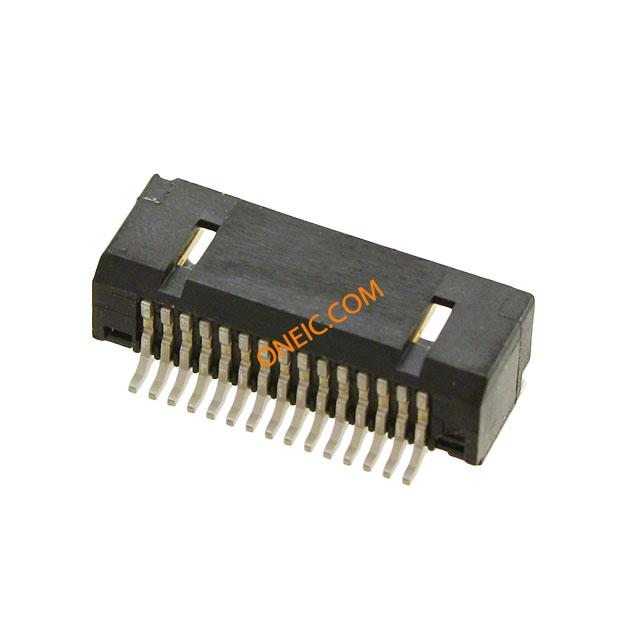

FI-W15P-HFE
| Manufacturer | |
| Description | FFC & FPC Connectors 15p Recep RA SMT LCD Compatible CONN RCPT 1.25MM 15POS SMD R/A PCB TO CABLE RECEPTACLE - LCD COMPATIBLE; 1.25MM PITCH; 15 CONTACTS PCBTOCABLERECEPTACLE-LCDCOMPATIBLE,1.25MMPITCH,15CONTACTS 15P FEMALE HEADER 1,25MM 2R R/A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | FFC & FPC Connectors | Standard Package | 136 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Automotive | NO |
| Leadfree Defin | RoHS-conform | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Black | Pitch | 0.049" (1.25mm) |
| Packaging | Tray | Cable Exit | LowProfile |
| Wire Gauge | 32-28 | Row Spacing | 0.055" (1.40mm) |
| Termination | Solder | Contact Type | Male Pin |
| Length - Pin | 1.45mm | Pitch - Post | FEMALE |
| Mounting Type | Surface Mount, Right Angle | Angle of Throw | Right |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | CopperAlloy |
| Housing Material | Thermoplastic | Length - Overall | 12.35mm |
| Primary Material | BoardtoCable | Pin Hole Diameter | 1.25mm |
| Termination Style | SMD | Number of Contacts | 15 |
| Number of Positions | 15 | Contact Layout, Typical | Bottom Contact |
| Contact Length - Mating | 0.094" (2.40mm) | Contact Material - Plating | R/A |
Product Info
| Type | CableSocket | Gender | Female |
| Series | FI | Features | LCDCompatible,Shielded |
| Terminstyle | SMT | Manufacturer | FISeries |
| Product Type | Board Mount | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -40to+80°C | ||
