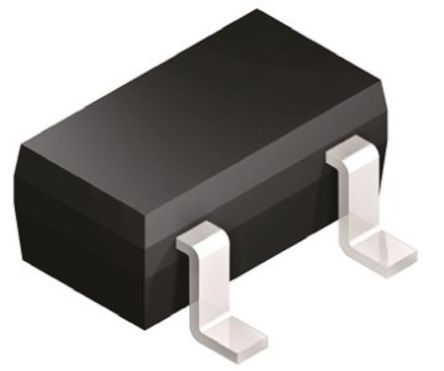

IRLML5103TRPBF
| Manufacturer | |
| Description | MOSFET P-CH 30V 760MA SOT-23 Infineon HEXFET 系列 P沟道 Si MOSFET , 760 mA, Vds=30 V, 3针 SOT-23封装 MOSFET MOSFT P-Ch -0.61A 600mOhm 3.4nC LogLvl |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MOSFET Small Signal | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Fall Time | 16 ns | Vgs (Max) | 20 V |
| Gate Charge | 3.4 nC | Delay Time - ON | 10 ns |
| Output Function | 增强 | Rise Time (Typ) | 8.2 ns |
| Transistor Type | Si | Delay Time - OFF | 23 ns |
| Delay to 1st Tap | 23 ns | Voltage - Supply | 30 V |
| Number of Channels | 1 Channel | Number of Elements | 1 |
| Resistance - Input | 600 mΩ | Vgs(th) (Max) @ Id | 1V |
| Power - Average Forward | 540 mW | Power Dissipation (Max) | 0.54 W |
| Vce(on) (Max) @ Vge, Ic | - 30 V | On-State Resistance (Max) | 600 mOhms |
| Current Transfer Ratio (Min) | 0.44 S | Gate Charge (Qg) (Max) @ Vgs | ±20 V |
| Switch Time (Ton, Toff) (Max) | 10 ns | Input Capacitance (Ciss) (Max) @ Vds | 75 pF@ 25 V |
| Current - Continuous Drain (Id) @ 25degC | 760 mA | ||
Mechanical
| Width | 1.4mm | Height | 1.02mm |
| Length | 3.04mm | Packaging | Reel |
| Mounting Type | 表面贴装 | Mounting Style | SMD/SMT |
| Number of Pins | 3 | Package / Case | SOT-23-3 |
| Package Quantity | SOT-23 | Size / Dimension | 3.04 x 1.4 x 1.02mm |
Product Info
| Series | HEXFET | Function | Y |
| Technology | Si | Channel Type | P |
| Manufacturer | Infineon Technologies | Card Standard | 功率 MOSFET |
| Configuration | Single | ||
Environmental
| Operating Temperature | +150 °C | ||
