19N402
| Manufacturer | |
| Description | Basic / Snap Action Switches 5A SPST Sealed MICROSWITCH, V4, PLUNGER |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 74 Days | Subcategory | Switch Snap Action |
| Product Category | Basic / Snap Action Switches | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365007 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Core | :250V | Differential Travel | :0.2mm |
| Current - Modulation | :5A | Current - Max/Contact | :5A |
| Switch Function/Rating | :On-(On) | Contact Rating (Current) | :5A |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :28V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | :6.35mm | Width | :19.9mm |
| Length | :11.1mm | Weight | 0.024 |
| Pretravel | :1.2mm | Contact Form | SPST |
| Actuator Type | :Plunger | Release Force | :0.27N |
| Terminal Type | :Solder | Package / Case | :Nylon 4.6 (Polyamide 4.6) |
| Material Finish | :- | Operating Force | :2N |
| Termination Style | Solder | Actuator Style/Size | :Plunger |
| Number of Positions | :100000 | Switch Actuation Level | :Snap Action |
| Contact Layout, Typical | :SPDT | Mounting Panel Thickness | :9.53mm |
Product Info
| Series | :19N | ||
Environmental
| Mechanical Life | Obsolete | NEMA Frame Size | :IP67 |
| Switching Cycles | :10000000 | Operating Temperature | :125°C |
Documents & Media
PDF Document
PDF Document
Similar Parts

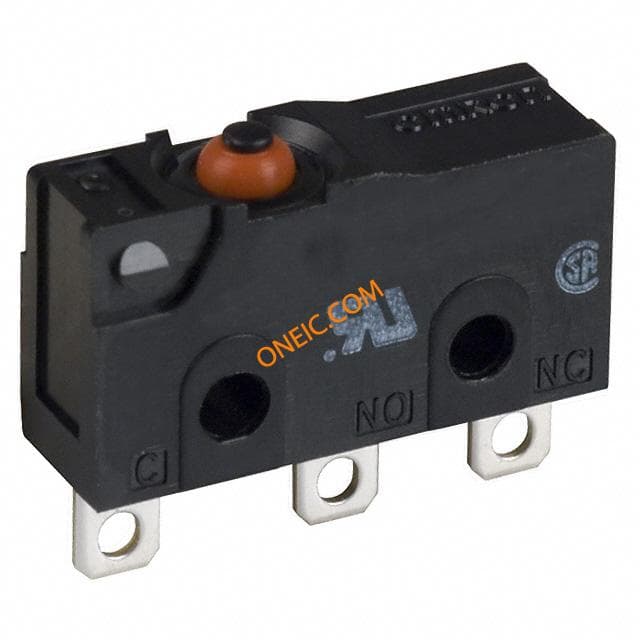

D2SW-3H
Omron Electronics
Basic / Snap Action Switches Pin Plunger Solder Term 3A SW 3A BASIC SEALED SLD TERM 125V SPDT-NO/NC Pin Plunger Microswitch, 3 A @ 125 V ac, 3 A @ 30 V dc MICROSWITCH, V4, PLUNGER 欧姆龙(OMRON) 限位开关 Microswitch; without lever; SPDT; 3A/125VAC; 3A/30VDC; ON-(ON) Snap Action Switch Actuator Type: Plunger (Round) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 3 Amps Micro switch 2 AAC / 3 ADC Plunger 1 change-over (CO), D2SW-3H, Omron Electronic Components Omron 单刀双掷 - 常开/常闭 引脚柱塞 微动开关, 3 A @ 30 V 直流
$13.8115
Details
19N402L18
Illinois Capacitor, Inc.
Details

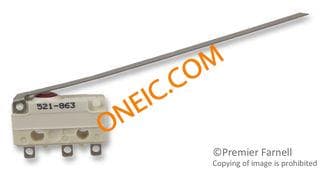

19N402L63
