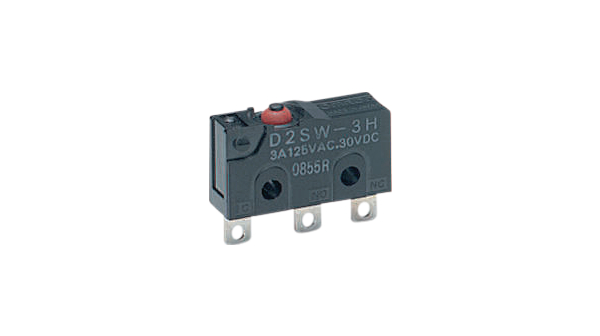

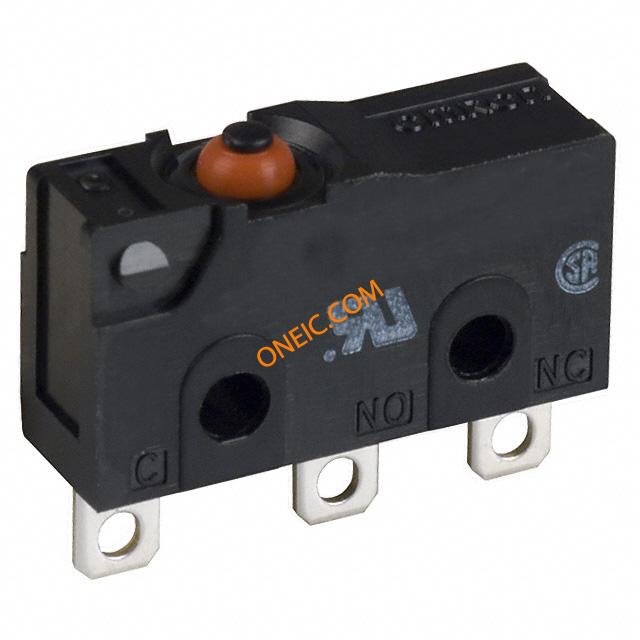

D2SW-3H
| Manufacturer | |
| Description | Basic / Snap Action Switches Pin Plunger Solder Term 3A SW 3A BASIC SEALED SLD TERM 125V SPDT-NO/NC Pin Plunger Microswitch, 3 A @ 125 V ac, 3 A @ 30 V dc MICROSWITCH, V4, PLUNGER 欧姆龙(OMRON) 限位开关 Microswitch; without lever; SPDT; 3A/125VAC; 3A/30VDC; ON-(ON) Snap Action Switch Actuator Type: Plunger (Round) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 3 Amps Micro switch 2 AAC / 3 ADC Plunger 1 change-over (CO), D2SW-3H, Omron Electronic Components Omron 单刀双掷 - 常开/常闭 引脚柱塞 微动开关, 3 A @ 30 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | D2SW3H | Part # Aliases | 418454 959790 |
| Product Category | Basic / Snap Action Switches | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365019 | ||
Electrical
| Circuit | SPDT | Voltage Rating | 125V |
| Switch Function | On-Mom | Switching Voltage | ON-(ON) |
| Contact Resistance | 30mΩ | Differential Travel | 0.004" (0.1mm) |
| Current Rating (Max) | 3A (AC/DC) | Current - Max/Contact | :3mA |
| Insulation Resistance | :100Mohm | Switch Function/Rating | :(Not Applicable) |
| Contact Rating (Current) | 3 A @ 125 V ac, 3 A @ 30 V dc | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | AC contacts rating (at resistance load) | 3 A / 125 VAC |
| DC contacts rating (at resistance load) | 3 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | :19.8mm | Width | :6.4mm |
| Length | :10.6mm | Weight | 0.002 |
| Packaging | Bulk | Pretravel | 0.024" (0.6mm) |
| Lead Style | for soldering | Overtravel | 0.020" (0.5mm) |
| Size - Body | 19.8 x 6.4 x 10.1mm | Contact Form | SPDT |
| Actuator Type | Round (Pin Plunger) | Mounting Type | Chassis Mount |
| Release Force | 30gf | Terminal Type | Solder |
| Operating Force | 180gf | Contact Material | Silver |
| Mounting Feature | :9.5mm | Pitch - Connector | 8.5mm |
| Termination Style | Solder Lug | Actuator Style/Size | :Pin Plunger |
| Number of Positions | :200000 | Switch Actuation Level | :Snap Action |
| Contact Layout, Typical | SPDT-NO/NC | Contact Material - Plating | silver plated |
| Torque - Rated (oz-in / mNm) | 1.77N | ||
Product Info
| Series | D2SW | CAD Drawing | 3D CAD Model |
| Switch Type | microswitch | Electrical Life | 200,000 Cycles |
| Number of Units | 1 | Switch Features | without lever |
| Operating Position | 0.330" (8.4mm) | Contacts Configuration | SPDT |
Environmental
| Seal Rating | IP67 | Mechanical Life | 5,000,000 Cycles |
| NEMA Frame Size | :IP50 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
