HR10A-13P-20PC(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors HR10A PLUG 20P MALE CONN HR10A PLUG 20POS MALE Connector,circular,plug,male,size13,20w Hirose HR10 系列 20路 电缆安装 直向 连接器 , 公触点, 推挽式接合 |
| Category |
Business
| Standard Package | 20 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100 V ac | Connector Impedance | 微型 |
| Current Rating (Max) | 2A | Connector - Voltage Input | Micro |
Mechanical
| Outline | 13mm | Packaging | Bulk |
| Shell Size | 13mm | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Contact Size | 1.0mm | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug for Male Contacts |
| Contact Finish | Silver | Fastening Type | Push-Pull |
| Mounting Style | Through Hole | Connector Usage | Push-Pull |
| Contact Material | Brass, Bronze | Housing Material | Brass, Zinc Alloy |
| Termination Rows | 压接 | Termination Style | Crimp |
| 1st Contact Gender | Male | Number of Contacts | 20 |
| Number of Positions | 20 | Shell Size - Insert | 13 |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | HR10A | Product Type | Connectors |
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Similar Parts
HR10A-13R-20SC(73)
Hirose Connector
Circular Push Pull Connectors HR10A REC 20POS FEM CONN HR10A RECEPT 20POS FEMALE Connector,receptacle,female,size 13,20w Hirose HR10 系列 20路 面板安装 直向 连接器 , 母触点, 推挽式接合
HR10-PC-111
Hirose Connector
Circular Push Pull Connectors MALE CONTACTS GOLD LOOSE CONTACT PIN CRIMP 26-30AWG GOLD HR10-PC-111
HR10A-13J-20SC(73)
Hirose Connector
Circular Push Pull Connectors HR10A JACK 20POS FEM CONN HR10A JACK 20POS FEMALE Connector,circular,jack,female,sz13,20w Hirose HR10 系列 20路 电缆安装 直向 连接器 , 母触点, 推挽式接合
HR10-PC-112
Hirose Connector
Circular Push Pull Connectors MALE CONTACTS SILVER LOOSE CONTACT PIN CRIMP 26-30AWG SILVR HR10 Series Size 1mm 2A Male Circular Connector Contact For Use With HR10 Series, Crimp,Wire size 30 to 26AWG Hirose HR10 系列 2A 压接端接 圆形 连接器 触芯, 使用于HR10 系列, 30 → 26 AWG 线规格
HR10-PC-211
Hirose Connector
Circular Push Pull Connectors MALE CONTACTS GOLD REEL CONTACT CRIMP MALE GOLD AW26 REE CONTACT PIN CRIMP 26-30AWG GOLD
HR10A-13R-20S(74)
Hirose Connector
Circular Push Pull Connectors REC 20P FEM SLD GOLD CONN RECEPT 20POS FMALE SLD GOLD
HR10A-13TR-20SC(73)
Hirose Connector
Circular Push Pull Connectors REC 20POS FEM CRIMP CONN RECEPT 20POS FEMALE CRIMP Hirose HR10 系列 20路 面板安装 直向 连接器 插座 , 母触点, 推挽式接合

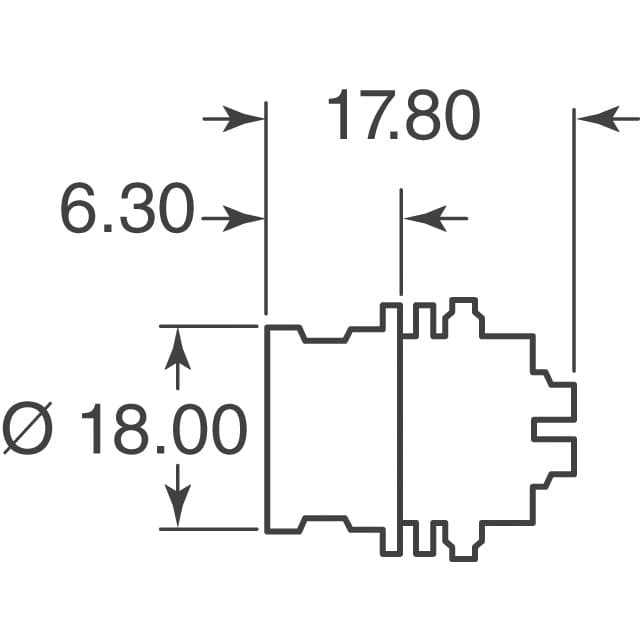

HR10A-13R-20SB(73)
