点击放大查看

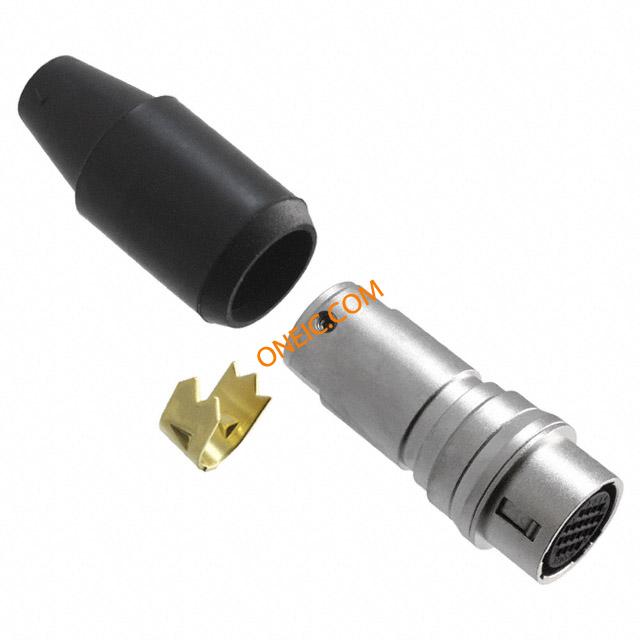

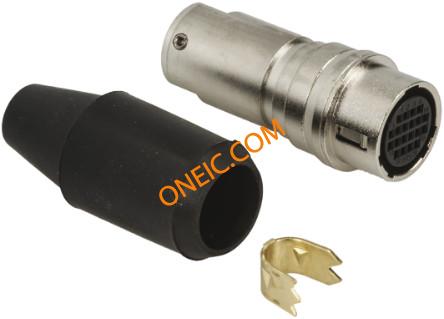

HR10A-13J-20SC(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors HR10A JACK 20POS FEM CONN HR10A JACK 20POS FEMALE Connector,circular,jack,female,sz13,20w Hirose HR10 系列 20路 电缆安装 直向 连接器 , 母触点, 推挽式接合 |
| Category |
Business
| Standard Package | 20 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100 V ac | Connector Impedance | 微型 |
| Current Rating (Max) | 2A | Connector - Voltage Input | Micro |
Mechanical
| Outline | 13mm | Packaging | Bulk |
| Shell Size | 13mm | Wire Gauge | 30 |
| Orientation | Keyed | Shell Style | Jacks |
| Termination | Crimp | Contact Size | 1.0mm |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Connector Type | Jack for Female Contacts |
| Contact Finish | Silver | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Metal |
| Connector Usage | Push-Pull | Contact Material | Beryllium, Phosphor Bronze |
| Housing Material | Brass, Zinc Alloy | Termination Rows | 压接 |
| Termination Style | Crimp | 1st Contact Gender | Female |
| Number of Contacts | 20 | Number of Positions | 20 |
| Shell Size - Insert | 13 | Shell Material, Finish | Brass and Zinc, Nickel Plated |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | HR10A | Product Type | Connectors |
Environmental
| Operating Temperature | +85°C | ||
