HR10A-10TR-12SC(73)

Manufacturer	Hirose Electric Co., Ltd.
Description	Circular Push Pull Connectors REC 12POS FEM CRIMP CONN RECEPT 12POS FEMALE CRIMP Hirose HR10 系列 12路面板安装直向连接器插座 , 母触点, 推挽式接合
Category	Connector SolutionsCircular ConnectorsIndustrial Circular Connectors

对参数有疑问？问 AI 助手

Business

Standard Package

Factory Pack Quantity

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	100 V	Connector Impedance	微型
Current Rating (Max)	2 A

Mechanical

Outline	10mm	Packaging	Bulk
Shell Size	10	Orientation	Keyed
Shell Style	Receptacle	Contact Size	1.0mm
Contact Type	Crimp	Mounting Type	Panel Mount, Bulkhead - Rear Side Nut
Shell Plating	Nickel	Connector Type	Receptacle for Female Contacts
Contact Finish	Gold	Fastening Type	Threaded
Mounting Style	Panel	Shell Material	Hybrid
Contact Material	磷铜	Housing Material	黄铜，锌合金
Termination Rows	压接	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Number of Contacts	12
Number of Positions	12	Shell Size - Insert	10
Shell Material, Finish	Brass and Zinc, Nickel Plated

Product Info

Note	Contacts Not Provided	Series	HR10
Product Type	Connectors

Environmental

Operating Temperature

+85°C

Documents & Media

PDF Document

HR10 Series

PDF Document

e11000216.pdf

Similar Parts

HR10A-10P-12PC(73)

Hirose Connector

Circular Push Pull Connectors 12P PLUG SHELL SZ 10 MALE CRIMP CONN HR10A PLUG 12POS MALE Connector,circular,plug,male,size10,12w Hirose HR10 系列 12路电缆安装直向连接器 , 公触点, 推挽式接合

$101.4288

Details

HR10A-10P-12P(73)

Hirose Connector

Circular Push Pull Connectors 12P PLUG SHELL SZ 10 MALE SIL TERM SOLDR 12 CONTACT PLUG W/PIN INSERT 12 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts, Push-Pull Plug; Connector: circular; HR10; male; PIN:12; push-pull; 2A Cable plug 12-pin Poles=12, HR10A-10P-12P(73), Hirose

$74.1880

Details

HR10-10R-C

Hirose Connector

Circular Push Pull Connectors DUST CAP SHELL SZ 10 CONN DUST CAP FOR 10-12POS RECPT Dust cap,HR10,shell size 10 receptacle Connector Accessories Dust Cap Hirose HR10 系列防尘盖, 尺寸10mm

$7.3168

Details

HR10A-10P-12P(74)

Hirose Connector

Circular Push Pull Connectors PLUG 12POS MALE SOLDER GOLD CONN PLUG 12POS MALE SOLDER GOLD Hirose HR10 系列 12路电缆安装直向连接器 , 公触点, 推挽式接合

$102.5882

Details

HR10A-10TP-12P(73)

Hirose Connector

Circular Push Pull Connectors PLUG 12P MALE SOLDER CONN PLUG 12POS MALE SOLDER 12 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts, Push-Pull Conn Push-Pull M 12 POS Solder ST Cable Mount 12 Terminal 1 Port Hirose HR10 系列 12路电缆安装直向连接器插头 , 公触点, 推挽式接合

$126.8400

Details

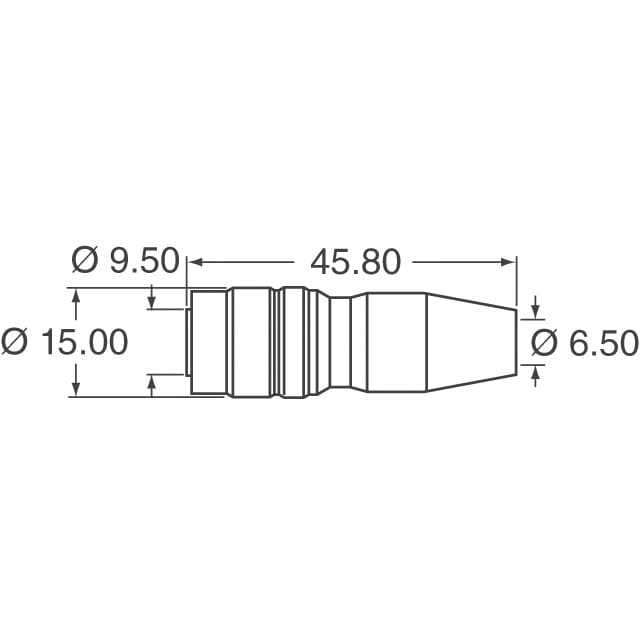

HR10A-10WTP-12P(74)
