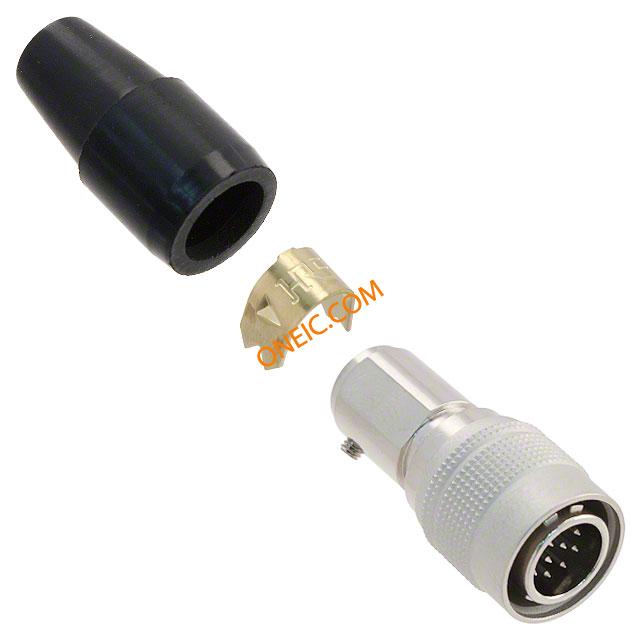

HR10A-10P-12P(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P PLUG SHELL SZ 10 MALE SIL TERM SOLDR 12 CONTACT PLUG W/PIN INSERT 12 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts, Push-Pull Plug; Connector: circular; HR10; male; PIN:12; push-pull; 2A Cable plug 12-pin Poles=12, HR10A-10P-12P(73), Hirose |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100VAC | Number of Poles | 12 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical
| Weight | 0.02 kg | Packaging | Bulk |
| Shell Size | 10 | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Cable End Type | 7 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Silver | Fastening Type | Push-Pull |
| Mounting Style | Cable | Connector Usage | Push-Pull |
| Locking Feature | push-pull | Contact Material | Brass, Bronze |
| Housing Material | Metal | Package Quantity | 40 |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | Male | Number of Contacts | 12 |
| Number of Positions | 12 | Shell Size - Insert | 10 |
| 1st Connector Gender | Male | Shell Material, Finish | Brass and Zinc, Nickel Plated |
| Contact Material - Plating | silver plated | ||
Product Info
| Spg | 40 | Type | Push-Pull |
| Design | Cable plug | Gender | Male |
| Series | HR10 | Features | Cable Clamp |
| Main Purpose | Cable Clamp | Product Type | Connectors |
| Adapter Series | HR10 | Number of Units | 1 |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
