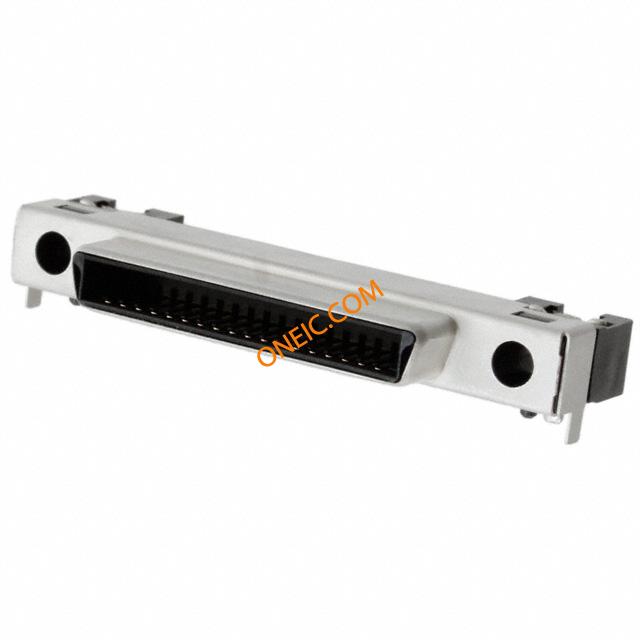

DH60-37P
| Manufacturer | |
| Description | I/O コネクタ 37P R/A RCPT SCREW LOCK CONN RCPT R/A SMT 1MM 37POS Hirose DH Series 29.2mm 37 Way 2 Row Right Angle PCB Socket Surface Mount Wire to Board I/O Connectors 37P R/A RCPT SCREW LOCK Conn SCSI PL 37 POS 1mm Solder RA SMD 37 Terminal 1 Port Hirose DH 系列 2行 37路 直角 29.2mm节距 表面贴装 印刷电路板插座, 线对板 |
| Category |
Business
| Standard Package | 60 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 125 V ac | Current Rating (Max) | 0.5A |
| Voltage - Supply (Min) | 125VAC | ||
Mechanical
| Depth | 12 mm | Pitch | 29.2mm |
| Height | 4.8 mm | Packaging | Tray |
| Termination | Solder | Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle | Contact Finish | Gold |
| Flange Feature | Insert, Threaded (M2.3) | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Connector Style | Outer Shroud Contacts |
| Contact Material | Copper Alloy | Housing Material | Polyamide |
| Length - Overall | 35 mm | Termination Style | PCB |
| Number of Contacts | 37 | Number of Positions | 37 |
Product Info
| Type | SCSI | Gender | Female |
| Series | DH | DELETED | Compliant |
| Features | Board Guide, Shielded | Number of Ports | 1 Port |
Environmental
| Operating Temperature | -25C to 85C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts
DH40-37S
Hirose Connector
I/O コネクタ 37P PLUG UNIT SOLDER TYPE CONN PLUG SLDR 1MM 37POS Plug 37 way solder type,DH series I/O Connectors 37P PLUG UNIT SOLDER TYPE

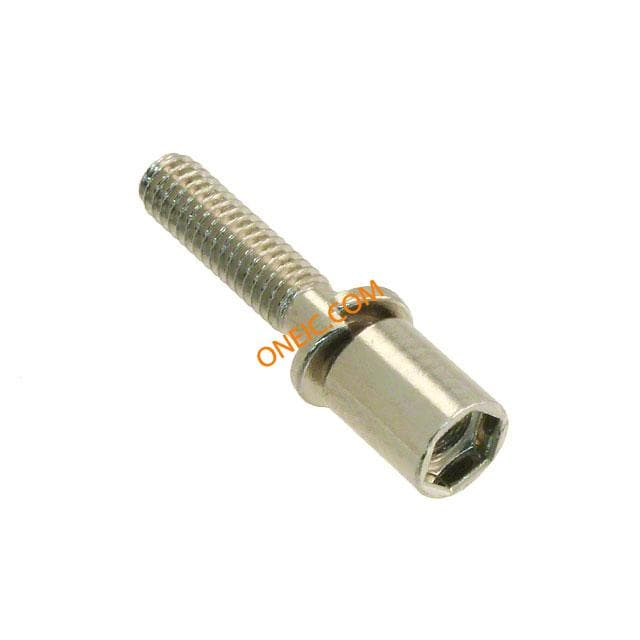

DH-LNA
