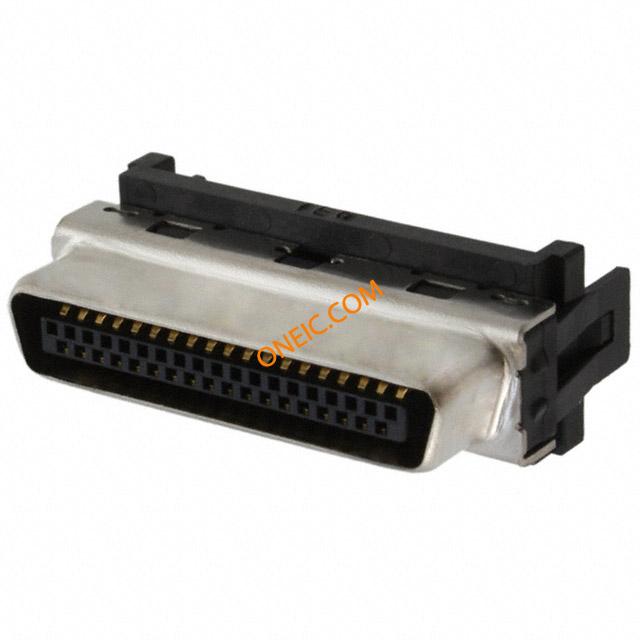

DH40-37S
| Manufacturer | |
| Description | I/O コネクタ 37P PLUG UNIT SOLDER TYPE CONN PLUG SLDR 1MM 37POS Plug 37 way solder type,DH series I/O Connectors 37P PLUG UNIT SOLDER TYPE |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 125 V ac | Number of Poles | 37 |
| Current Rating (Max) | 0.5A | ||
Mechanical
| Depth | 9.55mm | Pitch | 1mm |
| Width | 15.7mm | Length | 24.8mm |
| Packaging | Tray | Termination | Solder |
| Mounting Type | Surface Mount | Connector Type | Plug |
| Contact Finish | Gold | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Connector Style | Center Strip Contacts |
| Contact Material | Copper Alloy | Housing Material | PA |
| Size / Dimension | 24.8 x 15.7 x 9.55mm | Termination Style | Solder |
| Number of Contacts | 37 | Number of Positions | 37 |
Product Info
| Type | SCSI | Gender | Male |
| Series | DH | Features | Shielded |
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Similar Parts

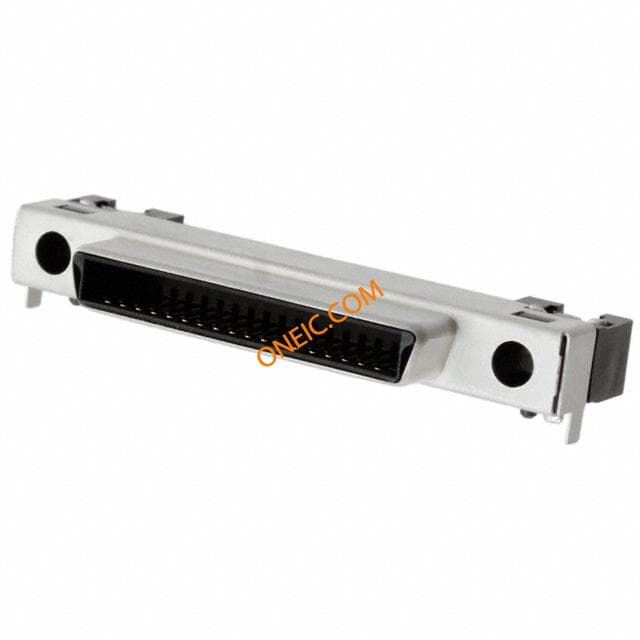

DH60-37P
Hirose Connector
I/O コネクタ 37P R/A RCPT SCREW LOCK CONN RCPT R/A SMT 1MM 37POS Hirose DH Series 29.2mm 37 Way 2 Row Right Angle PCB Socket Surface Mount Wire to Board I/O Connectors 37P R/A RCPT SCREW LOCK Conn SCSI PL 37 POS 1mm Solder RA SMD 37 Terminal 1 Port Hirose DH 系列 2行 37路 直角 29.2mm节距 表面贴装 印刷电路板插座, 线对板

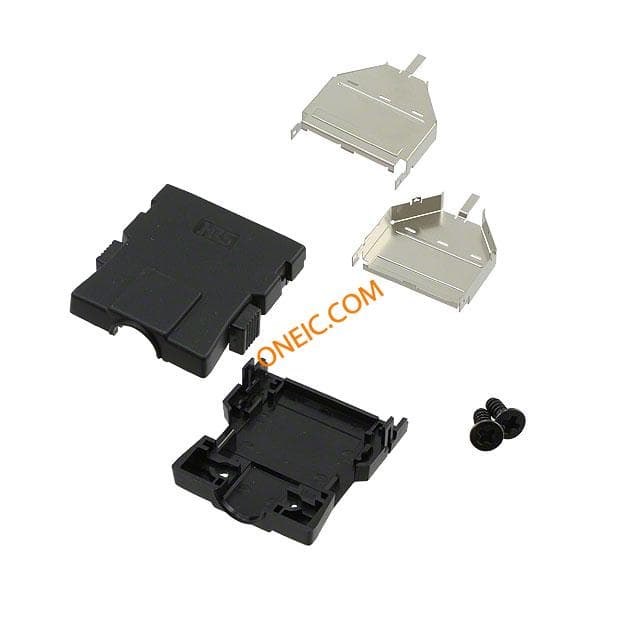

DH-37-CT2B
Hirose Connector
I/O Connectors ONE TOUCH LOCK TYPE COVER PLASTIC BUTTON COVER PLASTIC BUTTON FOR 37POS Cover case for DH 60A, 37 way receptacle Hirose DH 系列 1mm 节距 37 路 直 电缆安装 PCB 壳体
.jpg&w=3840&q=75)
DH-37-CMB(8.8)
Hirose Connector
I/O Connectors CLAMP METAL CABLE CLAMP FOR 8.8MM CABLE Hirose Brass Cable Clamp, 8.8mm Bundle Diameter, 17.6 x 6.1 x 12.4mm DHcableclamp37waycabledia8.8mm Hirose 黄铜 电缆夹, 8.8mm 捆束直径

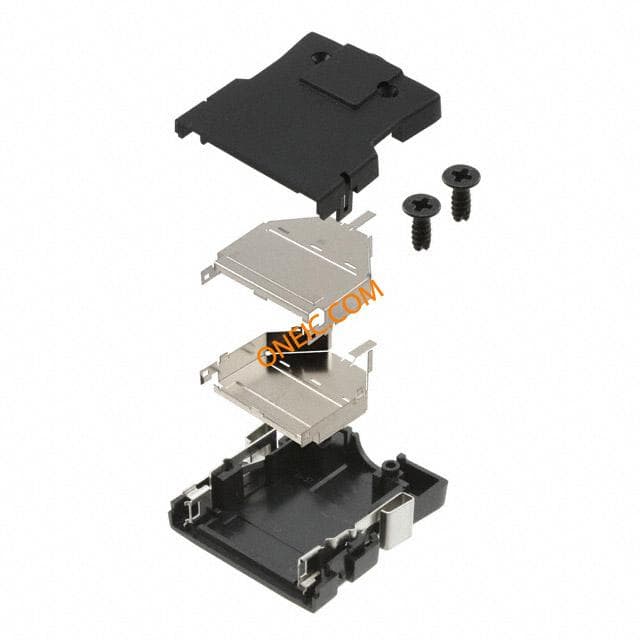

DH-37-CT1B
Hirose Connector
I/O コネクタ ONE TOUCH LOCK TYPE COVER METAL BUTTON COVER METAL BUTTON FOR 37POS Cover case for DH 60A, 37 way receptacle I/O Connectors ONE TOUCH LOCK TYPE COVER METAL BUTTON Hirose DH 系列 1mm 节距 37 路 直 电缆安装 PCB 壳体

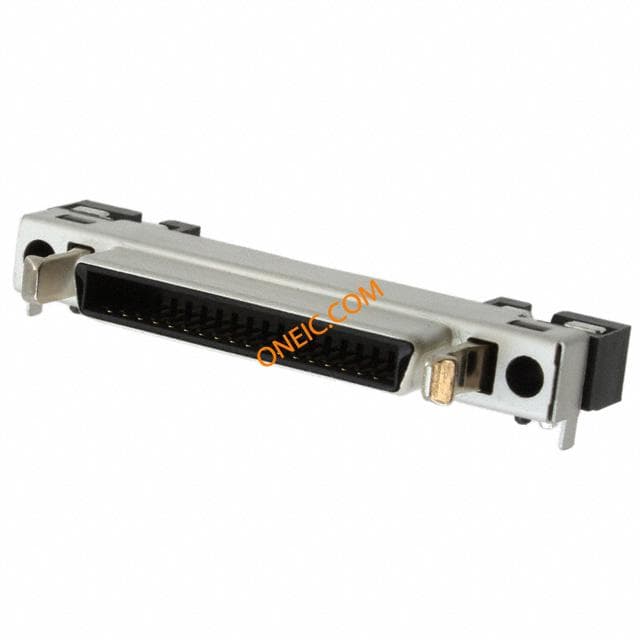

DH60A-37P
