DF1E-4S-2.5C
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 2.5MM 4P SOCKET HOUSING CONN RECEPT HOUSING 4POS 2.5MM DF1E Series 2.5mm 4 Way 1 Row Straight PCB Socket Panel Mount Board to Wire Headers & Wire Housings 2.5MM 4P SOCKET HOUSING Conn Housing SKT 4 POS 2.5mm Crimp ST Cable Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 3A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | White | Depth | 11.8 mm |
| Pitch | 0.098" (2.50mm) | Height | 7.55 mm |
| Packaging | Bulk | Contact Type | Female Socket |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin |
| Fastening Type | Latch Lock | Mounting Style | Wire |
| Number of Rows | 1 | Contact Material | Phosphor Copper |
| Housing Material | Polyamide | Length - Overall | 13 mm |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Number of Positions | 4 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | SKT | Series | DF1E |
| DELETED | Compliant | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
Similar Parts

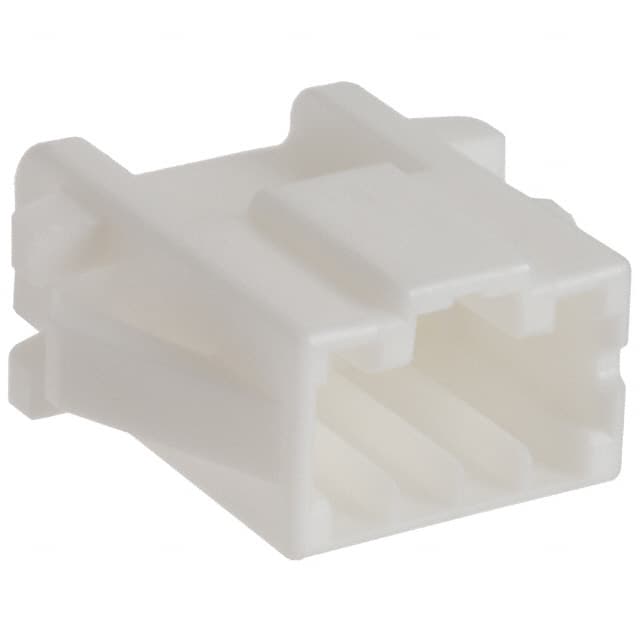

DF1E-4EP-2.5C
Hirose Connector
Headers & Wire Housings 2.5MM INLINE PLUG 4P HOUSING CONN PLUG HOUSING 4POS 2.5MM DF1E Series 2.5mm Pitch 4 Way 1 Row Straight PCB Header, Crimp Termination, 3A

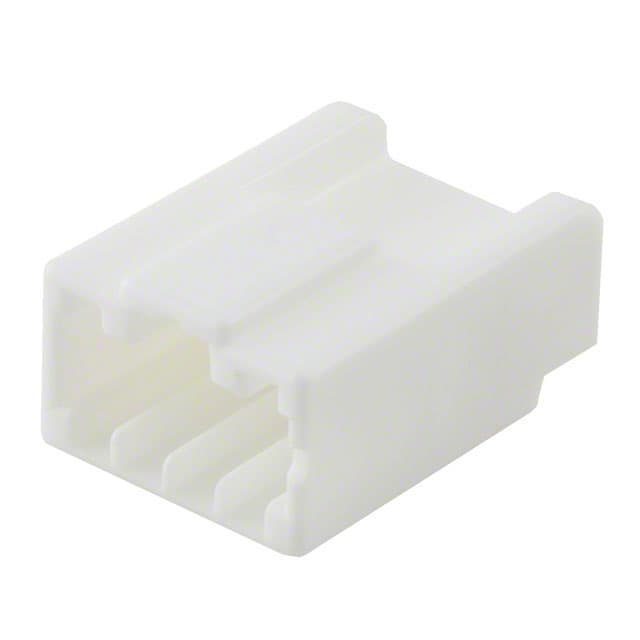

DF1EA-4EP-2.5C
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM INLINE PLUG 4P HSNG NO PNL LOCK CONN PLUG HOUSING 4POS 2.5MM Headers & Wire Housings 2.5MM INLINE PLUG 4P HSNG NO PNL LOCK
DF1EC-4P-2.5DSA(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM VERT HDR 4P PCB TIN W/O BOSS CONN HEADER 4POS 2.5MM STR TIN Hirose DF1E Series 2.5mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5MM VERT HDR 4P PCB TIN W/O BOSS Conn Shrouded Header HDR 4 POS 2.5mm Solder ST Thru-Hole Bag
DF1E-2022SCF
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SCF

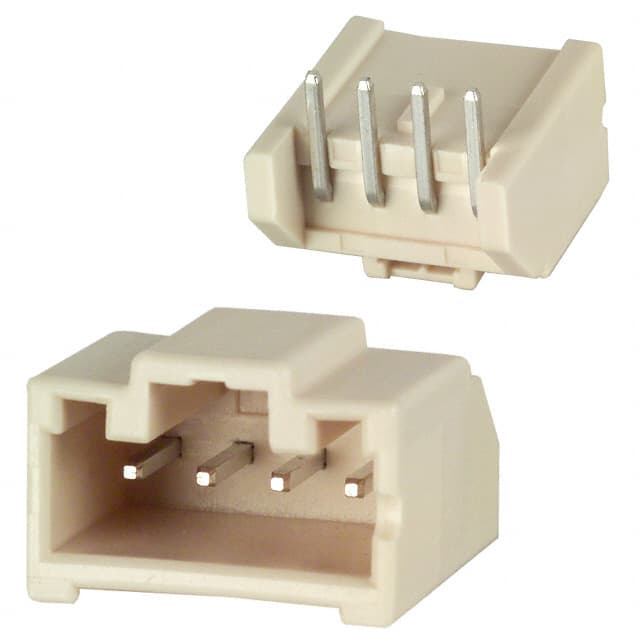

DF1E-4P-2.5DS(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM RA HEADER 4P THRU-HOLE TIN CONN HEADER 4POS 2.5MM R/A TIN Hirose DF1E Series 2.5mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5MM RA HEADER 4P THRU-HOLE TIN Conn Shrouded Header HDR 4 POS 2.5mm Solder RA Thru-Hole Bag
DF1E-2022SC
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SC

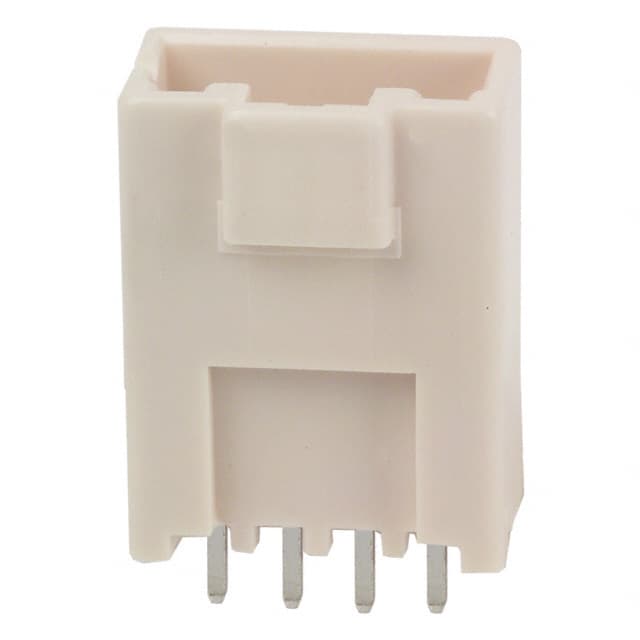

DF1EG-4P-2.5DSA(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM VERT HDR POT 4P PCB TIN W/O BOSS CONN HEADER 4POS 2.5MM STR TIN Headers & Wire Housings 2.5MM VERT HDR POT 4P PCB TIN W/O BOSS

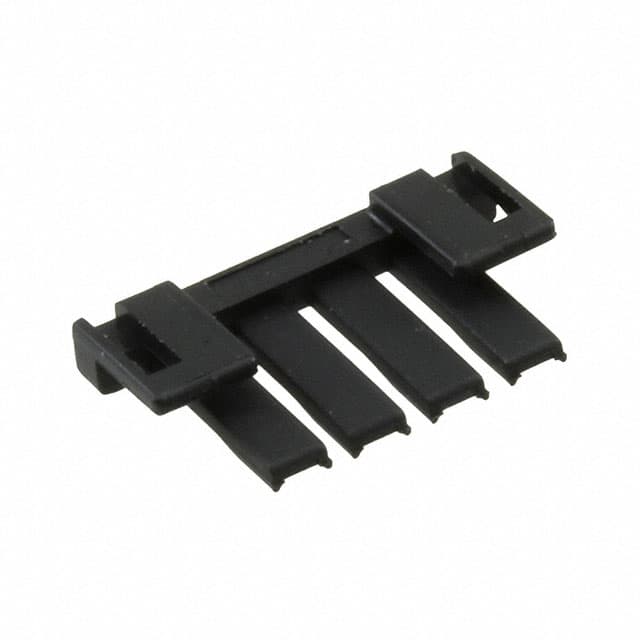

DF1E-4RS/P-2.5
Hirose Connector
Headers & Wire Housings 2.5MM 4P RETAINER CONN RETAINER 4POS 2.5MM connector, nylon, 2.5mm pitch, 4pole, D
DF1E-4P-2.5DS
Hirose Electric Co Ltd
CONN HEADER 4POS 2.5MM R/A TIN
DF1EC-4P-2.5DSA
Hirose Electric Co Ltd
CONN HEADER 4POS 2.5MM STR TIN
DF1EG-4P-2.5DSA
Hirose Electric Co Ltd
CONN HEADER 4POS 2.5MM STR TIN
