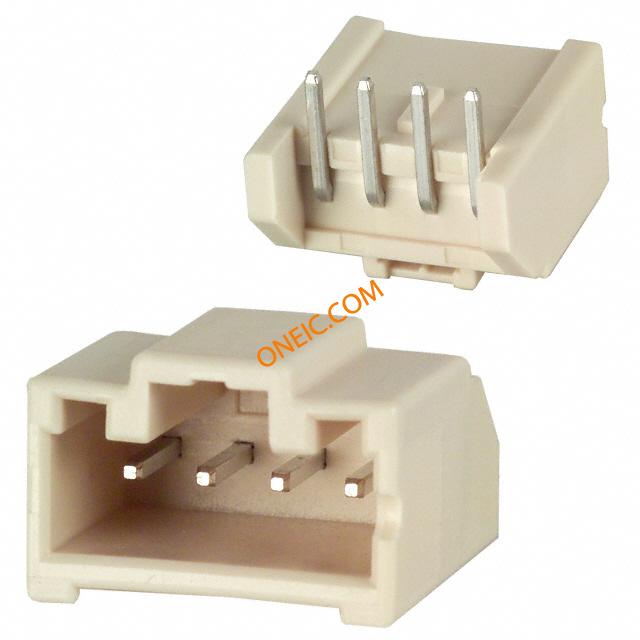

DF1E-4P-2.5DS(05)
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 2.5MM RA HEADER 4P THRU-HOLE TIN CONN HEADER 4POS 2.5MM R/A TIN Hirose DF1E Series 2.5mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5MM RA HEADER 4P THRU-HOLE TIN Conn Shrouded Header HDR 4 POS 2.5mm Solder RA Thru-Hole Bag |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 250 V ac | Contact Resistance | 30 mohm |
| Current Rating (Max) | 3A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Beige | Depth | 13.8 mm |
| Pitch | 0.098" (2.50mm) | Height | 8 mm |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Beige |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polyamide | Length - Overall | 12.5 mm |
| Termination Style | Through Hole | Number of Contacts | 4 |
| Number of Positions | 4 | Contact Length - Mating | 0.177" (4.50mm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | DF1E | DELETED | Compliant |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -35C to 85C | ||
