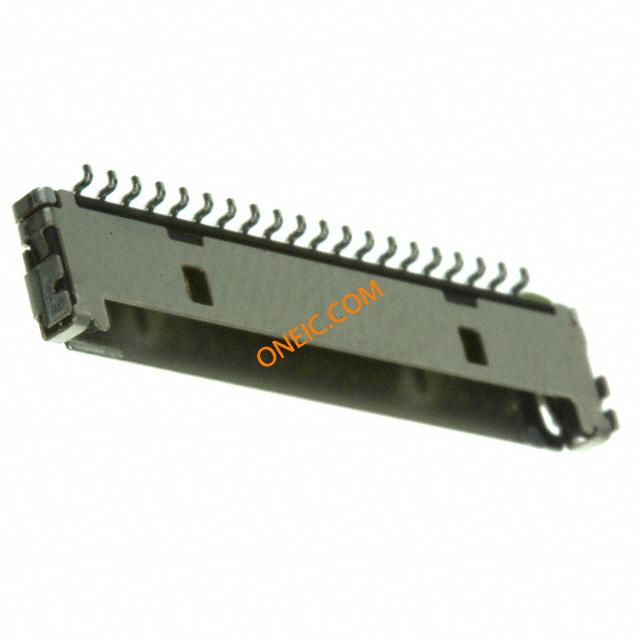

DF19G-20P-1H(54)
| Manufacturer | |
| Description | Headers & Wire Housings 20P TOP BRD MNT RECP HORZ SMT CONN HEADER 20POS 1MM R/A SMD AU Hirose DF19 Series 1mm 20 Way 1 Row Right Angle PCB Socket Surface Mount Shrouded Header Conn Shrouded Header RCP 20 POS 1mm Solder RA SMD Embossed T/R RECEPTACLE20-WAY Hirose DF19 系列 20路 直角 1mm节距 表面贴装 印刷电路板插座, 有罩针座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | H11682DKR | Product Category | Headers & Wire Housings |
| Standard Package | 1,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 100 V ac | Contact Resistance | 30 mohm |
| Current Rating (Max) | 1A | Voltage - Supply (Min) | 100VAC |
Mechanical

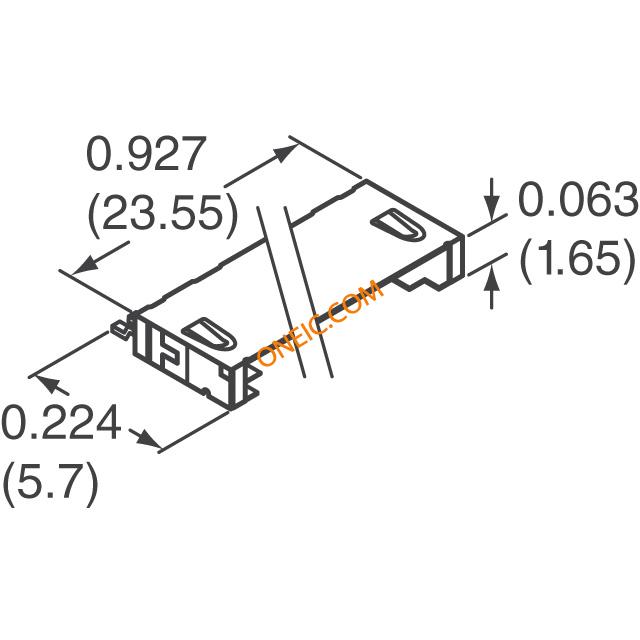

| Color | Black | Depth | 5.7 mm |
| Pitch | 0.039" (1.00mm) | Height | 1.65 mm |
| Packaging | Tape & Reel (TR) | Orientation | 直角 |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Beige | Mounting Type | Surface Mount, Right Angle |
| Connector Type | Receptacle | Contact Finish | Gold |
| Mounting Style | Surface Mount | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide |
| Length - Overall | 23.95 mm | Termination Rows | 焊接 |
| Termination Style | SMD | Number of Contacts | 20 |
| Number of Positions | 20 | ||
Product Info
| Type | Shrouded Header | Gender | RCP |
| Series | DF19 | DELETED | Compliant |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
PDF Document
PDF Document
