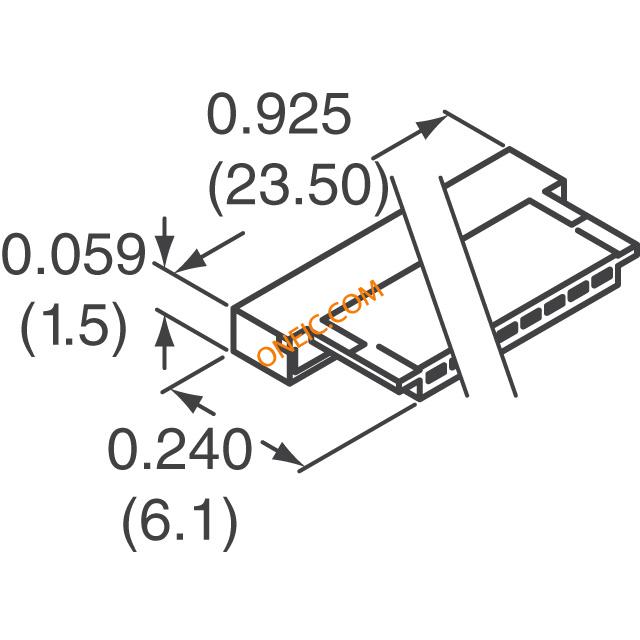

DF19-20S-1C

Manufacturer	Hirose Electric Co., Ltd.
Description	ヘッダ & ワイヤハウジング 20P PLUG TOP BRD MNT NO GROUNDING PLATE CONN SOCKET CRIMP 20POS 1MM SNGL Headers & Wire Housings 20P PLUG TOP BRD MNT NO GROUNDING PLATE Conn Housing RCP 20 POS 1mm Crimp ST Cable Mount
Category	CapacitorsFilm CapacitorsMetallized Polypropylene Film Capacitors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	100 V	Current Rating (Max)	1 A
Insulation Resistance	500 MOhms	Voltage - Supply (Min)	100VAC
Connector - Voltage Input	Crimp

Mechanical

Color	Beige	Depth	6.1 mm
Pitch	0.039" (1.00mm)	Height	1.5 mm
Packaging	Bulk	Weight (g):	1
Contact Form	Female Socket	Contact Type	Female Socket
Housing Color	Beige	Mounting Type	Free Hanging (In-Line)
Connector Type	Plug	Contact Finish	Gold
Number of Rows	1	Contact Material	Phosphor Bronze
Housing Material	Polyamide (PA)	Length - Overall	23.5 mm
Termination Style	IDC	1st Contact Gender	Pin (Male)
Number of Contacts	20	Contact Termination	Crimp
Number of Positions	20

Product Info

Name	塑壳	Note	Contacts Not Provided
Type	Housing	Unit	PCS
Gender	RCP	Series	DF19
DELETED	Compliant	Quantity	5000.0
Product Type	Plugs - PCB	Output Configuration	Free Hanging (In-Line)
Manufacturing Country	日本	Minimum Order Quantity	1

Environmental

Operating Temperature

- 35 C to + 85 C

Documents & Media

PDF Document

DF19 Series

PDF Document

e68500012.pdf

Similar Parts

DF19K-20P-1H(56)

Hirose Connector

Headers & Wire Housings 20P RECP OFFSET MNT 1 MM HIGH HORZ SMT CONN HEADER 20POS 1MM R/A SMD AU

Details

DF19A-2830SCFA

Hirose Connector

Headers & Wire Housings FEM CONTACT GOLD REEL CONN SOCKET 28-30AWG CRIMP GOLD Socket contact AWG 28 - 30 Gold DF19A-2830SCFA Hirose DF19 系列母压接接线端子, 压接, 镀金触点

$0.3128

Details

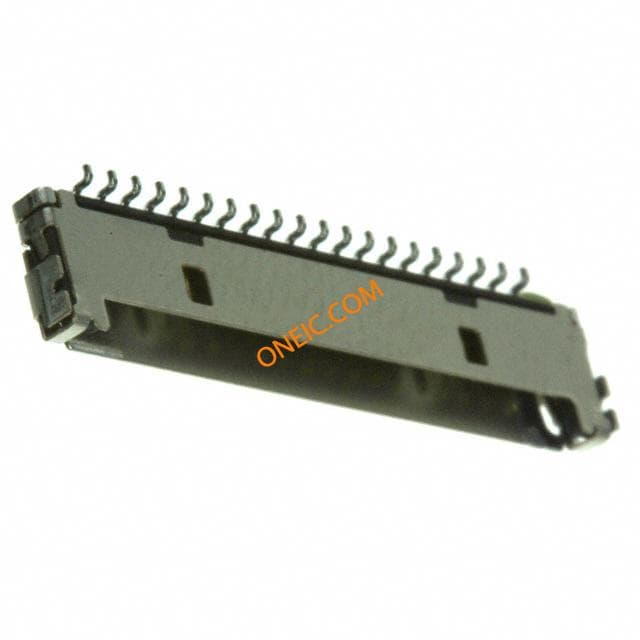

DF19G-20P-1H(54)

Hirose Connector

Headers & Wire Housings 20P TOP BRD MNT RECP HORZ SMT CONN HEADER 20POS 1MM R/A SMD AU Hirose DF19 Series 1mm 20 Way 1 Row Right Angle PCB Socket Surface Mount Shrouded Header Conn Shrouded Header RCP 20 POS 1mm Solder RA SMD Embossed T/R RECEPTACLE20-WAY Hirose DF19 系列 20路直角 1mm节距表面贴装印刷电路板插座, 有罩针座

$5.4196

Details

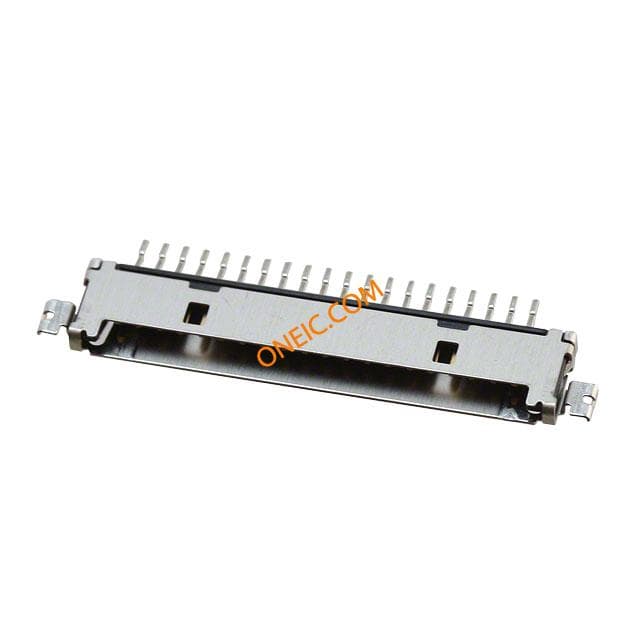

DF19K-20P-1H(54)

Hirose Connector

Headers & Wire Housings 20P RECP OFFSET MNT 1 MM HIGH HORZ SMT CONN HEADER 20POS 1MM R/A SMD AU

$5.1272

Details

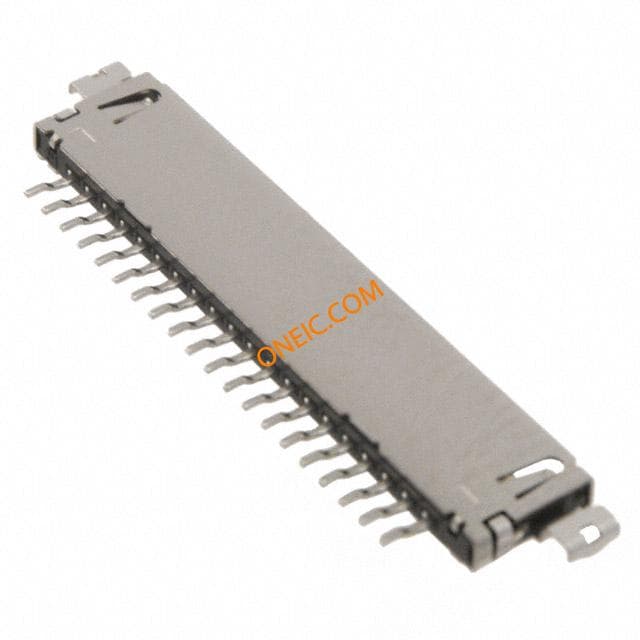

DF19KR-20P-1H(54)
