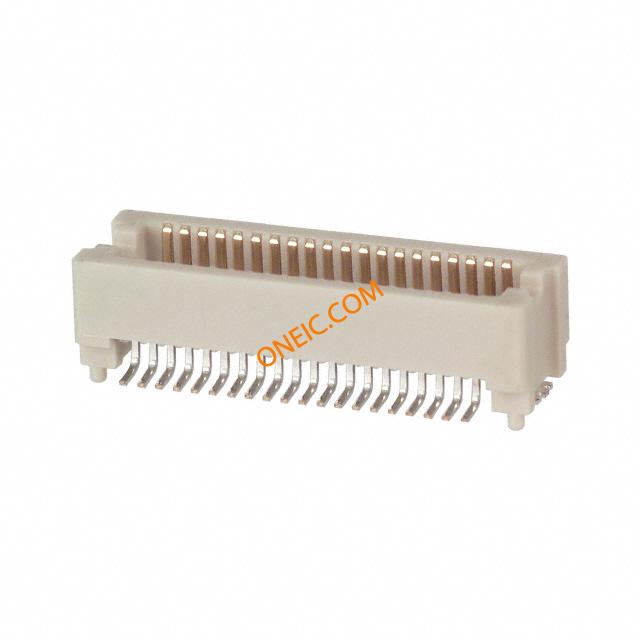

DF15(4.2)-40DP-0.65V(56)
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors 40P HDR 4.2MM HEIGHT W/FITTING AND BOSS CONN HEADER 40POS 4.2MM DUAL SMD Conn Board to Board HDR 40 POS 0.65mm Solder ST SMD Embossed T/R |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | H10455TR | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Contact Resistance | 50 mohm | Current Rating (Max) | 0.3 A |
| Voltage - Supply (Min) | 50VAC | ||

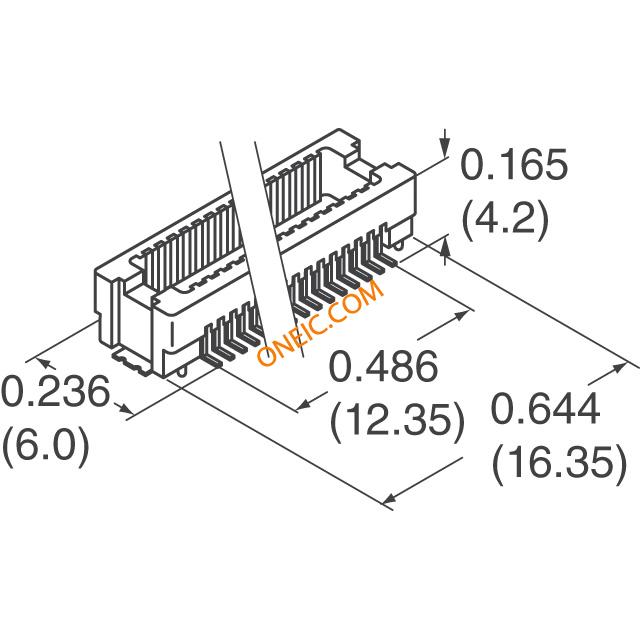

Mechanical
| Depth | 5 mm | Pitch | 0.026" (0.65mm) |
| Height | 4.2 mm | Packaging | Tape & Reel (TR) |
| Termination | Solder | Housing Color | Beige |
| Mounting Type | Surface Mount | Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold | Mounting Style | Surface Mount |
| Number of Rows | 2 | Contact Material | Phosphor Copper |
| Housing Material | Polyamide | Length - Overall | 16.35 mm |
| Height Above Board | 0.165" (4.20mm) | Number of Contacts | 2 |
| Number of Positions | 40 | Height - Seated (Max) | 0.165" (4.20mm) |
| Mated Stacking Heights | 5mm, 6mm | ||
Product Info
| Type | Board to Board | Gender | HDR |
| Series | DF15 | DELETED | Compliant |
| Features | Board Guide, Solder Retention | Main Purpose | Board Guide, Solder Retention |
| Output Configuration | Surface Mount | ||
Environmental
| Mating Cycles | 5mm, 6mm | Operating Temperature | -35C to 85C |
