DF15(0.8)-40DS-0.65V(56)
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors 40P RECP .8MM HEIGHT W/FITTING AND BOSS CONN RECEPT 40POS .8MM DUAL SMD Conn Board to Board RCP 40 POS 0.65mm Solder ST SMD Embossed T/R |
| Category |
Business
| Other Names | H10423TR | Standard Package | 1,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Contact Resistance | 50 mohm | Current Rating (Max) | 0.3 A |
| Voltage - Supply (Min) | 50VAC | ||
Mechanical
| Depth | 4.2 mm | Pitch | 0.026" (0.65mm) |
| Height | 3 mm | Packaging | Tape & Reel (TR) |
| Termination | Solder | Housing Color | Beige |
| Mounting Type | Surface Mount | Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold | Mounting Style | Surface Mount |
| Number of Rows | 2 | Contact Material | Phosphor Copper |
| Housing Material | Polyamide | Length - Overall | 16.35 mm |
| Height Above Board | 0.118" (3.00mm) | Number of Contacts | 2 |
| Number of Positions | 40 | Height - Seated (Max) | 0.118" (3.00mm) |
| Mated Stacking Heights | 4mm, 5mm, 7mm | ||
Product Info
| Type | Board to Board | Gender | RCP |
| Series | DF15 | DELETED | Compliant |
| Features | Board Guide, Solder Retention | Main Purpose | Board Guide, Solder Retention |
| Output Configuration | Surface Mount | ||
Environmental
| Mating Cycles | 4mm, 5mm, 7mm | Operating Temperature | -35C to 85C |
Similar Parts
-40DP-0.65V(50).jpg&w=3840&q=75)
DF15C(3.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 3.2MM HEIGHT W/O FITTING AND BOSS CONN HEADER 40POS 3.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)

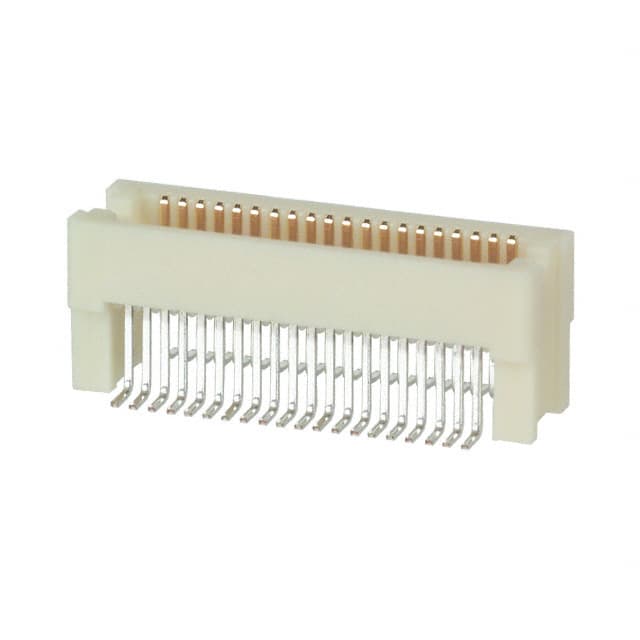

DF15C(6.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 6.2MM HEIGHT W/O FITTING AND BOSS CONN HEADER 40POS 6.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)
DF15(4.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 4.2MM HEIGHT W/FITTING AND BOSS CONN HEADER 40POS 4.2MM DUAL SMD Conn Board to Board HDR 40 POS 0.65mm Solder ST SMD Embossed T/R
-40DP-0.65V(56).JPG&w=3840&q=75)

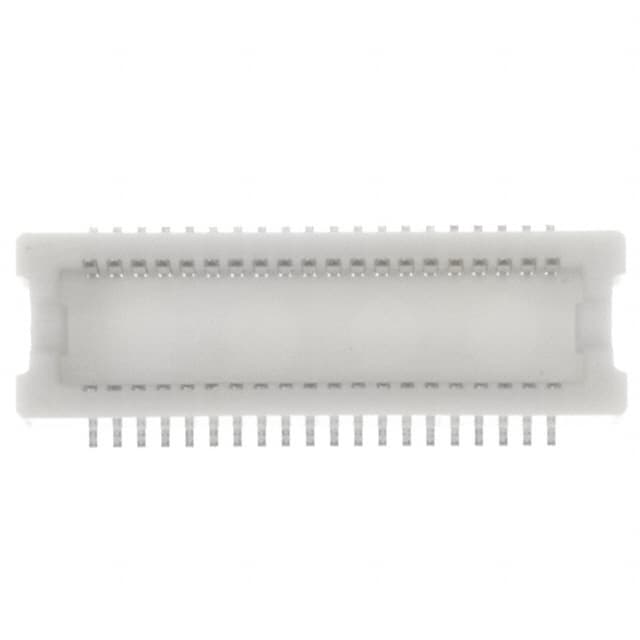

DF15A(3.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 3.2MM HEIGHT NO FITTING, W/BOSS CONN HEADER 40POS 3.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)

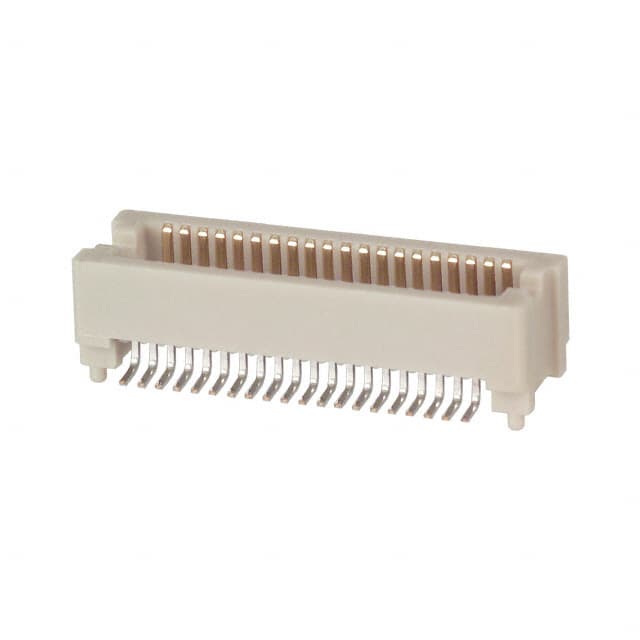

DF15A(4.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 4.2MM HEIGHT NO FITTING, W/BOSS CONN HEADER 40POS 4.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)
DF15A(6.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 6.2MM HEIGHT NO FITTING, W/BOSS CONN HEADER 40POS 6.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)
DF15B(6.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 6.2MM HEIGHT W/FITTING, NO BOSS CONN HEADER 40POS 6.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)
DF15(6.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 6.2MM HEIGHT W/FITTING AND BOSS CONN HEADER 40POS 6.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)
DF15B(3.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 3.2MM HEIGHT W/FITTING, NO BOSS CONN HEADER 40POS 3.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)
DF15C(4.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 4.2MM HEIGHT W/O FITTING AND BOSS CONN HEADER 40POS 4.2MM DUAL SMD
-40DP-0.65V(50).jpg&w=3840&q=75)

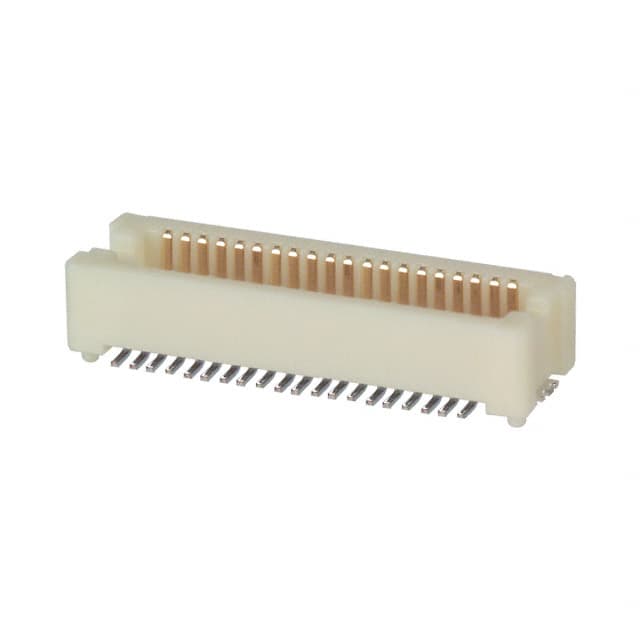

DF15(3.2)-40DP-0.65V(56)
Hirose Connector
Board to Board & Mezzanine Connectors 40P HDR 3.2MM HEIGHT W/FITTING AND BOSS CONN HEADER 40POS 3.2MM DUAL SMD Conn Board to Board HDR 40 POS 0.65mm Solder ST SMD Embossed T/R
-40DP-0.65V(50).jpg&w=3840&q=75)

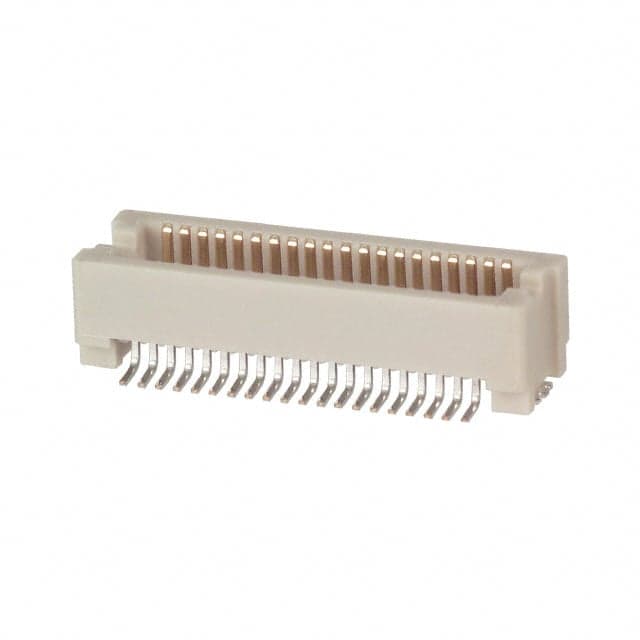

DF15B(4.2)-40DP-0.65V(56)
