DF11-28DS-2C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2MM RECEPT HOUSING 28P DUALROW CRIMP CONN SOCKET 28POS 2MM DUAL CRIMP Conn Housing PL 28 POS 2mm Crimp ST Panel Mount Bag Crimp housing Pitch2 mm Poles 2 x 14 DF11, DF11-28DS-2C, Hirose
Category	Connector SolutionsRectangular ConnectorsFPC/FFC Rectangular Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Material Flammability Rating

UL 94 V-0

Electrical

Voltage Rating	250 V	Number of Poles	2 x 14
Current Rating (Max)	2 A	Voltage - Supply (Min)	250VAC
Connector - Voltage Input	Crimp

Mechanical

Color	Black	Depth	7.3 mm
Pitch	0.079" (2.00mm)	Height	5 mm
Packaging	Bulk	Body Color	26
Wire Gauge	22-30 AWG	Row Spacing	0.079" (2.00mm)
Contact Form	Female Socket	Contact Type	Female Socket
Lead Spacing	0.079" (2.00mm)	Housing Color	Black
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Number of Rows	2	Housing Material	Polyamide
Length - Overall	30 mm	Termination Style	Through Hole
1st Contact Gender	Socket (Female)	Number of Contacts	28
Contact Termination	Crimp	Number of Positions	28

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	PL	Series	DF11
DELETED	Compliant	Amplifier Type	30
Connection Method	Wire-Board	Output Configuration	Free Hanging (In-Line)

Environmental

Operating Temperature

-30C to 85C

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf

Similar Parts

DF11-30SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 30AWG REEL CONN SOCKET 30AWG CRIMP TIN

$0.3556

Details

DF11G-28DP-2V(50)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 28P DR SMT GLD CONN HEADER 28POS 2MM SMD GOLD

Details

DF11-2428SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 24-28AWG REEL CONN SOCKET 24-28AWG CRIMP TIN

$0.0572

Details

DF11-30SCFA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 30AWG REEL CONN SOCKET 30AWG CRIMP GOLD CONN SOCKET 30AWG CRIMP TIN Headers & Wire Housings FEMALE CONTACT GLD 30AWG REEL DF11-30SCFA

$0.6583

Details

DF11-2428SCFA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 24-28AWG REEL CONN SOCKET 24-28AWG CRIMP GOLD Headers & Wire Housings FEMALE CONTACT GLD 24-28AWG REEL

$0.6583

Details

DF11-22SC

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT TIN 22AWG LOOSE CONN SOCKET 22AWG CRIMP TIN DF11 Crimp terminal AWG 22 Headers & Wire Housings FEMALE CONTACT TIN 22AWG LOOSE DF11-22SC DF11CrimpterminalAWG22 Crimp socket AWG22 Female 22 AWG, DF11-22SC, Hirose Hirose DF11 系列母压接接线端子, 压接, 镀锡触点

$0.2856

Details

DF11-28DP-2DSA(01)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 28P DR THRU-HOLE GLD CONN HEADER 28POS 2MM PCB GOLD

$9.0600

Details

DF11GZ-28DP-2V(20)

Hirose Connector

Headers & Wire Housings 2MM V PCB HEADER 28P DR SMT TIN CONN HEADER 28POS 2MM SMD TIN

$6.0996

Details

DF11-28DP-2V(57)

Hirose Connector

Headers & Wire Housings 28P STRT HEADER BD MNT,SMT AU CONN HEADER 28POS 2MM SMD GOLD

Details

DF11-28DP-2DS(24)

Hirose Connector

Headers & Wire Housings 2MM R/A PCB HEADER 28P DR THRU-HOLE TIN CONN HEADER 28POS 2MM RT ANG TIN

$4.5316

Details

DF11-22SCF

Hirose Connector

Headers & Wire Housings FEMALE CONTACT TIN 22AWG REEL CONN SOCKET 22AWG CRIMP TIN

$0.1931

Details

DF11-30SCA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 30AWG LOOSE CONN SOCKET 30AWG CRIMP GOLD Crimp Contact gold plated 30 AWG loose Headers & Wire Housings FEMALE CONTACT GLD 30AWG LOOSE DF11-30SCA Hirose DF11 系列母压接接线端子, 压接, 镀金触点

$117.0912

Details

DF11-2428SCA

Hirose Connector

ヘッダ & ワイヤハウジング FEMALE CONTACT GLD 24-28AWG LOOSE CONN SOCKET 24-28AWG CRIMP GOLD Crimp contact,socket,DF11,AWG 24-28 Headers & Wire Housings FEMALE CONTACT GLD 24-28AWG LOOSE DF11-2428SCA Hirose DF11 系列母压接接线端子, 压接, 镀金触点

$0.8548

Details

DF11-28DP-2DSA(24)

Hirose Connector

Headers & Wire Housings 28P STRT HEADER BD MNT,THRU HL SN CONN HEADER 28POS 2MM PCB TIN Hirose DF11 Series 2mm Pitch 28 Way 2 Row Straight PCB Header, Solder Termination, 2A Pin header, straight Pitch2 mm Poles 2 x 14 DF11, DF11-28DP-2DSA(24), Hirose Hirose DF11 系列 2mm节距 28路 (2排) 直 PCB 针座, 焊接端接, 2A DF11-28DP-2DSA(08), 通孔

$5.1845

Details

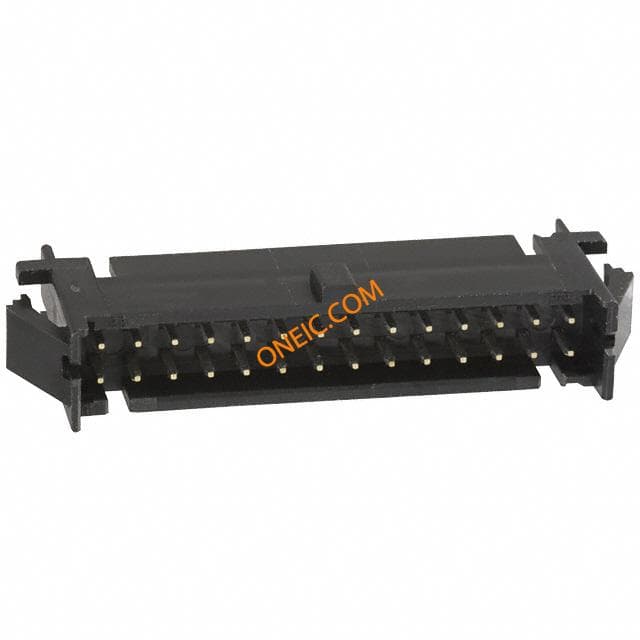

DF11-28DEP-2A
