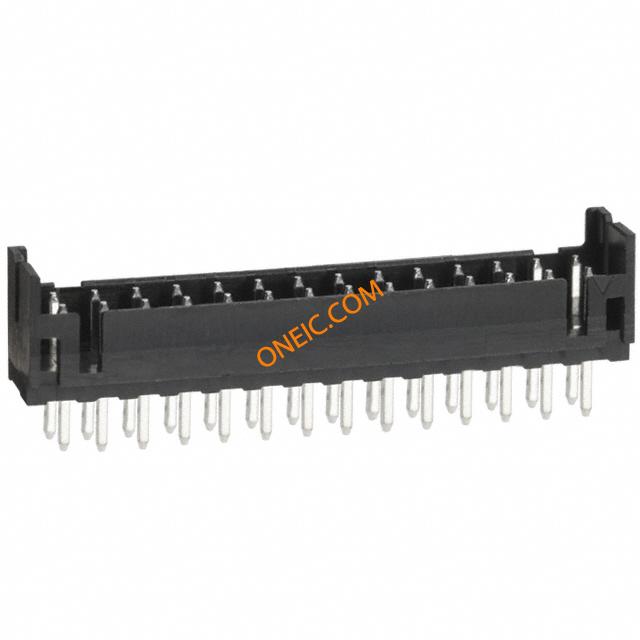

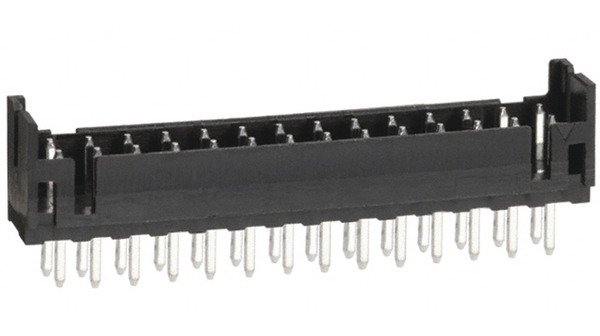

DF11-28DP-2DSA(24)
| Manufacturer | |
| Description | Headers & Wire Housings 28P STRT HEADER BD MNT,THRU HL SN CONN HEADER 28POS 2MM PCB TIN Hirose DF11 Series 2mm Pitch 28 Way 2 Row Straight PCB Header, Solder Termination, 2A Pin header, straight Pitch2 mm Poles 2 x 14 DF11, DF11-28DP-2DSA(24), Hirose Hirose DF11 系列 2mm节距 28路 (2排) 直 PCB 针座, 焊接端接, 2A DF11-28DP-2DSA(08), 通孔 |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 16 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 V 交流 | Number of Poles | 2 x 14 |
| Current Rating (Max) | 2A | ||
Mechanical
| Color | Black | Pitch | 0.079" (2.00mm) |
| Packaging | Tube | Body Color | 26 |
| Orientation | 直 | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Form | Male Pin |
| Contact Type | Male Pin | Lead Spacing | 0.079" (2.00mm) |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Detent Lock |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polyamide (PA/Nylon) | Termination Rows | 焊接 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Height Above Board | 0.118" (3.00mm) | Number of Contacts | 28 |
| Number of Positions | 28 | 1st Connector Gender | Male |
| Contact Length - Mating | 0.118" (3.00mm) | Number of Positions/Bay/Row | All |
Product Info
| Type | Shrouded Header | Series | DF11 |
| Coverage | 覆盖 | Product Type | Receptacles / Sockets - Housings |
| Amplifier Type | 30 | Connection Method | Wire-Board |
| Output Configuration | Through Hole | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -30...+85 °C | ||
Documents & Media
Similar Parts
DF11Z-28DS-2V(20)
Hirose Connector
Headers & Wire Housings 2MM V PCB RECEPTACLE 28P DR SMT TIN CONN RECEPT 28POS 2MM SMD TIN
.jpg&w=3840&q=75)

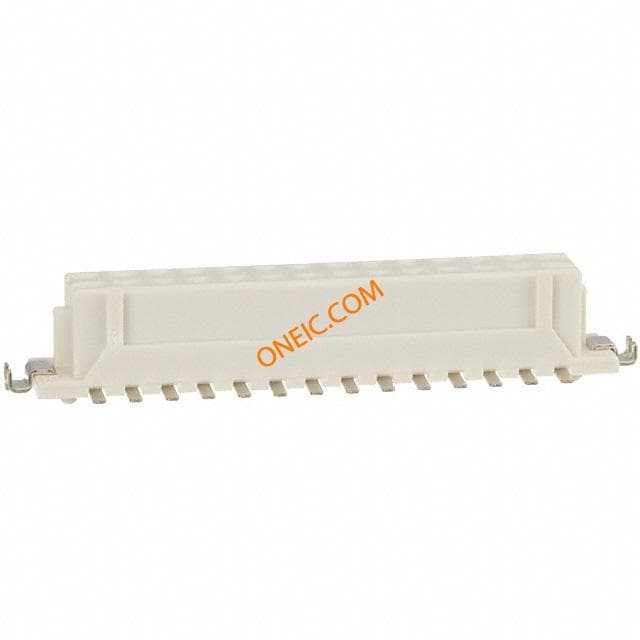

DF11-28DS-2V(50)
Hirose Connector
Headers & Wire Housings Obsolete CONN RECEPT 28POS 2MM SMD GOLD

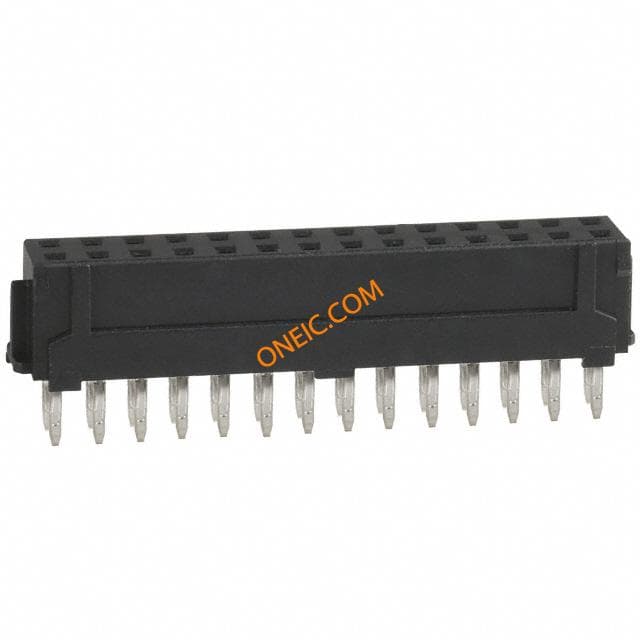

DF11-28DS-2DSA(06)
