M20-9990245
| Manufacturer | |
| Description | HARWIN M20-99 Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 02 SIL VERTICAL PIN HEADER GOLD HT Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag HEADER, THT, 2.54MM, 1ROW, 2WAY BOARD TO BOARD CONNECTOR, HEADER, 2POS, 1ROW M20HDR,PIN,SIL,VERT,2W HARWIN M20 系列 2.54mm节距 2路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔 |
| Category |
Business
| Product Category | Headers & Wire Housings | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | :750V | Voltage - Working | :750V |
| Contact Resistance | 25 mohm | Current Rating (Max) | 3A |
| Insulation Resistance | :10000Mohm | Voltage - Rated AC (Phase to Phase) | :750V |
Mechanical
| Depth | 2.54 mm | Pitch | 2.54mm |
| Height | 8.64 mm | Weight | 0.011 |
| Packaging | Bag | Termination | Solder |
| Lead Spacing | :2.54mm | Housing Color | Black |
| Mounting Type | Straight | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Nylon 6T |
| Length - Overall | 5.08 mm | Termination Style | Through Hole |
| Number of Contacts | 2 | Contact Termination | :Through Hole Vertical |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | M20-99 | Product Type | Headers |
Environmental
| Mating Cycles | :300 | Operating Temperature | -40C to 105C |
Documents & Media
Similar Parts
M7687-05
Harwin
Headers & Wire Housings 10mm JUMPER SOCKET W/HNDL BLUE JUMPER SOCKET, 10MM, BLUE 10mmJumperSocketwithhandleBlue HARWIN 蓝色 2路 2.54mm节距 跳线母座
M7565-05
HARWIN

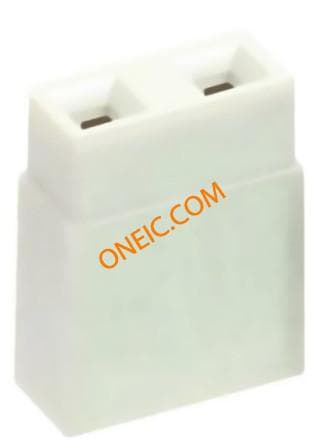

Open Top Jumper Socket light Grey Headers & Wire Housings JUMPER SOCKET LT GREY JUMPER SOCKET, GREY, 2.54MM, 2WAY OpenTopJumperSocketlightGrey HARWIN 灰色 2路 2.54mm节距 跳线母座
