21038822425
| Manufacturer | |
| Description | Circular Metric Connectors PFT M12 CRMP SHIELD D-DCODE 4POL FEM Conn Circular 4 POS Crimp ST Panel Mount 4 Terminal 1 Port CONN HSG RCPT 4POS PNL MNT SKT 4 Pole Female Straight Panel Mount Industrial & Automation Circular Connector Han M12 Crimp: PFT M12 crimp shielded D-cod.4pol.female Harting 4路 面板安装 直向 连接器 插座 |
| Category |
Business
| Other Names | 1195-3278 | Part # Aliases | 021 021-03-882-2425 03 2425 882 |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 250 V | Connector Impedance | M12 |
| Current Rating (Max) | 4 A | ||
Mechanical
| Depth | 20 | Packaging | Bulk |
| Cable Exit | No | Orientation | D |
| Shell Style | Receptacle | Termination | Crimp |
| Weight (g): | 42.00000 | Contact Type | Crimp |
| Mounting Type | Panel Mount | Cable Diameter | 4.5 mm to 8.8 mm |
| Connector Type | Receptacle for Female Contacts | Fastening Type | Threaded |
| Mounting Style | Cable | Length - Overall | 38 |
| Termination Rows | 压接 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | M12-4 |
Product Info
| Note | Contacts Not Provided | Type | Circular |
| Gender | RCP | Series | M12 |
| Features | Shielded, Strain Relief | Product Type | Connectors |
Environmental
| Seal Rating | IP 65, IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
Documents & Media
Similar Parts
21038821406
HARTING
Standard Circular Connector CIRCULAR CONNECTOR CONN HSG PLUG 4POS CABLE PIN Han M12 Crimp: Circular Connector M12 crimp male D-code
09670005476
Harting Technology Group
Contact SKT Crimp ST Cable Mount Individual CONTACT SKT 22-26AWG GOLD CRIMP Turned contact 22-26 AWG F D-Sub Contacts D SUB FE turned cont AWG 22-26 PL1 DSUBFEturnedcontactAWG22-26_PL1 Harting D-Sub Standard 系列 母 压接端接 圆形 连接器 触芯, 使用于D-sub 连接器, 26 → 22 AWG 线规格

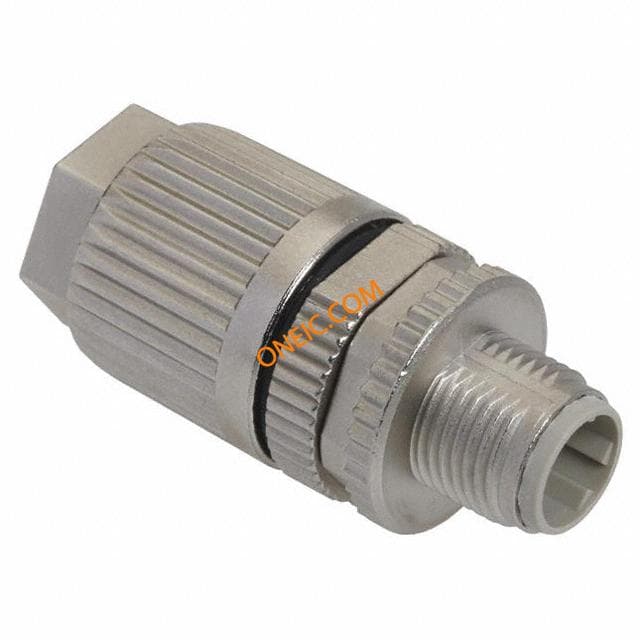

21038821405
